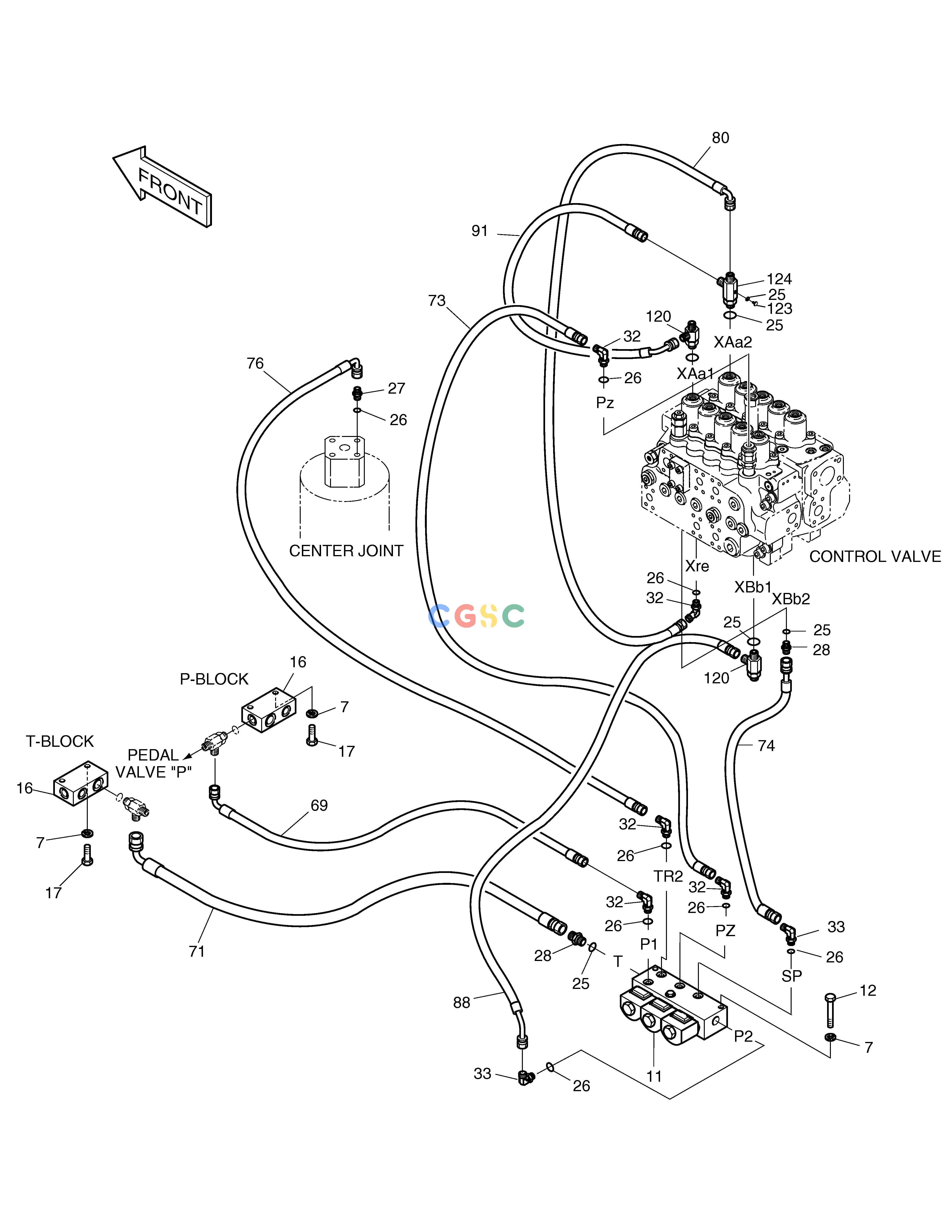

斗山零件查询PILOT PIPING(3) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
334 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |
PILOT PIPING
|
|
| 11. |
K1002281
|
[1] |
SOLENOID VALVE
|
|
| 12. |
S0558953
|
[2] |
BOLT
|
|
| 120. |
2181-1951D49
|
[2] |
TEE PFO3/8-2PF3/8
|
|
| 123. |
2181-2047A
|
[1] |
PLUG
|
|
| 124. |
DS2462002
|
[1] |
TEE PFO3/8-PF3/8-PF1/4
|
|
| 16. |
2423-1470
|
[2] |
BLOCK
|
|
| 17. |
S0558653
|
[4] |
BOLT M10X1.5X55
|
|
| 25. |
S8000141
|
[5] |
O-RING
|
|
| 26. |
S8000111
|
[8] |
O-RING
|
|
| 27. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 32. |
2181-1702D4
|
[5] |
ELBOW
|
|
| 33. |
2181-1702D3
|
[2] |
ELBOW
|
|
| 69. |
2184-1046D175
|
[1] |
HOSE
|
|
| 7. |
S5102603
|
[6] |
. WASHER
|
|
| 71. |
2184-1036D271
|
[1] |
HOSE PF3/8-1700L
|
|
| 73. |
2184-1045D165
|
[1] |
HOSE PF1/4-900L
|
|
| 74. |
2184-1046D99
|
[1] |
HOSE PF3/8-700L
|
|
| 76. |
2184-1046D107
|
[1] |
HOSE PF1/4-1250L
|
|
| 80. |
2184-1046D83
|
[1] |
HOSE PF1/4-830L
|
|
| 88. |
2184-1045D199
|
[1] |
HOSE PF3/8-950L
|
|
| 91. |
2184-1046D99
|
[1] |
HOSE PF3/8-700L
|
|
