斗山零件查询PILOT PIPING(4) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
165 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |

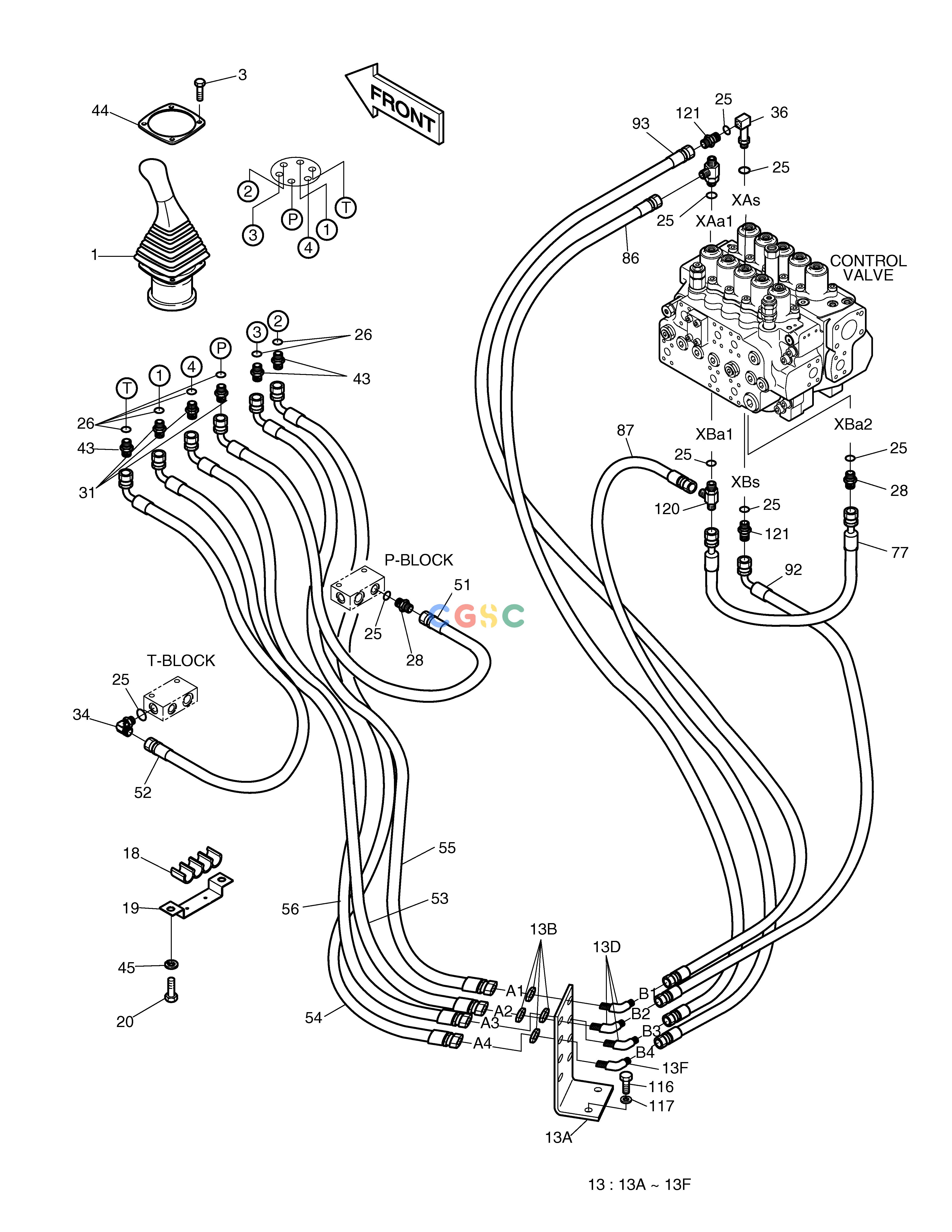

PILOT PIPING
|
|
| 1. |
420-00342B
|
[1] |
REMOTE CONTROL VALVE(L.H)
|
|
| 116. |
S0515253
|
[2] |
. BOLT
|
|
| 117. |
S5102703
|
[2] |
WASHER
|
|
| 120. |
2181-1951D49
|
[1] |
TEE PFO3/8-2PF3/8
|
|
| 121. |
181-00144D5
|
[2] |
ADAPTER
|
|
| 13. |
181-00706
|
[1] |
CONNECTOR SUB ASS'Y
|
|
| 13A. |
159-00210
|
[1] |
PLATE
|
|
| 13B. |
121-00010D1
|
[4] |
NUT
|
|
| 13D. |
181-00161D1
|
[3] |
ELBOW
|
|
| 13F. |
181-00160D2
|
[1] |
ELBOW
|
|
| 18. |
2124-1594A
|
[1] |
CLAMP;PLASTIC
|
|
| 19. |
2124-1595A
|
[1] |
CLAMP;STEEL
|
|
| 20. |
S0508553
|
[2] |
BOLT
|
|
| 25. |
S8000141
|
[8] |
O-RING
|
|
| 26. |
S8000111
|
[6] |
O-RING
|
|
| 28. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 3. |
S2205066
|
[4] |
BOLT
|
|
| 31. |
2181-1126D89
|
[3] |
ADAPTER PFO1/4-PF3/8
|
|
| 34. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 36. |
2181-2295D16
|
[1] |
ELBOW 2-PFO3/8
|
|
| 43. |
2181-1126D120
|
[3] |
ADAPTER PFO1/4-PF3/8
|
|
| 44. |
2621-2752
|
[1] |
PLATE
|
|
| 45. |
S5102503
|
[2] |
. WASHER
|
|
| 51. |
2184-1267D9
|
[1] |
HOSE PF3/8-1950L
|
|
| 52. |
2184-1267D10
|
[1] |
HOSE PF3/8-2050L
|
|
| 53. |
2184-1267D8
|
[1] |
HOSE PF3/8-2200L
|
|
| 54. |
2184-1267D8
|
[1] |
HOSE PF3/8-2200L
|
|
| 55. |
2184-1267D8
|
[1] |
HOSE PF3/8-2200L
|
|
| 56. |
2184-1267D8
|
[1] |
HOSE PF3/8-2200L
|
|
| 77. |
2184-1026D74
|
[1] |
HOSE PF3/8-400L
|
|
| 86. |
2184-1045D213
|
[1] |
HOSE PF3/8-1300L
|
|
| 87. |
2184-1045D136
|
[1] |
HOSE PF3/8-1100L
|
|
| 92. |
2184-1046D237
|
[1] |
HOSE PF3/8-1100L
|
|
| 93. |
2184-1045D248
|
[1] |
HOSE PF3/8-1200L
|
|
