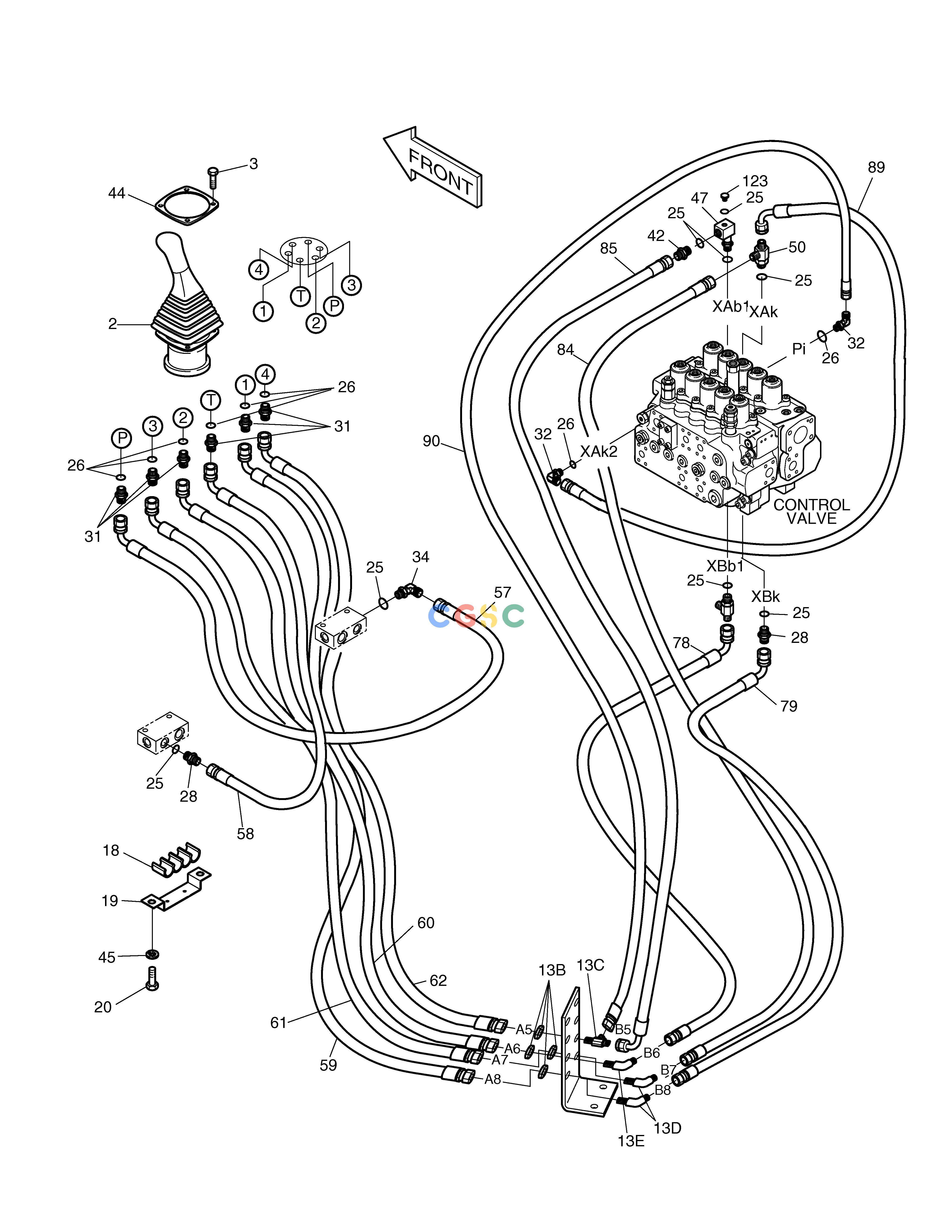

斗山零件查询PILOT PIPING(5) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
469 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |
PILOT PIPING
|
|
| 123. |
2181-2047A
|
[1] |
PLUG
|
|
| 13B. |
121-00010D1
|
[4] |
NUT
|
|
| 13C. |
181-00086D1
|
[1] |
TEE
|
|
| 13D. |
181-00161D1
|
[3] |
ELBOW
|
|
| 13E. |
181-00160D1
|
[1] |
ELBOW
|
|
| 18. |
2124-1594A
|
[1] |
CLAMP;PLASTIC
|
|
| 19. |
2124-1595A
|
[1] |
CLAMP;STEEL
|
|
| 2. |
420-00343B
|
[1] |
REMOTE CONTROL VALVE(R.H)
|
|
| 20. |
S0508553
|
[2] |
BOLT
|
|
| 25. |
S8000141
|
[7] |
O-RING
|
|
| 26. |
S8000111
|
[8] |
O-RING
|
|
| 28. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 3. |
S2205066
|
[4] |
BOLT
|
|
| 31. |
2181-1126D89
|
[6] |
ADAPTER PFO1/4-PF3/8
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 34. |
2181-1702D5
|
[1] |
ELBOW
|
|
| 42. |
181-00144D4
|
[1] |
ADAPTER;ORIFICE
|
|
| 44. |
2621-2752
|
[1] |
PLATE
|
|
| 45. |
S5102503
|
[2] |
. WASHER
|
|
| 47. |
DS2459002
|
[1] |
ELBOW PFO3/8-PF3/8
|
|
| 50. |
2181-2375D11
|
[1] |
TEE PFO3/8-PF3/8-PF1/4
|
|
| 57. |
2184-1060D151
|
[1] |
HOSE PF3/8-1950L
|
|
| 58. |
2184-1060D151
|
[1] |
HOSE PF3/8-1950L
|
|
| 59. |
2184-1060D147
|
[1] |
HOSE PF3/8-2200L
|
|
| 60. |
2184-1060D147
|
[1] |
HOSE PF3/8-2200L
|
|
| 61. |
2184-1060D147
|
[1] |
HOSE PF3/8-2200L
|
|
| 62. |
2184-1060D147
|
[1] |
HOSE PF3/8-2200L
|
|
| 78. |
2184-1046D212
|
[1] |
HOSE PF3/8-1200L
|
|
| 79. |
2184-1046D212
|
[1] |
HOSE PF3/8-1200L
|
|
| 84. |
2184-1045D247
|
[1] |
HOSE PF3/8-1400L
|
|
| 85. |
2184-1060D235
|
[1] |
HOSE PF3/8-1300L
|
|
| 89. |
2184-1046D68
|
[1] |
HOSE PF1/4-600L
|
|
| 90. |
2184-1060D62
|
[1] |
HOSE PF1/4-1920L
|
|
