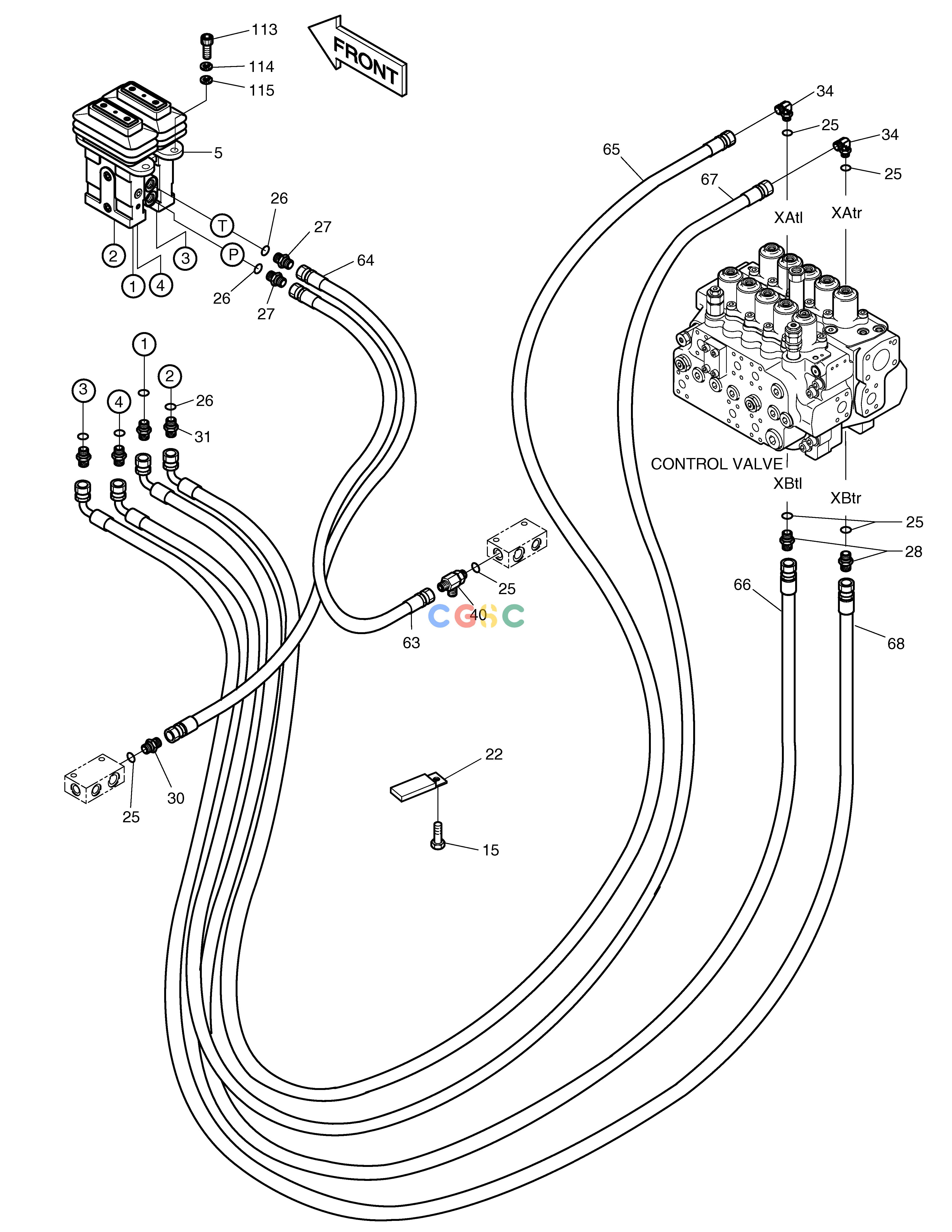

斗山零件查询PILOT PIPING(6) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
578 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |
PILOT PIPING
|
|
| 113. |
S2212266
|
[4] |
BOLT
|
|
| 114. |
S5110603
|
[4] |
WASHER
|
|
| 115. |
S5010613
|
[4] |
WASHER
|
|
| 15. |
120-00276
|
[1] |
BOLT M8X1.25X12
|
|
| 22. |
124-00209D6
|
[1] |
CLIP
|
|
| 25. |
S8000141
|
[6] |
O-RING
|
|
| 26. |
S8000111
|
[6] |
O-RING
|
|
| 27. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[2] |
ADAPTER
|
|
| 30. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 31. |
2181-1126D89
|
[4] |
ADAPTER PFO1/4-PF3/8
|
|
| 34. |
2181-1702D5
|
[2] |
ELBOW
|
|
| 40. |
2181-1951D7
|
[1] |
TEE
|
|
| 5. |
420-00030
|
[1] |
PEDAL VALVE
|
|
| 63. |
2184-1045D174
|
[1] |
HOSE PF1/4-330L
|
|
| 64. |
2184-1045D98
|
[1] |
HOSE PF1/4-380L
|
|
| 65. |
2184-1046D229
|
[1] |
HOSE PF3/8-3400L
|
|
| 66. |
2184-1061D348
|
[1] |
HOSE PF3/8-3300L
|
|
| 67. |
2184-1046D265
|
[1] |
HOSE PF3/8-3550L
|
|
| 68. |
2184-1061D349
|
[1] |
HOSE PF3/8-3400L
|
|
