| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

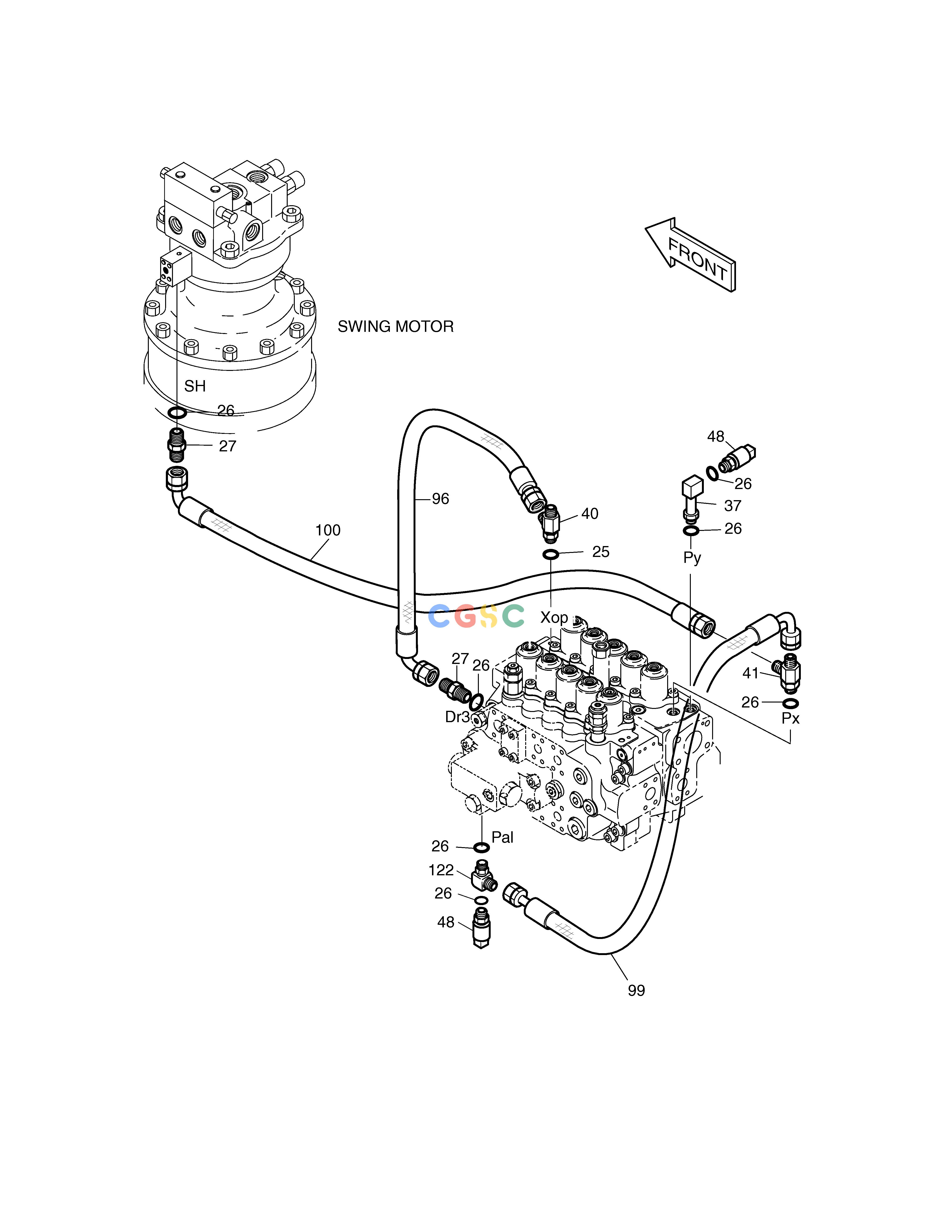

| -. | K1002257 | [-] | PILOT PIPING | |
| 100. | 2184-1046D82 | [1] | HOSE PF1/4-850L | |
| 122. | 2181-2760 | [1] | TEE | |
| 25. | S8000141 | [1] | O-RING | |
| 26. | S8000111 | [7] | O-RING | |
| 27. | 2181-1126D14 | [2] | ADAPTER | |
| 37. | 2181-2295D4 | [1] | ELBOW | |
| 40. | 2181-1951D7 | [1] | TEE | |
| 41. | 2181-1951D46 | [1] | TEE | |
| 48. | 2549-9112 | [2] | SWITCH;PRESSURE | |
| 96. | 2184-1046D195 | [1] | HOSE PF1/4-510L | |
| 99. | 2184-1046D83 | [1] | HOSE PF1/4-830L |
