斗山零件查询PILOT PIPING(8) SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
925 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

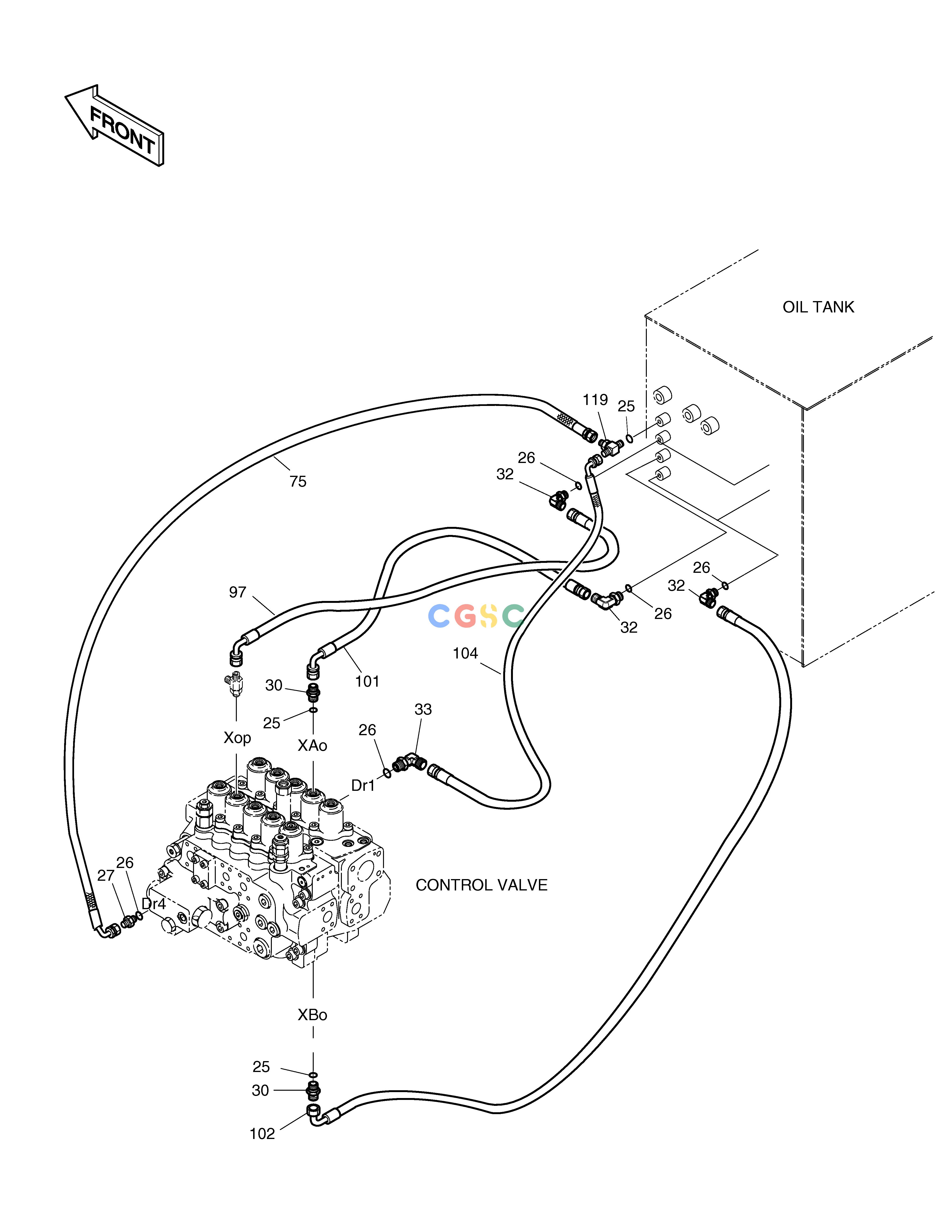

K1002257
|
[-] |
PILOT PIPING
|
|
| 101. |
2184-1046D81
|
[1] |
HOSE PF1/4-650L
|
|
| 102. |
2184-1046D115
|
[1] |
HOSE PF1/4-700L
|
|
| 104. |
2184-1036D238
|
[1] |
HOSE PF3/8-500L
|
|
| 119. |
2181-1951D6
|
[1] |
TEE
|
|
| 25. |
S8000141
|
[3] |
O-RING
|
|
| 26. |
S8000111
|
[5] |
O-RING
|
|
| 27. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 30. |
2181-1126D36
|
[2] |
ADAPTER
|
|
| 32. |
2181-1702D4
|
[3] |
ELBOW
|
|
| 33. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 75. |
2184-1046D163
|
[1] |
HOSE PF1/4-1330L
|
|
| 97. |
2184-1046D94
|
[1] |
HOSE PF1/4-780L
|
|
