| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
K1002257
|
[-] |

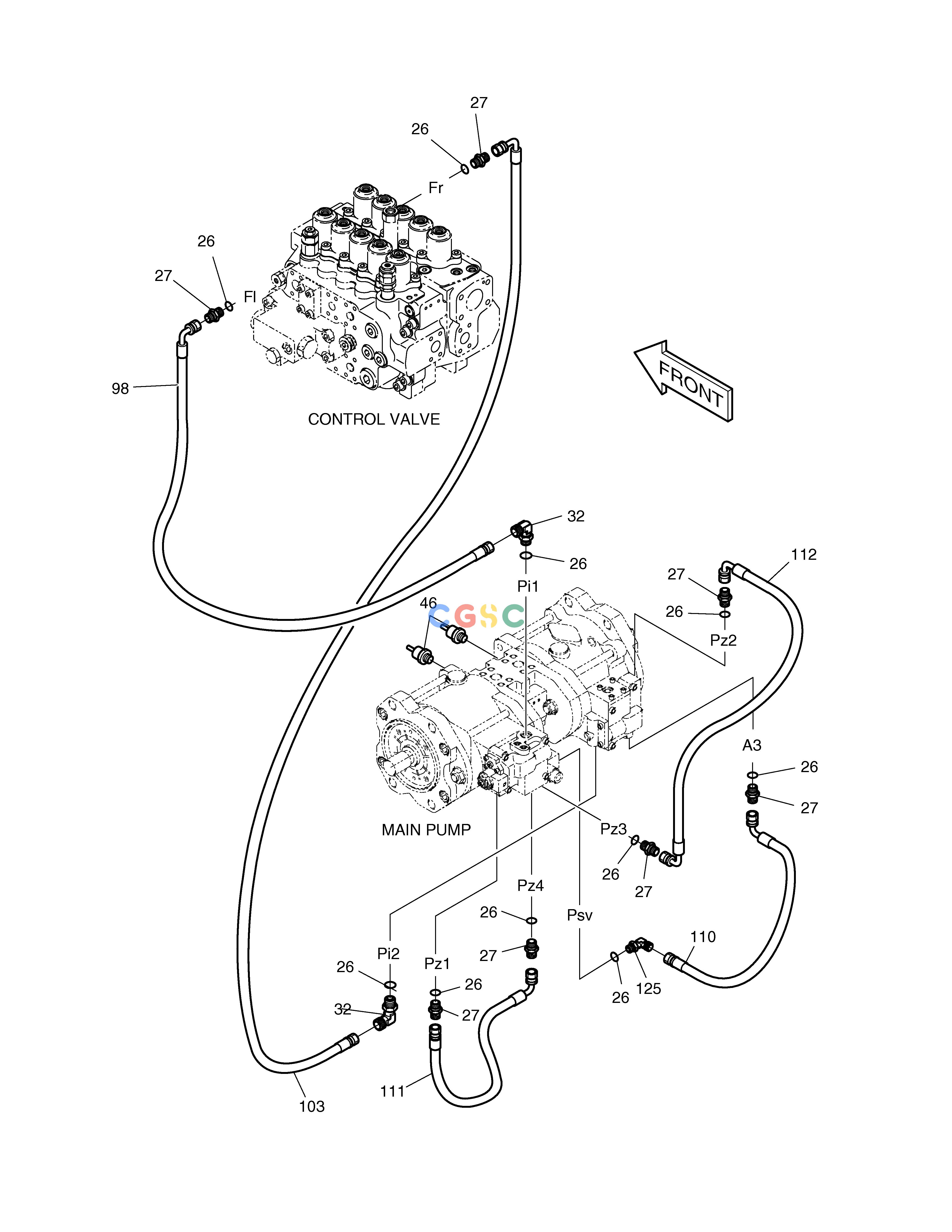

PILOT PIPING
|
|
| 103. |
2184-1046D120
|
[1] |
HOSE PF1/4-1950L
|
|
| 110. |
2184-1046D198
|
[1] |
HOSE PF1/4-400L
|
|
| 111. |
2184-1046D215
|
[1] |
HOSE PF1/4-320L
|
|
| 112. |
2184-1061D245
|
[1] |
HOSE PF1/4-430L
|
|
| 125. |
471-00118
|
[1] |
FILTER;REDUCER
|
|
| 26. |
S8000111
|
[10] |
O-RING
|
|
| 27. |
2181-1126D14
|
[7] |
ADAPTER
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 46. |
2547-9045
|
[2] |
SENSOR;PRESSURE
|
|
| 98. |
2184-1046D120
|
[1] |
HOSE PF1/4-1950L
|
|
