斗山零件查询PUMP INSTALLATION SOLAR 220LC-6 Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
842 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

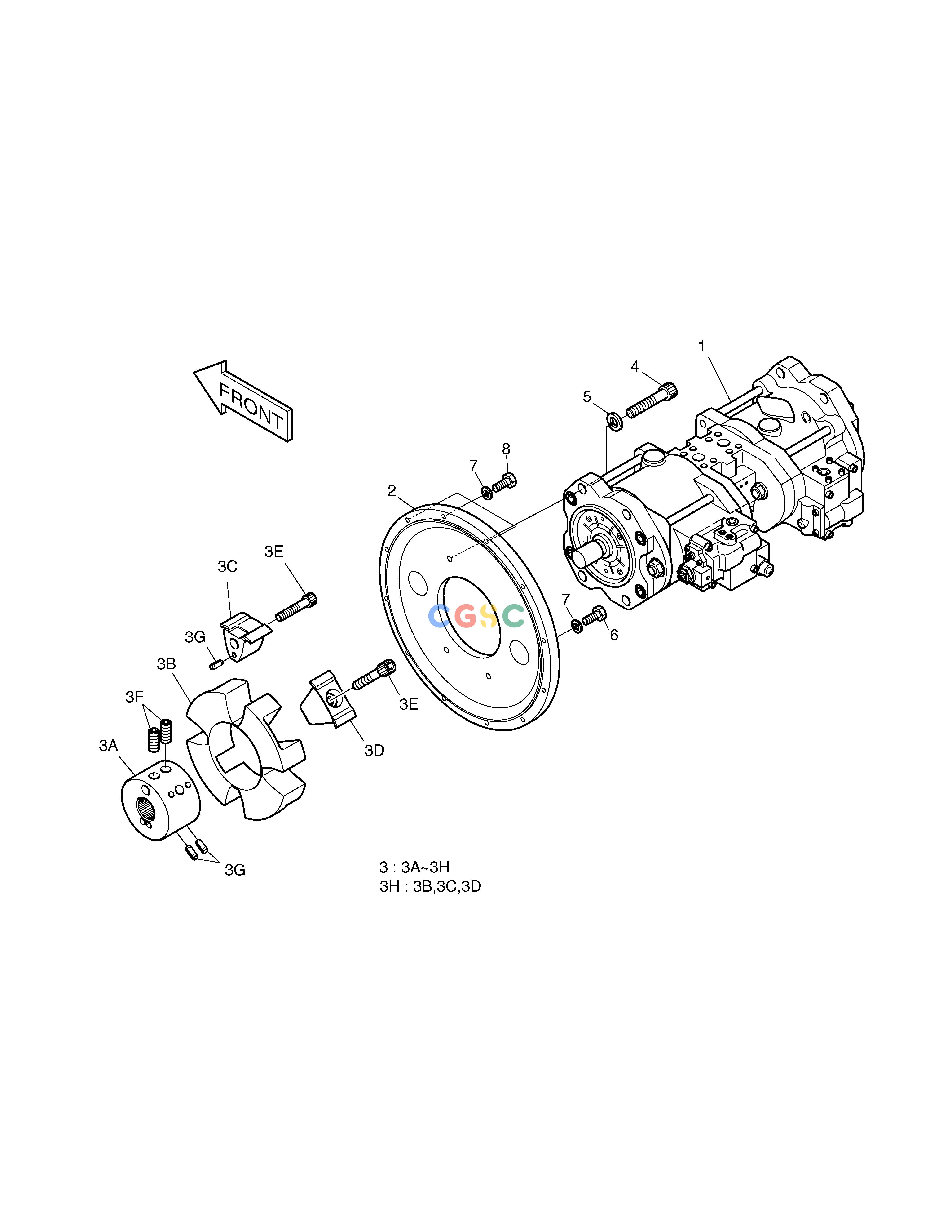

2401-1222
|
[-] |
PUMP INSTALLATION
|
|
| 1. |
2401-9225C
|
[1] |
PUMP
|
|
| 2. |
229-00012A
|
[1] |
COVER
|
|
| 3. |
2414-9008A
|
[1] |
COUPLING
|
|
| 3A. |
NA00546
|
[1] |
HUB
|
|
| 3B. |
2474-7009
|
[4] |
ELEMENT
|
|
| 3C. |
NA00559
|
[4] |
. INSERT
|
|
| 3D. |
NA00561
|
[4] |
. INSERT
|
|
| 3E. |
K9000422
|
[1] |
SOCKET BOLT SET(8EA)
|
|
| 3F. |
NA00142
|
[2] |
|
|
| 3G. |
NA00781
|
[12] |
|
|
| 3H. |
2474-7009K
|
[8] |
ELEMENT KIT
|
|
| 4. |
S2227966
|
[4] |
BOLT;SOCKET M20X2.5X65
|
|
| 5. |
S5111103
|
[4] |
WASHER;SPRING
|
|
| 6. |
S0512053
|
[9] |
BOLT
|
|
| 7. |
S5102603
|
[12] |
. WASHER
|
|
| 8. |
S0558153
|
[3] |
BOLT
|
|
