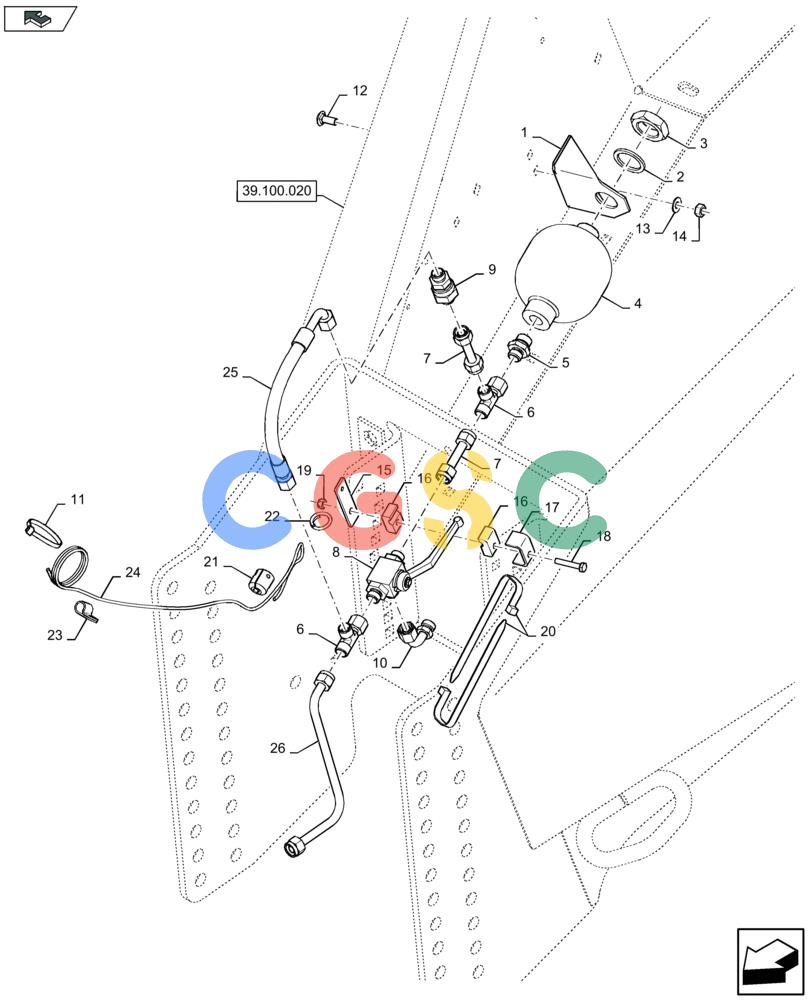

凯斯零件查询(LB324P) - BALER (9/12-) (33.240.010) - EMERGENCY BRAKES SYSTEM Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
895 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84078104
|
[1] |
SUPPORT
|
ZED
, Serial Range: -C071 Superseded by part number: 84078103
|
| 1. |
84078103
|
[1] |
SUPPORT
|
ZED
, Start Serial: D072
|
| 2. |
140110
|
[1] |
WASHER,31mm ID x 40mm OD x 3mm Thk
|
ZED
|
| 3. |
308823
|
[1] |
NUT,M28 x 1.5, Cl 8
|
ZED
|
| 4. |
84018325
|
[1] |
ACCUMULATOR,0.5L
|
ZED
|
| 5. |
395019
|
[1] |
HYD CONNECTOR,M18 x 1.5 ORB x M16 x 1.5 ORB
|
PA
|
| 6. |
734031
|
[2] |
HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female
|
ZED
|
| 7. |
84146095
|
[2] |
HYD TUBE,65 mm L
|
ZED
|
| 8. |
84320121
|
[1] |
DRAINCOCK/TAP SUPPLY,M16 x 1.5 x M16 x 1.5
|
ZED
|
| 9. |
84078038
|
[1] |
VALVE,M16 x 1.5 x M16 x 1.5
|
ZED
|
| 10. |
418284
|
[1] |
90 ELBOW
|
ZED
|
| 11. |
86566989
|
[1] |
CABLE TIE,208mm L
|
ZED
|
| 12. |
86507486
|
[2] |
CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 13. |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 14. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 15. |
921153
|
[1] |
PLATE
|
ZED
|
| 16. |
433008
|
[2] |
CLAMP
|
NH
|
| 17. |
433101
|
[1] |
SUPPORT
|
NH
|
| 18. |
86977789
|
[1] |
BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8
|
ZED
|
| 19. |
353308
|
[1] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 20. |
368582
|
[2] |
STRAP
|
GI
Superseded by part number: 263117
|
| 21. |
84607248
|
[1] |
WIRE CLAMP
|
ZED
|
| 22. |
84078105
|
[1] |
RING
|
ZED
|
| 23. |
9507809
|
[1] |
CLAMP,11.3mm ID, 6.7mm Bolt Hole, P Type
|
ZED
|
| 24. |
9839198
|
[1] |
CABLE
|
ZED
|
| 25. |
84146409
|
[1] |
FLEXIBLE HOSE,8mm ID x 270mm L, SAE 100R16
|
ZED
|
| 26. |
84292505
|
[1] |
HYD TUBE
|
ZED
|
| 26. |
84292353
|
[1] |
HYD TUBE
|
ZED
|
