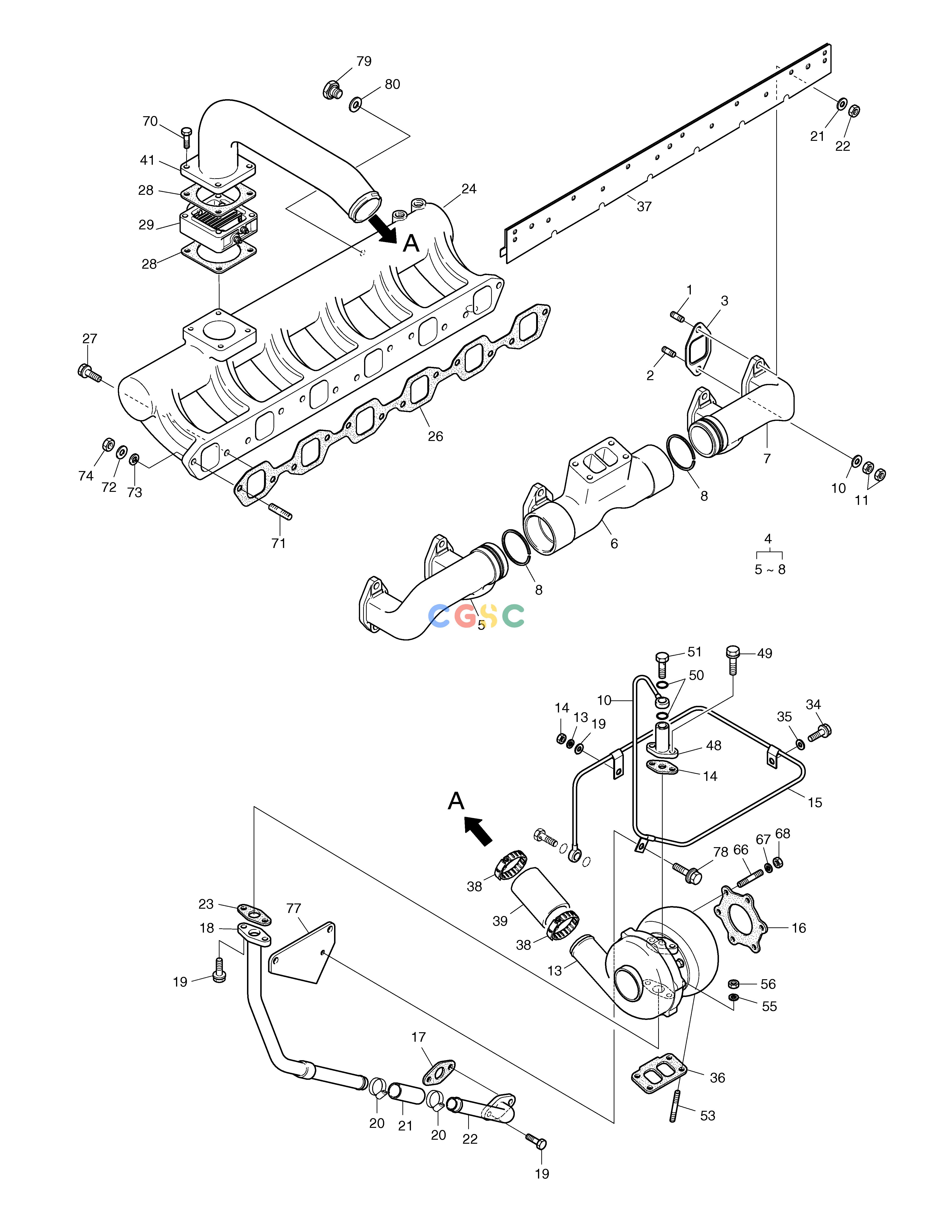

斗山零件查询INTAKE.EXHAUST MANIFOLD SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
282 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
06.06226-0811
|
[6] |
BOLT;STUD M10X35
|
65.90201-0094
|
| 1. |
65.90201-0094
|
[6] |
BOLT;STUD
|
|
| 10. |
06.15010-2312
|
[12] |
WASHER;PLAIN
|
|
| 11. |
06.11063-8215
|
[22] |
NUT;HEX. M10
|
|
| 13. |
65.09100-7191
|
[1] |
TOURBO CHARGER ASS'Y
|
|
| 14. |
65.96601-0046A
|
[1] |
GASKET;OIL PIPE ADAPTER
|
|
| 15. |
65.05701-5661
|
[1] |
PIPE;OIL
|
|
| 16. |
65.09901-0025
|
[1] |
GASKET;TURBO CHARGER
|
|
| 17. |
65.05903-0030A
|
[1] |
GASKET;OIL RETURN PIPE
|
|
| 17. |
65.96601-0012
|
[1] |
GASKET;T/C OIL RETURN
|
|
| 18. |
65.05701-5662
|
[1] |
PIPE;T/C OIL RETURN
|
|
| 18. |
65.05701-5442
|
[1] |
PIPE;OIL
|
|
| 19. |
06.01913-3114
|
[4] |
BOLT ASS`Y M8X22
|
|
| 2. |
65.90201-0154
|
[6] |
BOLT;STUD M12X1.5X10
|
|
| 20. |
06.67020-0106
|
[2] |
CLAMP;HOSE
|
|
| 21. |
51.96330-0346
|
[1] |
HOSE;RUBBER
|
65.96301-0327
|
| 21. |
65.96301-0327
|
[1] |
HOSE;RUBBER
|
|
| 22. |
65.05701-5654
|
[1] |
PIPE;OIL
|
|
| 22. |
65.05701-5443
|
[1] |
PIPE;OIL
|
|
| 23. |
65.96601-0045A
|
[1] |
GASKET
|
|
| 24. |
65.08201-5365
|
[1] |
MANIFOLD;INTAKE
|
65.08201-5057
|
| 24. |
65.08201-5057
|
[1] |
MANIFOLD;INTAKE
|
|
| 26. |
65.08902-0025
|
[1] |
GASKET;INTAKE MANIFOLD
|
|
| 27. |
06.01923-3218
|
[8] |
BOLT ASS`Y M10X35
|
|
| 28. |
65.09904-0008
|
[2] |
GASKET;AIR HEATER
|
|
| 29. |
65.26803-7028
|
[1] |
HEATER;AIR
|
65.26803-7028B
|
| 29. |
65.26803-7028B
|
[1] |
AIR HEATER
|
|
| 3. |
65.08901A0012
|
[6] |
GASKET;EXHAUST MANIFOLD
|
|
| 34. |
06.01943-3317
|
[2] |
BOLT ASS`Y M12X1.5X30
|
|
| 35. |
06.15010-2313
|
[2] |
WASHER;PLAIN
|
|
| 36. |
65.08901-0063
|
[1] |
GASKET;EXHAUST ELBOW
|
|
| 37. |
65.08120-5008F
|
[1] |
SCREEN;HEAT
|
65.08120-5008G
|
| 37. |
65.08120-5008G
|
[1] |
SCREEN;HEAT&CYL HEAD
|
|
| 38. |
06.67020-0112
|
[2] |
CLAMP;HOSE
|
|
| 39. |
65.96301-0268
|
[1] |
HOSE
|
|
| 4. |
65.08100-6061
|
[1] |
EXHAUST MANIFOLD ASS'Y
|
|
| 41. |
65.09411-0066
|
[1] |
PIPE;AIR
|
|
| 48. |
65.98131-5008
|
[1] |
FLANGE;ADPTER
|
|
| 49. |
06.01913-3113
|
[2] |
.. BOLT ASS`Y M8X20
|
|
| 5. |
65.08101-0181A
|
[1] |
MANIFOLD;EXHAUST(FRONT)
|
|
| 50. |
06.56180-0714
|
[2] |
RING;SEAL
|
|
| 51. |
06.78144-2403
|
[1] |
HOLLOW SCREW M12X1.5
|
|
| 53. |
06.06226-0808
|
[4] |
BOLT;STUD M10X30
|
65.90201-0076
|
| 53. |
65.90201-0076
|
[4] |
. BOLT;STUD
|
|
| 55. |
06.16731-2108
|
[4] |
WASHER;SPRING
|
|
| 56. |
06.11063-8215
|
[4] |
NUT;HEX. M10
|
65.90535-0001
|
| 56. |
65.90535-0001
|
[4] |
NUT
|
|
| 6. |
65.08101-0530
|
[1] |
MANIFOLD;EXHAUST(CENTER)
|
|
| 66. |
65.90201-0181
|
[6] |
BOLT;STUD
|
|
| 67. |
06.16731-2108
|
[6] |
WASHER;SPRING
|
|
| 68. |
06.11063-8215
|
[6] |
NUT;HEX. M10
|
|
| 7. |
65.08101-0183A
|
[1] |
MANIFOLD;EXHAUST(REAR)
|
|
| 70. |
06.01923-3125
|
[4] |
. BOLT ASS`Y M8X70
|
|
| 71. |
65.90201-0080
|
[2] |
BOLT;STUD
|
|
| 72. |
06.16731-2108
|
[2] |
WASHER;SPRING
|
|
| 73. |
06.15010-2312
|
[2] |
WASHER;PLAIN
|
|
| 74. |
06.11063-8215
|
[2] |
NUT;HEX. M10
|
|
| 77. |
65.05740-5002
|
[1] |
BRACKET;OIL PIPE
|
|
| 78. |
06.01923-3114
|
[1] |
BOLT ASS`Y M8X22
|
|
| 79. |
65.90310-0033
|
[1] |
SCREW;PLUG
|
|
| 8. |
65.08105-0001
|
[4] |
RING
|
|
| 80. |
06.56180-0716
|
[1] |
. RING;SEAL
|
|
