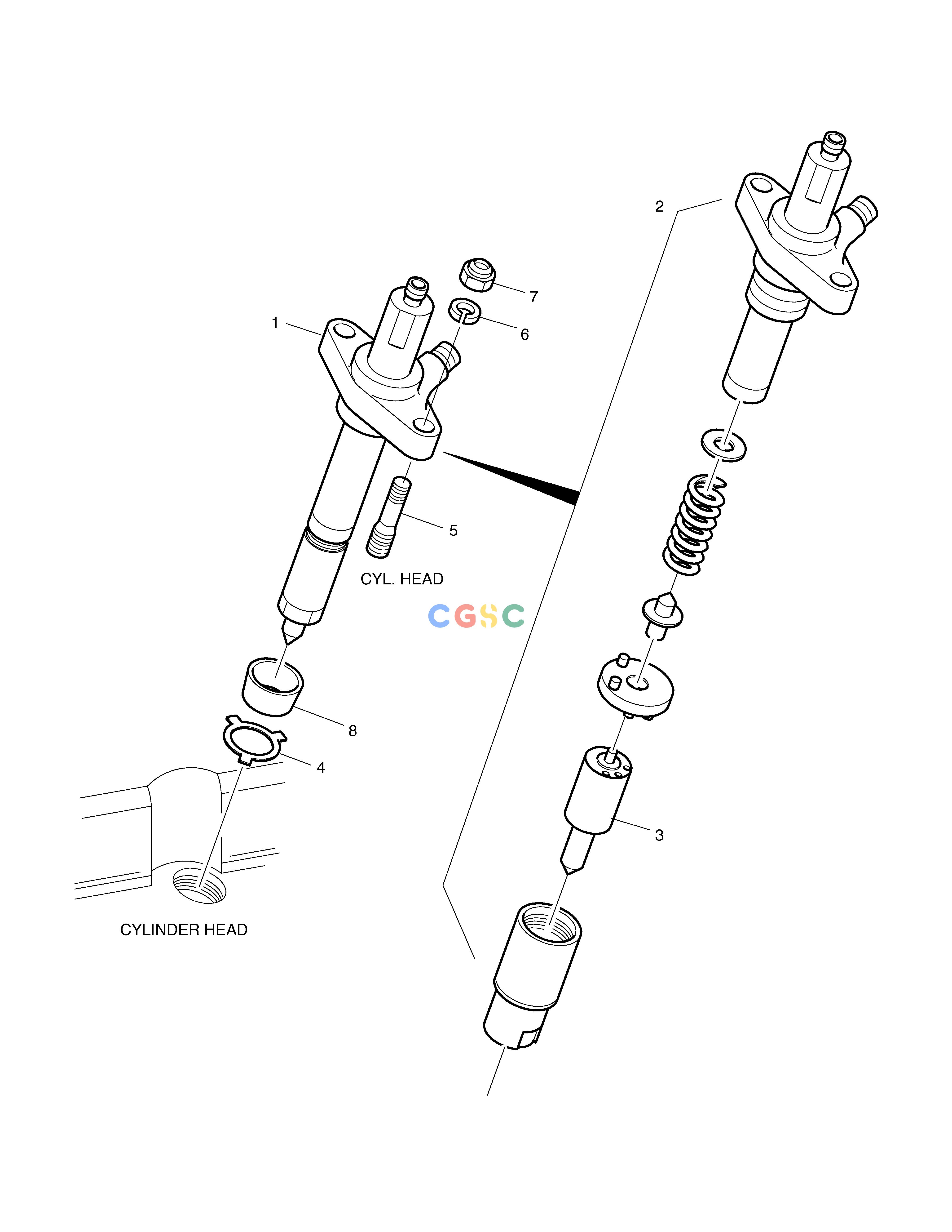

斗山零件查询NOZZLE & HOLDER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
928 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
65.10101-7300
|
[6] |
NOZZLE & HOLDER ASS'Y
|
|
| 2. |
105030-4721
|
[6] |
HOLDER;INJECTION
|
|
| 3. |
65.10102-6046
|
[6] |
NOZZLE ASS'Y
|
|
| 4. |
65.98701-0010
|
[6] |
SEAL;RING (TIER-I)
|
|
| 5. |
65.90201-0186
|
[12] |
BOLT;STUD
|
65.90201-0106
|
| 5. |
|
[-] |
|
65.90201-8212
|
| 5. |
65.90201-0106
|
[12] |
BOLT;STUD M6XM8
|
|
| 6. |
06.16731-2105
|
[12] |
. WASHER
|
|
| 7. |
65.90510-0011
|
[12] |
NUT
|
|
| 7. |
06.11063-8212
|
[24] |
NUT
|
|
| 8. |
65.96401-0011
|
[6] |
SEAL;DUST NOZZLE (TIER-I)
|
|
