神钢零件查询(BREAKER) - NIBBLER/BREAKER ATTACHMENT - SK330, SK330LC DYNAMIC ACERA EXCAVATOR (9/04-) (01-005) - VALVE INSTAL (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
830 次

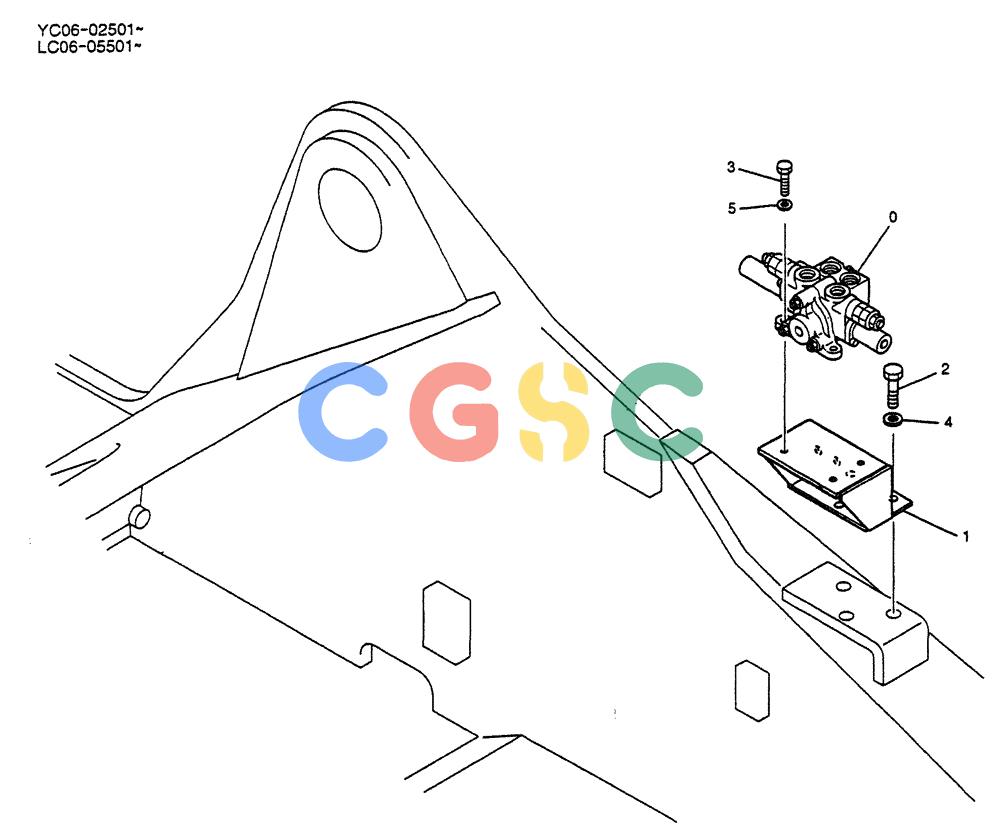

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 0. | YY30V00008F1 | [1] | VALVE | KOBASSY, CONTROL |
| . . | LC64H00016F1 | [1] | VALVE INSTAL | |
| 1. | LC03H01078P1 | [1] | BRACKET | KOB |
| 2. | ZS18C12030 | [3] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 3. | ZS18C08030 | [3] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 4. | ZW16H12000 | [3] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 5. | ZW16H08000 | [3] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
