斗山零件查询MAIN PIPING(3)-ARM. BUCKET SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
524 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

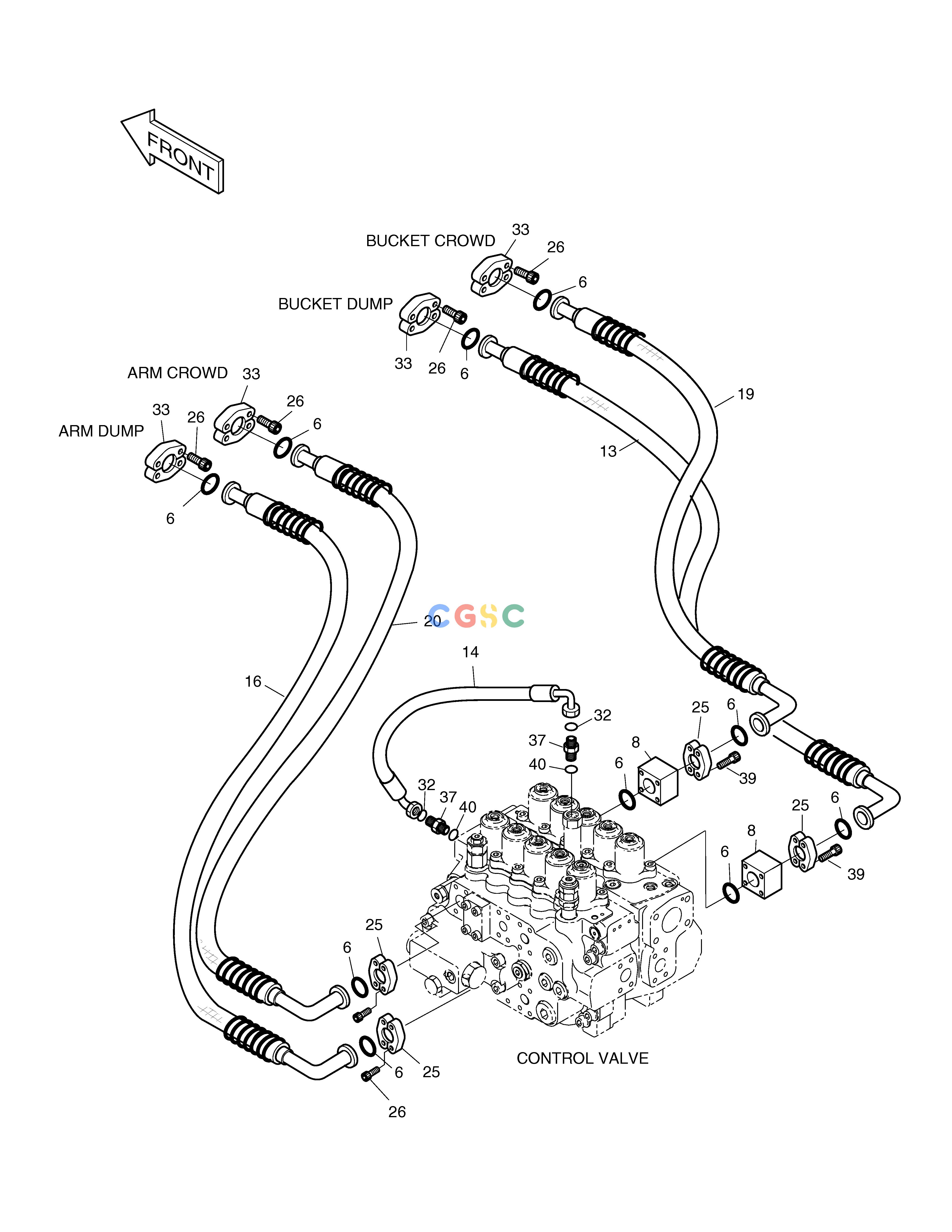

2400-1997
|
[-] |
MAIN PIPING
|
|
| 13. |
2184-1100D131
|
[1] |
HOSE PF1-1950L
|
|
| 14. |
2184-1198D30
|
[1] |
HOSE PF1/2-520L
|
|
| 16. |
2184-1100D41
|
[1] |
HOSE PF1-1850L
|
|
| 19. |
2184-1100D41
|
[1] |
HOSE PF1-1850L
|
|
| 20. |
2184-1100D16
|
[1] |
HOSE PF1-1750L
|
|
| 25. |
2181-9083
|
[8] |
FLANGE;SPLIT
|
|
| 26. |
S2212261
|
[24] |
SOCKET-HEAD BOLT
|
S2212266
|
| 26. |
S2212266
|
[24] |
BOLT
|
|
| 32. |
S8030081
|
[2] |
O-RING
|
|
| 33. |
2181-9078
|
[8] |
FLANGE;SPLIT
|
|
| 37. |
2181-4133D3
|
[2] |
ADAPTER
|
|
| 39. |
S2213061
|
[8] |
BOLT;SOCKET M10X1.5X70
|
S2213066
|
| 39. |
S2213066
|
[8] |
BOLT;SOCKET M10X1.5X70
|
|
| 40. |
S8000181
|
[2] |
O-RING
|
|
| 6. |
2180-1026D19
|
[10] |
O-RING
|
|
| 8. |
2181-2614
|
[2] |
BLOCK;SPACER
|
|
