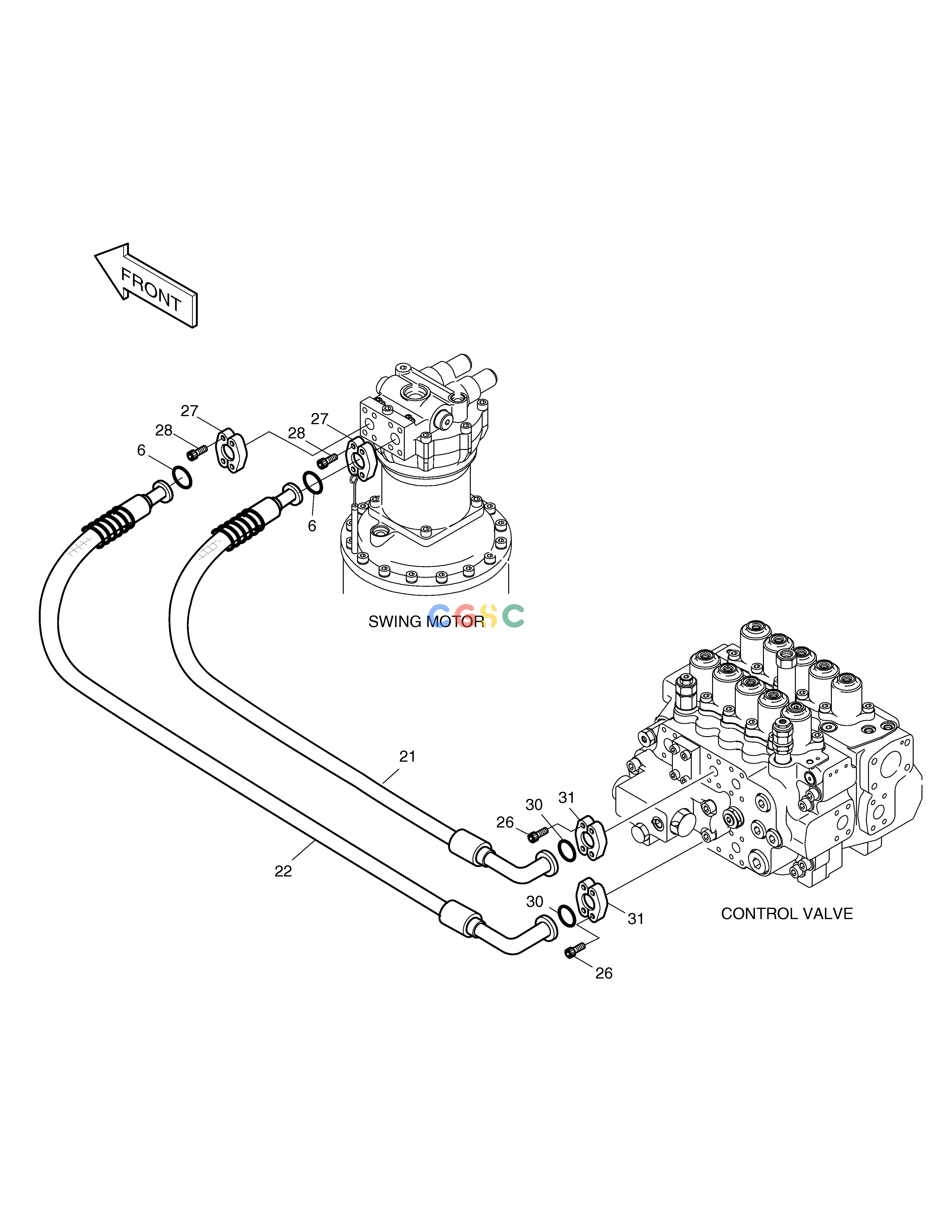

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 2400-1997 | [-] | MAIN PIPING | |
| 21. | 2184-1100D84 | [1] | HOSE PF3/4-550L | |
| 22. | 2184-1100D83 | [1] | HOSE PF3/4-650L | |
| 26. | S2212261 | [8] | SOCKET-HEAD BOLT | S2212266 |
| 26. | S2212266 | [8] | BOLT | |
| 27. | 2181-9081 | [4] | FLANGE;SPLIT | |
| 28. | S2215461 | [8] | BOLT;SOCKET M12X1.75X40 | S2215466 |
| 28. | S2215466 | [8] | BOLT | |
| 30. | 2180-1026D2 | [2] | O-RING | |
| 31. | 2181-9079 | [4] | FLANGE | |
| 6. | 2180-1026D19 | [2] | O-RING |
