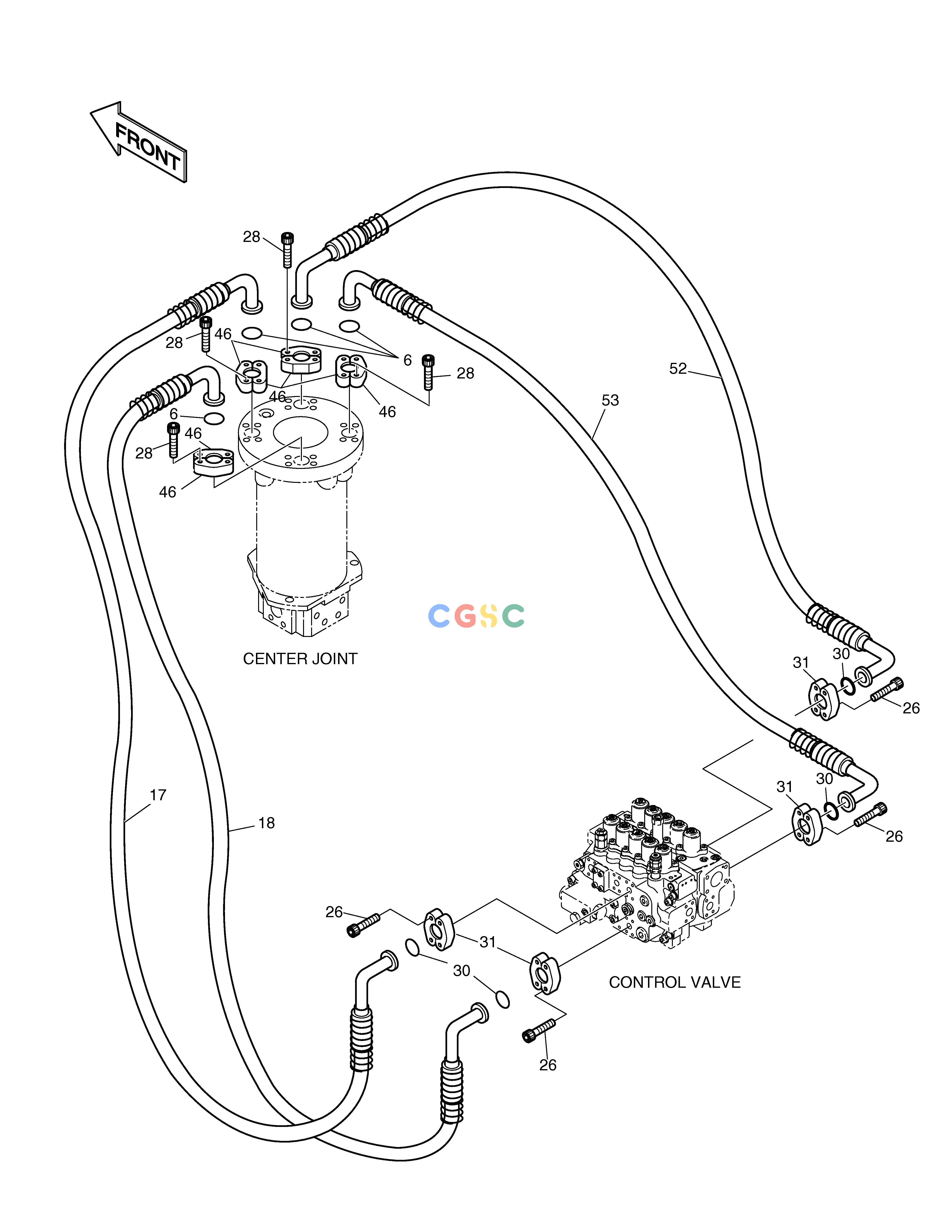

斗山零件查询MAIN PIPING(5)-TRAVEL SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
997 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1997
|
[-] |
MAIN PIPING
|
|
| 17. |
2184-1124D129
|
[1] |
HOSE PF3/4-1800L
|
|
| 18. |
2184-1124D130
|
[1] |
HOSE PF3/4-1500L
|
|
| 26. |
S2212261
|
[16] |
SOCKET-HEAD BOLT
|
S2212266
|
| 26. |
S2212266
|
[16] |
BOLT
|
|
| 28. |
S2215461
|
[16] |
BOLT;SOCKET M12X1.75X40
|
S2215466
|
| 28. |
S2215466
|
[16] |
BOLT
|
|
| 30. |
2180-1026D2
|
[4] |
O-RING
|
|
| 31. |
2181-9079
|
[8] |
FLANGE
|
|
| 46. |
2181-9084A
|
[8] |
FLANGE;SPLIT
|
|
| 52. |
2184-1124D131
|
[1] |
HOSE PF3/4-1900L
|
|
| 53. |
2184-1124D132
|
[1] |
HOSE PF3/4-1600L
|
|
| 6. |
2180-1026D19
|
[4] |
O-RING
|
|
