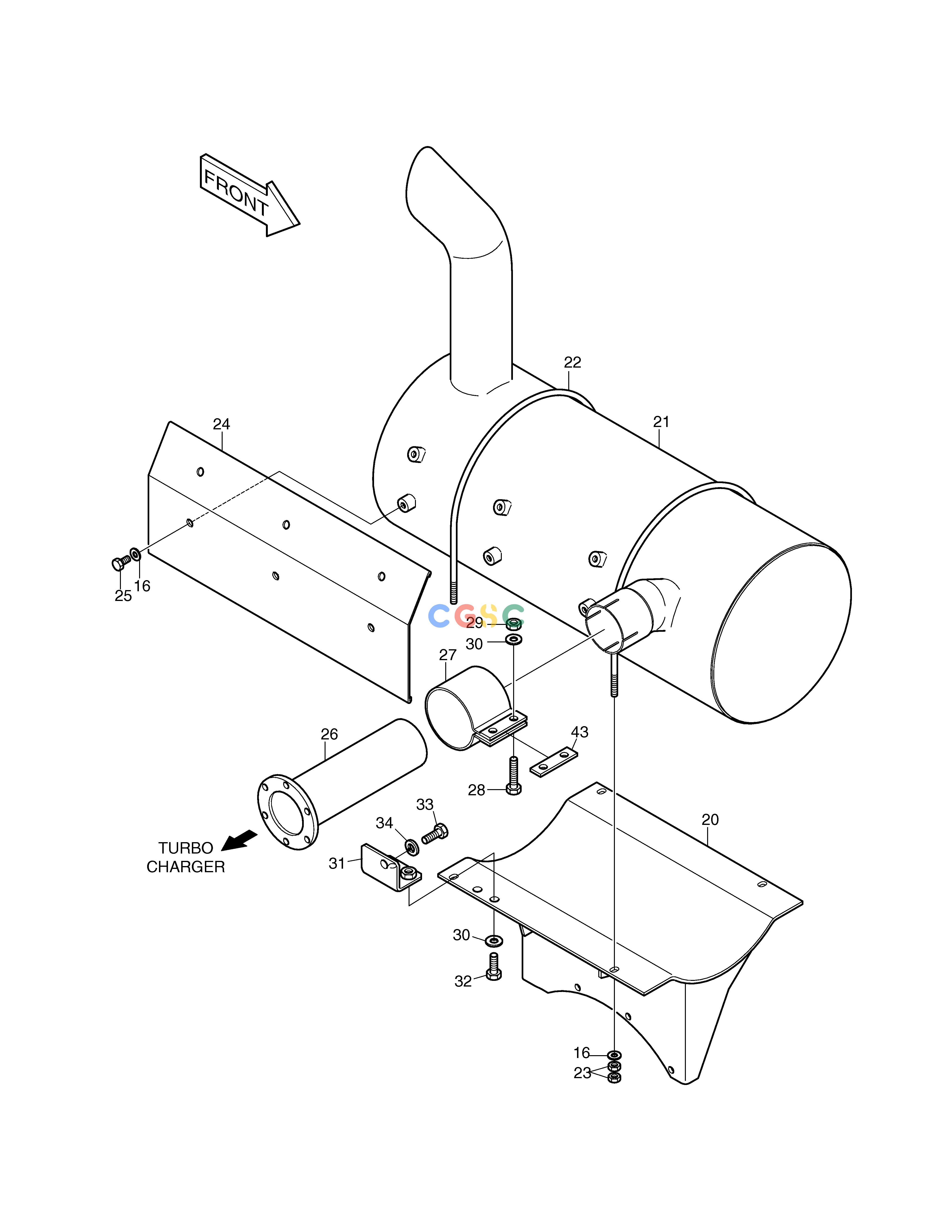

斗山零件查询MUFFLER SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
690 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2201-1087A
|
[-] |
ENGINE ASS'Y
|
|
| 16. |
S5010613
|
[10] |
WASHER
|
|
| 20. |
2197-1981
|
[1] |
BRACKET;MUFFLER
|
|
| 21. |
2203-1707
|
[1] |
MUFFLER
|
2203-1707A
|
| 21. |
2203-1707A
|
[1] |
MUFFLER
|
|
| 22. |
2120-2136
|
[2] |
BOLT;U M10X1.5
|
|
| 23. |
S4012633
|
[8] |
NUT
|
|
| 24. |
2159-1191A
|
[1] |
PLATE;INSULATION
|
|
| 25. |
S0511753
|
[6] |
BOLT M10X1.5X18
|
|
| 26. |
2182-1697
|
[1] |
PIPE;EXHAUST
|
|
| 27. |
2124-1591A
|
[1] |
CLAMP
|
|
| 28. |
S0515853
|
[2] |
BOLT M12X1.75X60
|
|
| 28. |
S0515553
|
[2] |
BOLT M12X1.75X45
|
|
| 29. |
S4012733
|
[2] |
NUT
|
|
| 30. |
S5010713
|
[4] |
WASHER;PLAIN
|
|
| 31. |
2197-2013B
|
[1] |
BRACKET
|
|
| 32. |
S0515253
|
[2] |
. BOLT
|
|
| 33. |
S0762961
|
[1] |
BOLT M14X1.5X50
|
|
| 33. |
S0762966
|
[1] |
BOLT M14X1.5X50
|
|
| 34. |
S5102803
|
[1] |
WASHER
|
|
| 43. |
2114-1925
|
[1] |
SPACER
|
|
