斗山零件查询OIL COOLER PIPING(1) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
552 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

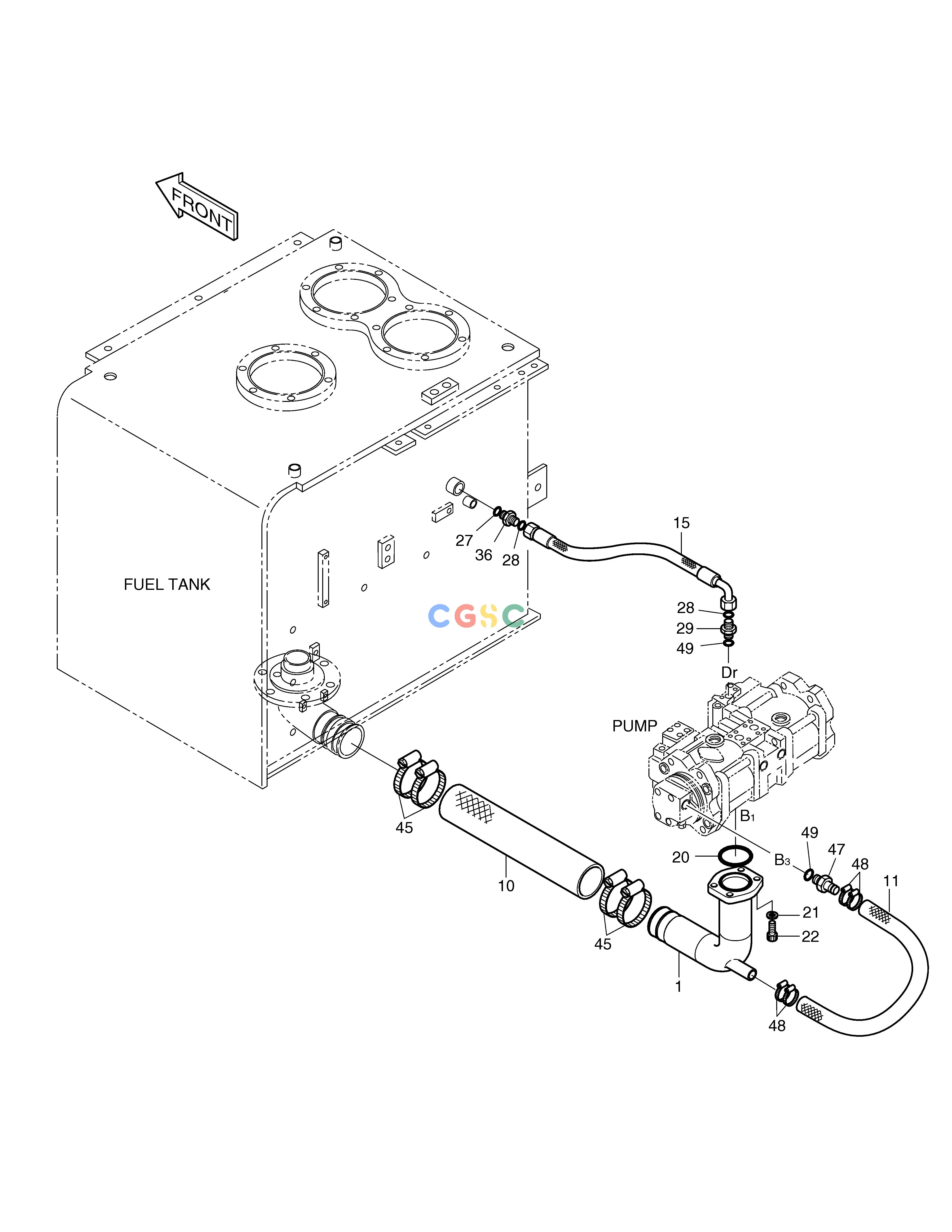

2400-1921A
|
[-] |
OIL COOLER PIPING
|
|
| 1. |
2140-1438A
|
[1] |
PIPE;SUCTION
|
|
| 10. |
2185-1737D2
|
[1] |
HOSE 565L
|
|
| 11. |
2185-1002D116
|
[1] |
HOSE 900L
|
|
| 15. |
2184-1197D35
|
[1] |
HOSE
|
|
| 20. |
2180-1026D32
|
[1] |
O-RING
|
|
| 21. |
S5110901
|
[4] |
WASHER;SPRING M16
|
S5110903
|
| 21. |
S5110903
|
[4] |
WASHER
|
|
| 22. |
S2221461
|
[4] |
BOLT;SOCKET M16X2.0X40
|
S2221466
|
| 22. |
S2221466
|
[4] |
BOLT;SOCKET M16X2.0X40
|
|
| 27. |
S8000231
|
[1] |
O-RING
|
|
| 28. |
S8030121
|
[2] |
O-RING
|
|
| 29. |
2181-4133D5
|
[1] |
. ADAPTER
|
|
| 36. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 45. |
S8450105
|
[4] |
CLAMP;HOSE
|
|
| 47. |
2181-2693A
|
[1] |
ADAPTER
|
|
| 48. |
S8450035
|
[4] |
CLAMP;HOSE
|
|
| 49. |
S8000241
|
[2] |
O-RING
|
|
