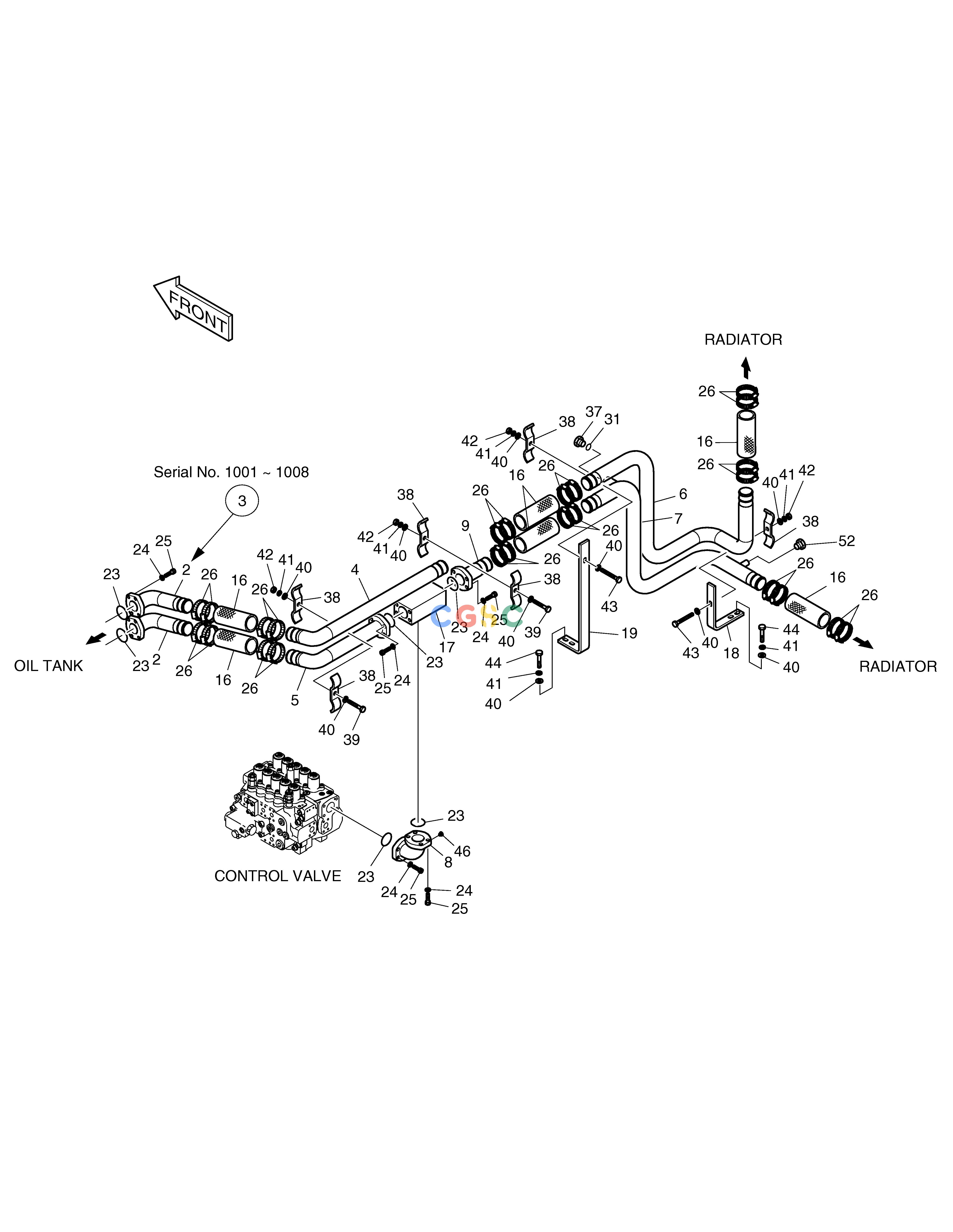

斗山零件查询OIL COOLER PIPING(2) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1921A
|
[-] |
OIL COOLER PIPING
|
|
| 16. |
2185-1002D97
|
[6] |
HOSE 200L
|
2185-1776D1
|
| 16. |
2185-1776D1
|
[6] |
HOSE
|
|
| 17. |
2420-9591
|
[1] |
VALVE;BY-PASS
|
420-00019
|
| 17. |
420-00019
|
[1] |
VALVE;RESTRICTION
|
|
| 18. |
2891-1089A
|
[1] |
PLATE
|
|
| 19. |
2891-1597
|
[1] |
PLATE
|
|
| 2. |
2140-1235A
|
[1] |
PIPE
|
|
| 2. |
2140-1235A
|
[2] |
PIPE
|
|
| 23. |
2180-1026D27
|
[6] |
O-RING
|
|
| 24. |
S5110701
|
[24] |
WASHER;SPRING M12
|
S5110703
|
| 24. |
S5110703
|
[24] |
WASHER
|
|
| 25. |
S2215461
|
[24] |
BOLT;SOCKET M12X1.75X40
|
S2215466
|
| 25. |
S2215466
|
[24] |
BOLT
|
|
| 26. |
S8450066
|
[24] |
CLAMP;HOSE
|
|
| 3. |
2140-1445
|
[1] |
PIPE
|
|
| 31. |
S8000291
|
[1] |
O-RING
|
|
| 37. |
2181-1950D9
|
[1] |
PLUG
|
|
| 38. |
2124-1340D15
|
[6] |
CLAMP;PIPE
|
|
| 39. |
S0561353
|
[2] |
BOLT M12X1.75X80
|
|
| 4. |
2140-1439
|
[1] |
PIPE
|
|
| 40. |
S5010713
|
[12] |
WASHER;PLAIN
|
|
| 41. |
S5102703
|
[8] |
WASHER
|
|
| 42. |
S4012733
|
[4] |
NUT
|
|
| 43. |
S0561753
|
[2] |
BOLT M12X1.75X100
|
|
| 44. |
S0515453
|
[4] |
BOLT
|
|
| 46. |
2181-2047A
|
[1] |
PLUG
|
|
| 5. |
2140-1440A
|
[1] |
PIPE
|
2140-1440B
|
| 5. |
2140-1440B
|
[1] |
PIPE
|
|
| 52. |
2181-2047A
|
[1] |
PLUG
|
|
| 6. |
2140-1441A
|
[1] |
PIPE
|
|
| 7. |
2140-1442A
|
[1] |
PIPE
|
|
| 7. |
2140-1442B
|
[1] |
PIPE
|
|
| 8. |
2140-1240A
|
[1] |
PIPE
|
|
| 9. |
2140-1239
|
[1] |
PIPE
|
|
