斗山零件查询PILOT PIPING(7) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
821 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1920A
|
[-] |

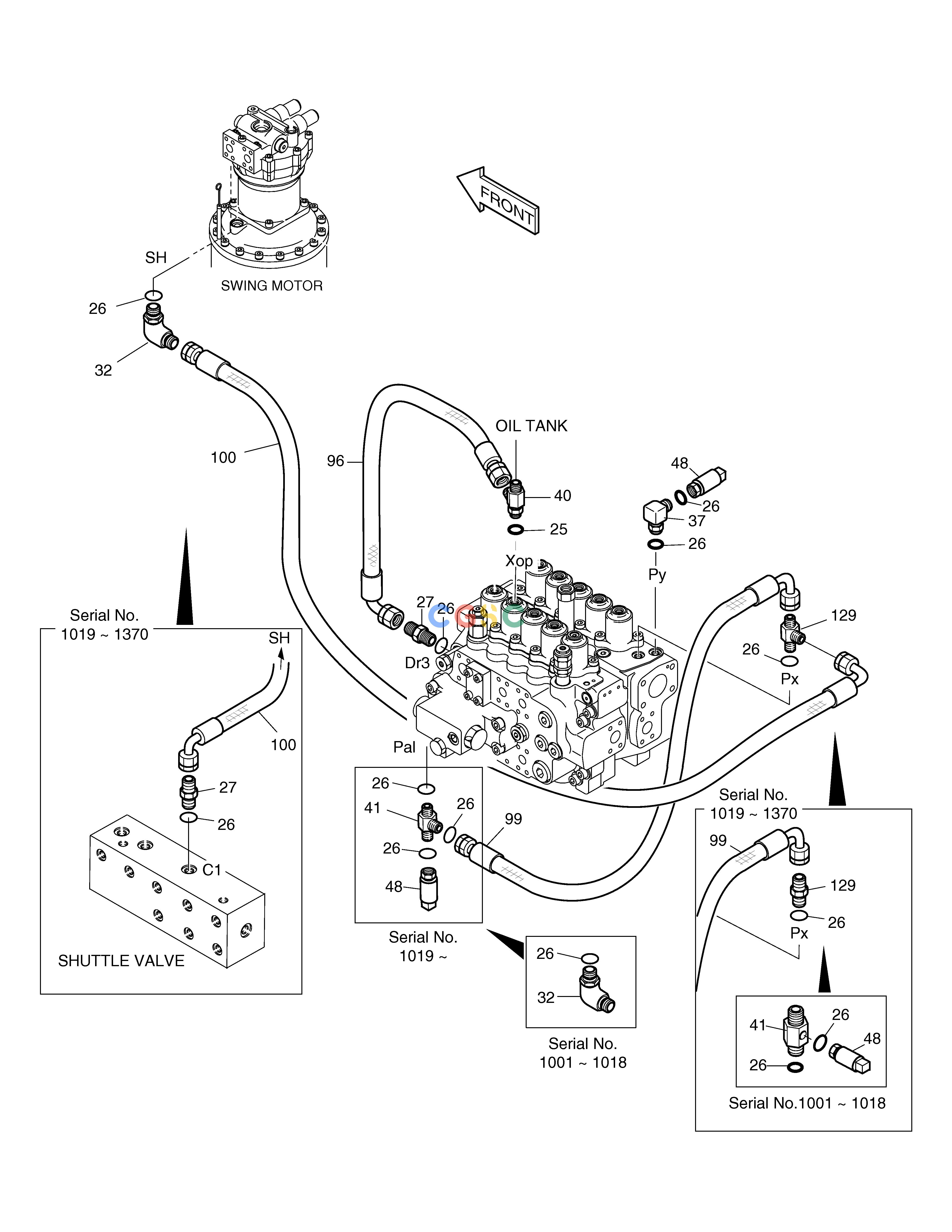

PILOT PIPING
|
|
| 100. |
2184-1046D55
|
[1] |
HOSE PF1/4-530L
|
|
| 100. |
2184-1046D114
|
[1] |
HOSE PF1/4-1350L
|
|
| 129. |
2181-1126D34
|
[1] |
ADAPTER
|
|
| 129. |
2181-1951D1
|
[1] |
TEE
|
|
| 25. |
S8000141
|
[1] |
O-RING
|
|
| 26. |
S8000111
|
[8] |
O-RING
|
|
| 26. |
S8000111
|
[7] |
O-RING
|
|
| 27. |
2181-1126D14
|
[2] |
ADAPTER
|
|
| 27. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 32. |
2181-1702D4
|
[1] |
ELBOW
|
|
| 37. |
2181-2295D4
|
[1] |
ELBOW
|
|
| 40. |
2181-1951D7
|
[1] |
TEE
|
|
| 41. |
2181-2635
|
[1] |
TEE
|
|
| 41. |
2181-2760
|
[1] |
TEE
|
|
| 48. |
2549-9112
|
[2] |
SWITCH;PRESSURE
|
|
| 96. |
2184-1046D68
|
[1] |
HOSE PF1/4-600L
|
|
| 99. |
2184-1046D147
|
[1] |
HOSE PF1/4-1000L
|
|
