斗山零件查询PILOT PIPING(8) SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
647 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1920A
|
[-] |

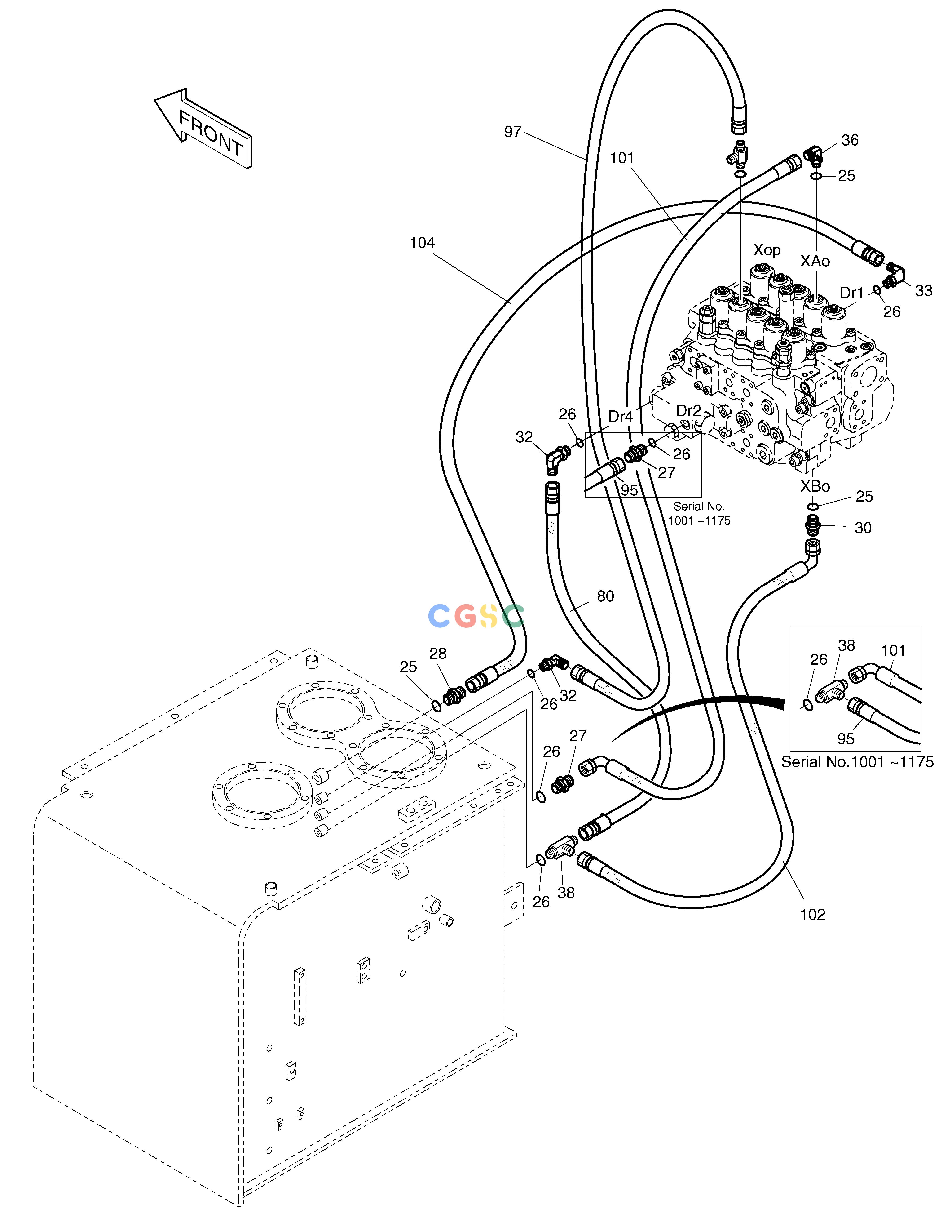

PILOT PIPING
|
|
| 101. |
2184-1046D84
|
[1] |
HOSE PF1/4-1050L
|
|
| 102. |
2184-1046D94
|
[1] |
HOSE PF1/4-780L
|
|
| 104. |
2184-1026D236
|
[1] |
HOSE PF3/8-1100L
|
|
| 25. |
S8000141
|
[3] |
O-RING
|
|
| 26. |
S8000111
|
[6] |
O-RING
|
|
| 26. |
S8000111
|
[5] |
O-RING
|
|
| 27. |
2181-1126D14
|
[1] |
ADAPTER
|
|
| 28. |
2181-1126D7
|
[1] |
ADAPTER
|
|
| 30. |
2181-1126D36
|
[1] |
ADAPTER
|
|
| 32. |
2181-1702D4
|
[2] |
ELBOW
|
|
| 33. |
2181-1702D3
|
[1] |
ELBOW
|
|
| 36. |
2181-1702D10
|
[1] |
ELBOW
|
|
| 38. |
2181-1951D1
|
[2] |
TEE
|
|
| 38. |
2181-1951D1
|
[1] |
TEE
|
|
| 80. |
2184-1045D90
|
[1] |
HOSE PF1/4-800L
|
|
| 95. |
2184-1046D43
|
[1] |
HOSE PF1/4-1120L
|
|
| 97. |
2184-1046D59
|
[1] |
HOSE PF1/4-640L
|
|
