| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

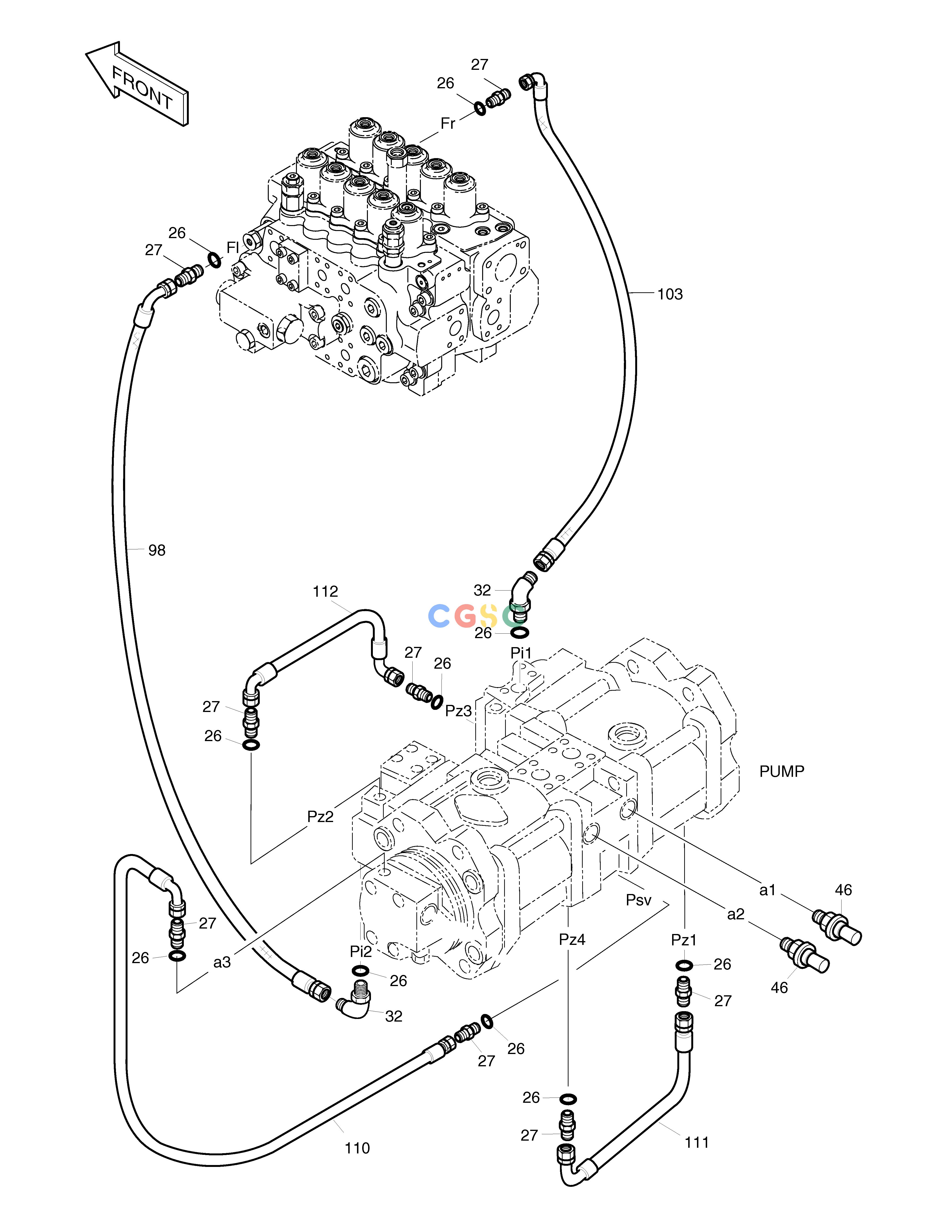

| -. | 2400-1920A | [-] | PILOT PIPING | |
| 103. | 2184-1046D79 | [1] | HOSE PF1/4-2000L | |
| 110. | 2184-1046D81 | [1] | HOSE PF1/4-650L | |
| 111. | 2184-1046D153 | [1] | HOSE PF1/4-350L | |
| 112. | 2184-1061D185 | [1] | HOSE PF1/4-480L | |
| 26. | S8000111 | [10] | O-RING | |
| 27. | 2181-1126D14 | [8] | ADAPTER | |
| 32. | 2181-1702D4 | [2] | ELBOW | |
| 46. | 2547-9045 | [2] | SENSOR;PRESSURE | |
| 98. | 2184-1046D62 | [1] | HOSE PF1/4-1850L |
