斗山零件查询PUMP MOUNTING SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
812 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |

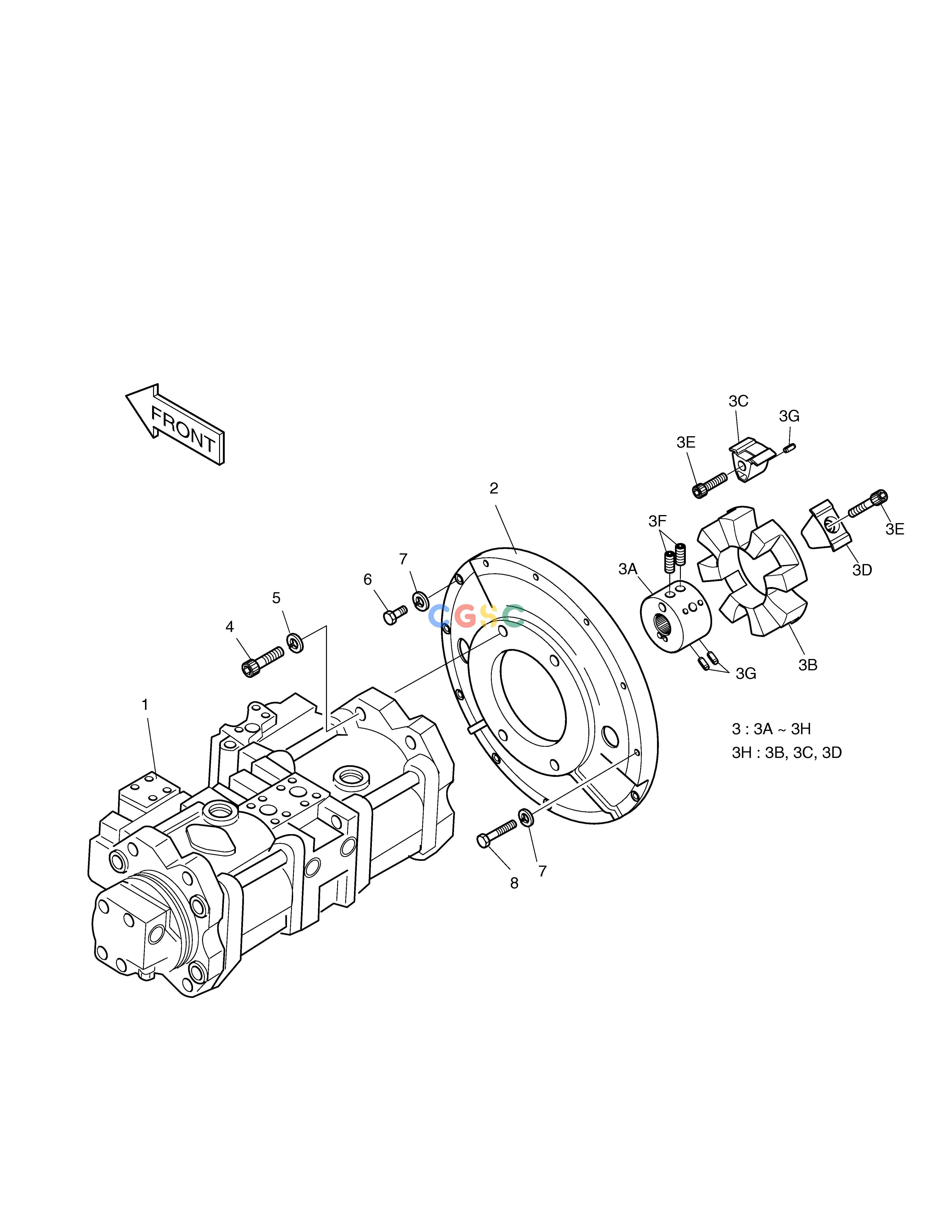

2401-1244A
|
[-] |
PUMP MOUNTING
|
|
| 1. |
2401-9261
|
[1] |
MAIN PUMP
|
2401-9261A
|
| 1. |
2401-9261A
|
[1] |
MAIN PUMP
|
2401-9261B
|
| 1. |
2401-9261B
|
[1] |
MAIN PUMP
|
|
| 2. |
2403-1059C
|
[1] |
COVER
|
|
| 3. |
2414-9040
|
[1] |
COUPLING;PUMP
|
|
| 3A. |
NA00546
|
[1] |
HUB
|
|
| 3B. |
K9000426
|
[1] |
ELEMENT
|
|
| 3C. |
NA00559
|
[4] |
. INSERT
|
|
| 3D. |
NA00561
|
[4] |
. INSERT
|
|
| 3E. |
K9000425
|
[1] |
SOCKET BOLT SET(8EA)
|
|
| 3F. |
NA00144
|
[2] |
|
|
| 3G. |
NA00784
|
[12] |
PIN;SPRING
|
|
| 3H. |
K9000427
|
[1] |
ELEMENT KIT
|
|
| 4. |
S2227861
|
[4] |
BOLT;SOCKET M20X2.5X60
|
S2227866
|
| 4. |
S2227866
|
[4] |
BOLT
|
|
| 5. |
S5111101
|
[4] |
WASHER;SPRING M20
|
|
| 6. |
S0558153
|
[7] |
BOLT
|
|
| 7. |
S5102603
|
[12] |
. WASHER
|
|
| 8. |
S0558753
|
[5] |
BOLT M10X1.5X60
|
|
