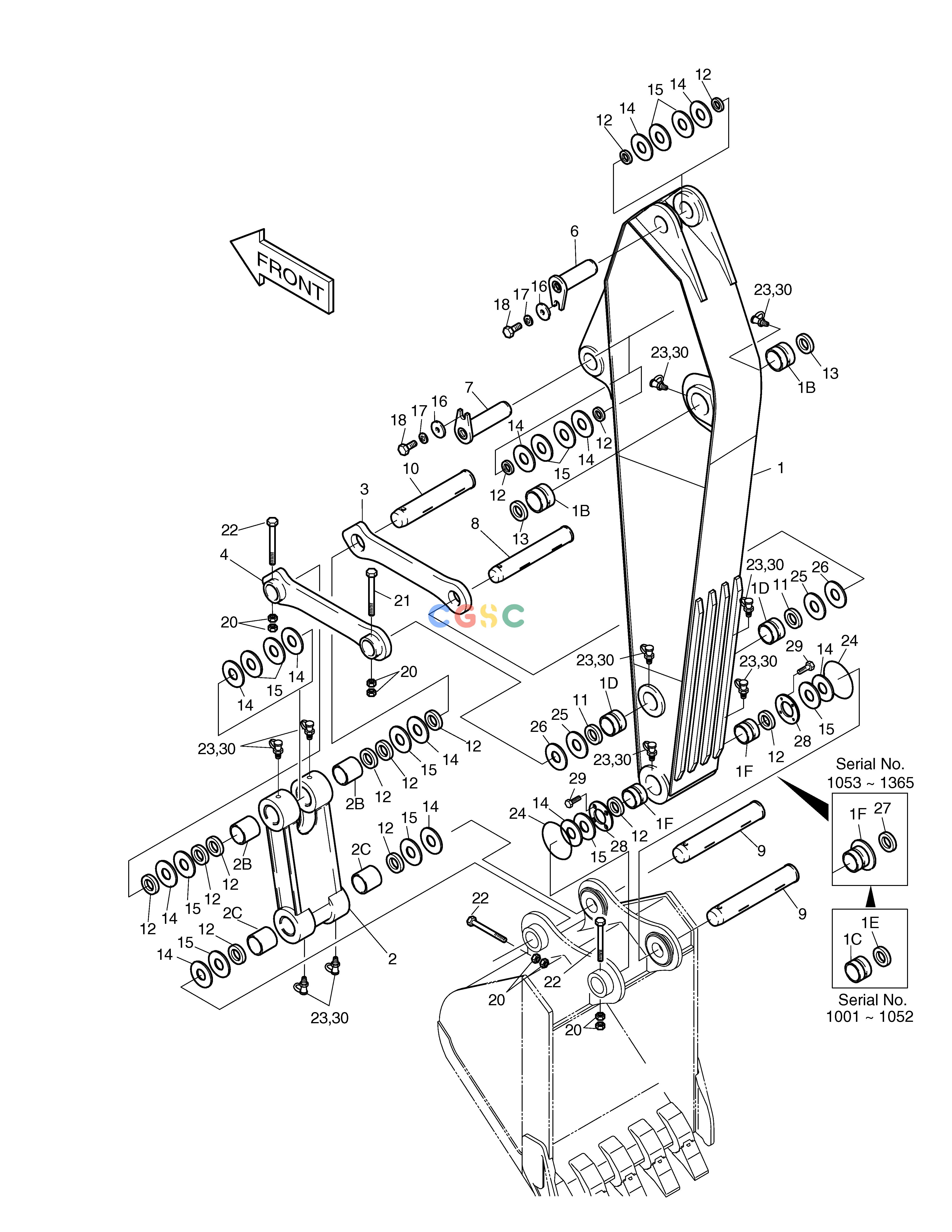

斗山零件查询ARM-3.2m SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
311 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2701-1568A
|
[-] |
ARM ASS'Y
|
|
| 1. |
2701-1569B
|
[1] |
ARM SUB ASS'Y-3.2m
|
2701-1569E
|
| 1. |
2701-1569E
|
[1] |
ARM SUB ASS'Y-3.2m
|
2701-1569G
|
| 1. |
2701-1569G
|
[1] |
ARM SUB ASS'Y-3.2m
|
2701-1569H
|
| 1. |
2701-1569H
|
[1] |
ARM SUB ASS'Y-3.2m
|
2701-1569J
|
| 1. |
2701-1569J
|
[1] |
ARM SUB ASS'Y-3.2m
|
2701-1569K
|
| 1. |
2701-1569K
|
[1] |
ARM SUB ASS'Y-3.2m
|
|
| 10. |
2123-2353
|
[1] |
PIN
|
2123-2353A
|
| 10. |
2123-2353A
|
[1] |
PIN
|
|
| 11. |
2180-1106BD6
|
[2] |
SEAL;DUST
|
|
| 12. |
2180-1106BD14
|
[12] |
SEAL;DUST
|
|
| 12. |
2180-1106BD14
|
[14] |
SEAL;DUST
|
|
| 13. |
2180-1106BD15
|
[2] |
SEAL;DUST
|
|
| 14. |
2114-1059D73
|
[12] |
SHIM
|
|
| 15. |
2114-1059D72
|
[12] |
SHIM
|
|
| 16. |
2116-1060D5
|
[2] |
STOPPER
|
|
| 17. |
S5102901
|
[2] |
. WASHER;SPRING
|
S5102903
|
| 17. |
S5102903
|
[2] |
WASHER
|
|
| 18. |
S0521361
|
[2] |
BOLT M16X2.0X35
|
S0521366
|
| 18. |
S0521366
|
[2] |
BOLT
|
|
| 1B. |
2110-1351A
|
[2] |
BUSHING
|
110-00173
|
| 1B. |
110-00173
|
[2] |
BUSHING
|
|
| 1C. |
2110-1401
|
[2] |
BUSHING
|
|
| 1D. |
2110-1376A
|
[2] |
BUSHING
|
110-00170
|
| 1D. |
110-00170
|
[2] |
BUSHING
|
|
| 1E. |
2215-1028
|
[2] |
FLANGE
|
|
| 1F. |
110-00012
|
[2] |
BUSHING;FLANGE
|
|
| 1F. |
110-00175
|
[2] |
BUSHING;FLANGE
|
110-00203
|
| 1F. |
110-00203
|
[2] |
BUSHING
|
|
| 2. |
2155-1347A
|
[1] |
PUSH;LINK ASS'Y
|
2155-1347B
|
| 2. |
2155-1347B
|
[1] |
PUSH;LINK ASS'Y
|
2155-1347C
|
| 2. |
2155-1347C
|
[1] |
PUSH LINK ASS'Y
|
|
| 20. |
S4013133
|
[8] |
NUT
|
|
| 21. |
S0571861
|
[1] |
BOLT M20X2.5X170
|
S0571866
|
| 21. |
S0571866
|
[1] |
BOLT M20X2.5X170
|
|
| 22. |
S0571961
|
[3] |
BOLT M20X2.5X180
|
S0571966
|
| 22. |
S0571966
|
[3] |
BOLT M20X2.5X180
|
|
| 23. |
S6710041
|
[10] |
NIPPLE,GREASE
|
|
| 24. |
2180-1105D13
|
[2] |
O-RING
|
180-00077D7
|
| 24. |
180-00077D7
|
[2] |
O-RING
|
|
| 25. |
2114-1059D113
|
[2] |
SHIM
|
2114-1059D219
|
| 25. |
2114-1059D219
|
[2] |
SHIM
|
|
| 26. |
2114-1059D114
|
[2] |
SHIM
|
2114-1059D234
|
| 26. |
2114-1059D234
|
[2] |
SHIM
|
|
| 27. |
2180-1106BD27
|
[2] |
SEAL;DUST
|
|
| 28. |
114-00424
|
[2] |
SPACER
|
|
| 29. |
120-00223
|
[8] |
BOLT M12X1.25X25
|
|
| 2B. |
2110-1377A
|
[2] |
BUSHING
|
110-00174
|
| 2B. |
110-00174
|
[2] |
BUSHING
|
|
| 2C. |
2110-1378A
|
[2] |
BUSHING
|
110-00171
|
| 2C. |
110-00171
|
[2] |
BUSHING
|
2110-1378A
|
| 2C. |
2110-1378A
|
[2] |
BUSHING
|
|
| 3. |
2155-1349A
|
[1] |
LINK;GUIDE(R.H)
|
|
| 30. |
160-00020
|
[10] |
CAP
|
|
| 4. |
2155-1350A
|
[1] |
LINK;GUIDE(L.H)
|
|
| 6. |
2123-2031A
|
[1] |
PIN
|
2123-2031B
|
| 6. |
2123-2031B
|
[1] |
PIN
|
|
| 7. |
2123-2356
|
[1] |
PIN
|
2123-2356A
|
| 7. |
2123-2356A
|
[1] |
PIN
|
|
| 8. |
2123-2351
|
[1] |
PIN
|
2123-2351A
|
| 8. |
2123-2351A
|
[1] |
PIN
|
|
| 9. |
2123-2352
|
[2] |
PIN
|
2123-2352A
|
| 9. |
2123-2352A
|
[2] |
PIN
|
|
