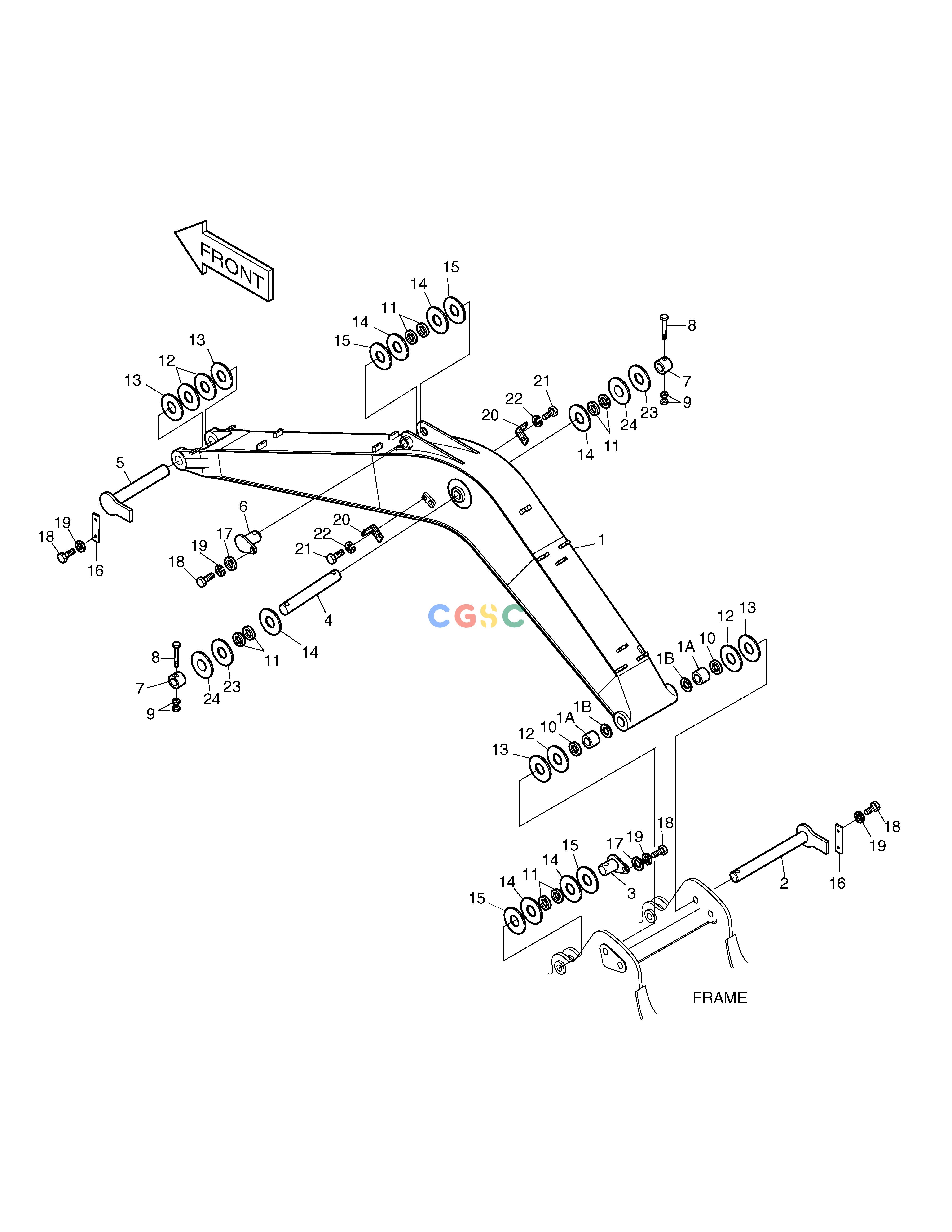

斗山零件查询BOOM-6.5m SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
780 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2701-1564A
|
[-] |
BOOM ASS'Y
|
|
| 1. |
2701-1565C
|
[1] |
BOOM SUB ASS'Y-6.5m
|
2701-1565E
|
| 1. |
2701-1565E
|
[1] |
BOOM SUB ASS'Y-6.5m
|
2701-1565G
|
| 1. |
2701-1565G
|
[1] |
BOOM SUB ASS'Y-6.5m
|
2701-1565H
|
| 1. |
2701-1565H
|
[1] |
BOOM SUB ASS'Y-6.5m
|
2701-1565J
|
| 1. |
2701-1565J
|
[1] |
BOOM SUB ASS'Y-6.5m
|
|
| 1. |
2701-1565B
|
[1] |
BOOM SUB ASS'Y-6.5m
|
2701-1565C
|
| 10. |
2180-1106BD15
|
[2] |
SEAL;DUST
|
|
| 11. |
2180-1106BD14
|
[10] |
SEAL;DUST
|
|
| 12. |
2114-1059D71
|
[4] |
SHIM
|
|
| 13. |
2114-1059D70
|
[4] |
SHIM
|
|
| 14. |
2114-1059D72
|
[8] |
SHIM
|
|
| 15. |
2114-1059D73
|
[6] |
SHIM
|
|
| 16. |
2191-2205D8
|
[2] |
PLATE;STOPPER
|
|
| 17. |
2116-1060D5
|
[3] |
STOPPER
|
|
| 18. |
S0521361
|
[7] |
BOLT M16X2.0X35
|
S0521366
|
| 18. |
S0521366
|
[7] |
BOLT
|
|
| 19. |
S5102901
|
[7] |
. WASHER;SPRING
|
S5102903
|
| 19. |
S5102903
|
[7] |
WASHER
|
|
| 1A. |
2110-1350A
|
[2] |
BUSH
|
110-00172
|
| 1A. |
110-00172
|
[2] |
BUSHING
|
|
| 1B. |
2180-1106BD15
|
[2] |
SEAL;DUST
|
|
| 2. |
2123-2347A
|
[1] |
PIN
|
2123-2347B
|
| 2. |
2123-2347B
|
[1] |
PIN
|
|
| 20. |
2195-2394B
|
[2] |
BRACKET
|
|
| 21. |
S0515053
|
[4] |
BOLT M12X1.75X25
|
|
| 22. |
S5102703
|
[4] |
WASHER
|
|
| 23. |
2114-1059D259
|
[2] |
SHIM 1.0T
|
|
| 24. |
2114-1059D260
|
[2] |
SHIM 1.6T
|
|
| 3. |
2123-2356
|
[2] |
PIN
|
2123-2356A
|
| 3. |
2123-2356A
|
[2] |
PIN
|
2123-2356B
|
| 3. |
2123-2356B
|
[2] |
PIN
|
2123-2356A
|
| 3. |
2123-2356A
|
[2] |
PIN
|
|
| 4. |
2123-2358
|
[1] |
PIN
|
2123-2358A
|
| 4. |
2123-2358A
|
[1] |
PIN
|
|
| 5. |
2123-2349A
|
[1] |
PIN
|
2123-2349B
|
| 5. |
2123-2349B
|
[1] |
PIN
|
|
| 6. |
2123-2031A
|
[1] |
PIN
|
2123-2031B
|
| 6. |
2123-2031B
|
[1] |
PIN
|
|
| 7. |
2116-1539
|
[2] |
STOPPER
|
|
| 8. |
S0571961
|
[2] |
BOLT M20X2.5X180
|
S0571966
|
| 8. |
S0571966
|
[2] |
BOLT M20X2.5X180
|
|
| 9. |
S4013133
|
[4] |
NUT
|
|
