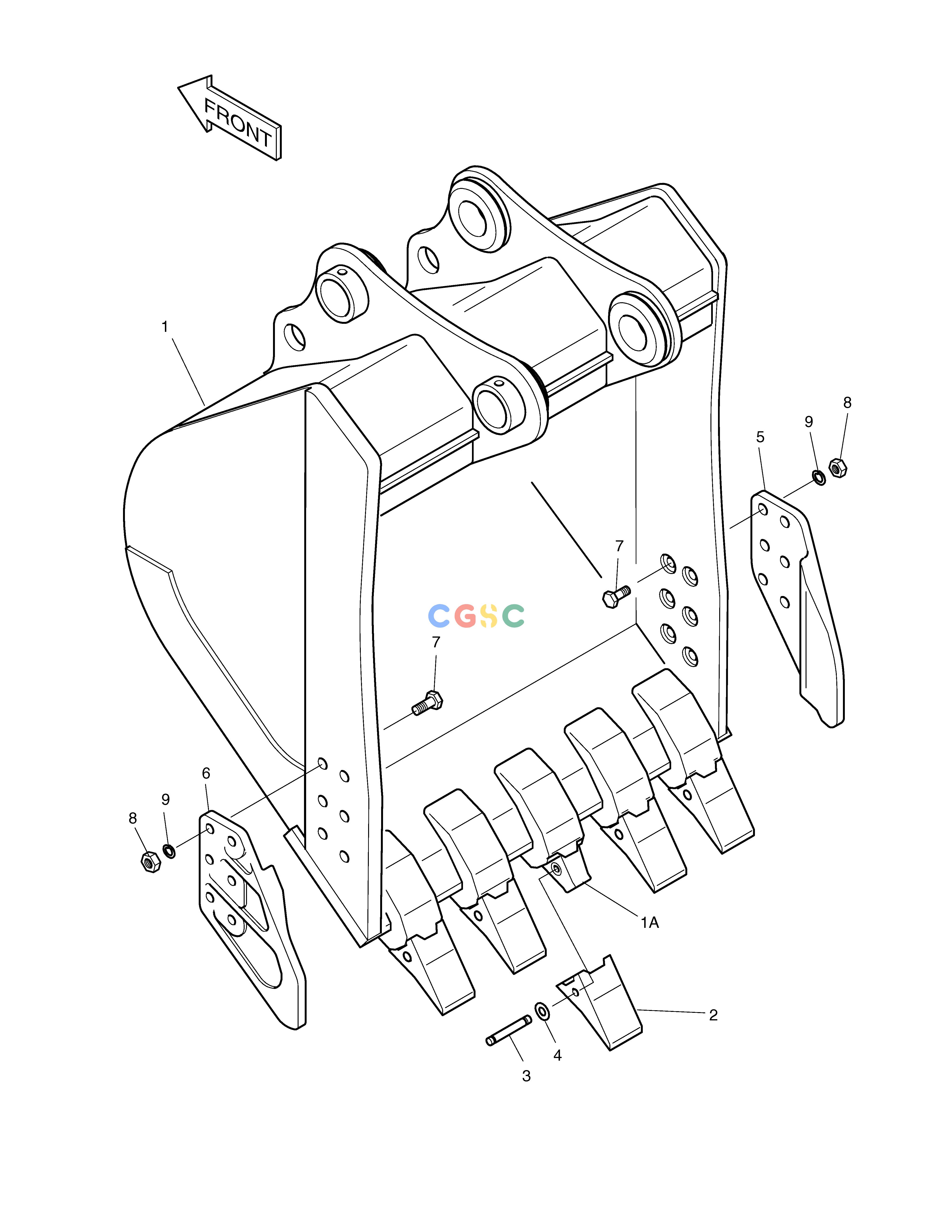

斗山零件查询BUCKET - 1.48m³ SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2704-1525
|
[1] |
BUCKET SUB ASS'Y-1.48m³
|
2704-1525A
|
| -. |
2704-1525A
|
[1] |
BUCKET SUB ASS'Y-1.48m³
|
2704-1525C
|
| -. |
2704-1525C
|
[1] |
BUCKET SUB ASS'Y-1.48m³
|
|
| 1. |
NA03011
|
[1] |
|
|
| 1A. |
2713-1235
|
[5] |
ADAPTER;TOOTH
|
|
| 1A. |
713-00033
|
[5] |
ADAPTER;TOOTH
|
|
| 2. |
2713-1234
|
[5] |
POINT;TOOTH
|
|
| 2. |
713-00032
|
[5] |
POINT;TOOTH
|
|
| 3. |
2705-1021
|
[5] |
PIN;LOCKING
|
|
| 3. |
705-00006
|
[5] |
PIN;LOCKING
|
|
| 4. |
2114-1849A
|
[5] |
WASHER;LOCKING
|
|
| 4. |
114-00246
|
[5] |
WASHER;LOCKING
|
|
| 5. |
2713-6034
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 5. |
2713-6034A
|
[1] |
CUTTER;SIDE(R.H)
|
|
| 6. |
2713-6035
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 6. |
2713-6035A
|
[1] |
CUTTER;SIDE(L.H)
|
|
| 7. |
S0570261
|
[12] |
BOLT M20X2.5X70
|
|
| 7. |
S0574761
|
[12] |
BOLT M24X3.0X70
|
|
| 8. |
S4013133
|
[12] |
NUT
|
|
| 8. |
S4013333
|
[12] |
. NUT
|
|
| 9. |
S5103101
|
[12] |
WASHER;SPRING M20
|
2114-9012
|
| 9. |
2114-9012
|
[12] |
WASHER;HARDEN
|
|
| 9. |
2114-1831
|
[12] |
WASHER;HARDEN
|
|
