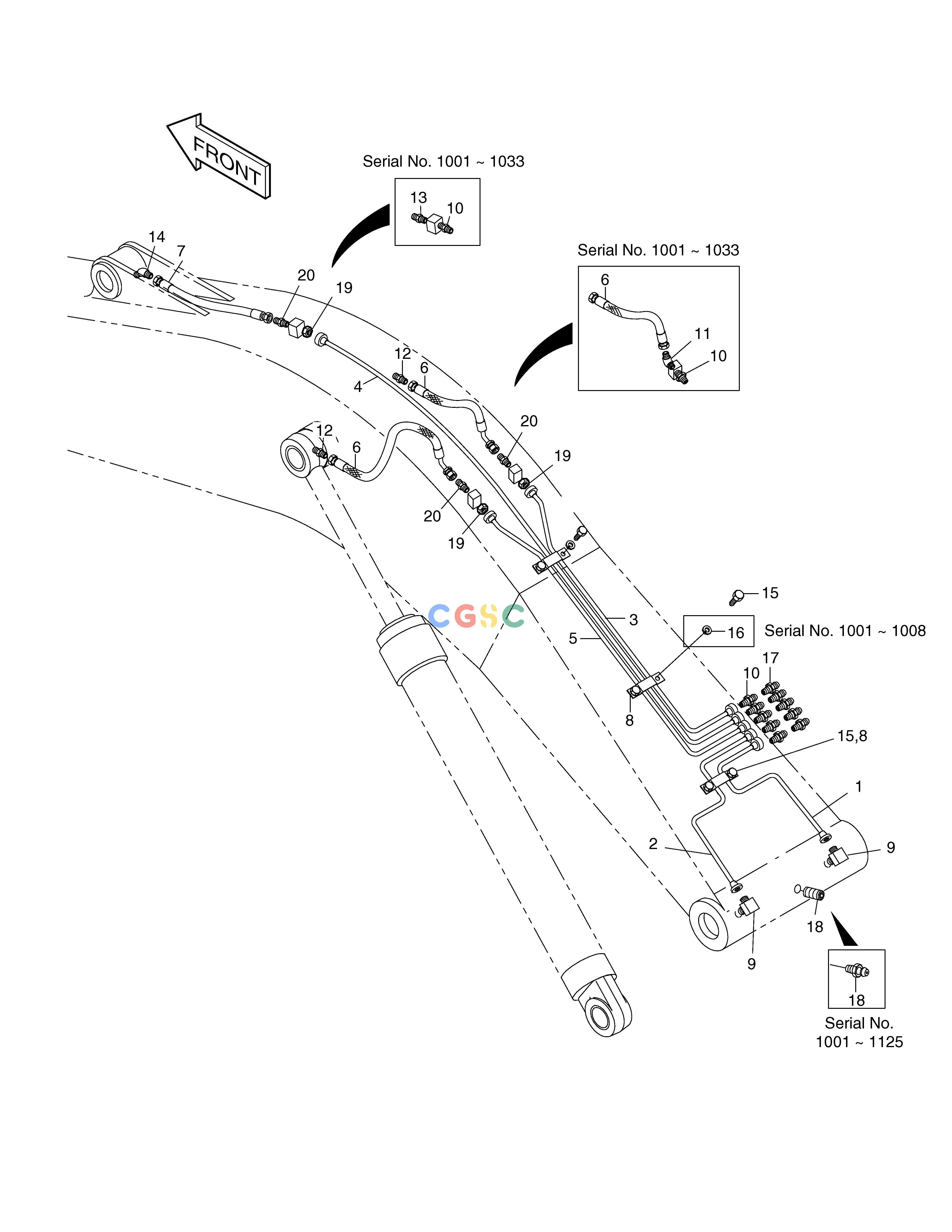

斗山零件查询FRONT LUBRICATION PIPING SOLAR 330LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
284 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2400-1919
|
[-] |
LUBRICATION PIPING
|
|
| 1. |
2140-1433A
|
[1] |
PIPE
|
|
| 10. |
2181-1184
|
[8] |
ADAPTER
|
|
| 10. |
2181-1184
|
[5] |
ADAPTER
|
|
| 11. |
2181-1112D1
|
[2] |
ELBOW PT1/4-PF1/4
|
|
| 12. |
2181-1110D30
|
[2] |
ADAPTER
|
|
| 13. |
2181-1110D1
|
[1] |
ADAPTER
|
|
| 14. |
2181-1111D11
|
[1] |
ELBOW
|
2181-1186D12
|
| 14. |
2181-1186D12
|
[1] |
ELBOW
|
|
| 15. |
S0558153
|
[6] |
BOLT
|
|
| 16. |
S5102603
|
[6] |
. WASHER
|
|
| 17. |
S6710052
|
[5] |
NIPPLE;GREASE
|
|
| 18. |
S6710042
|
[1] |
NIPPLE;GREASE
|
|
| 18. |
S3524403
|
[1] |
PLUG
|
|
| 19. |
S4032833
|
[3] |
NUT
|
|
| 2. |
2140-1434A
|
[1] |
PIPE
|
|
| 20. |
2181-1923D12
|
[3] |
ADAPTER
|
|
| 3. |
2140-1435B
|
[1] |
PIPE
|
|
| 4. |
2140-1436A
|
[1] |
PIPE
|
|
| 5. |
2140-1437B
|
[1] |
PIPE
|
|
| 6. |
2184-1045D55
|
[2] |
HOSE PF1/4-990L
|
|
| 6. |
2184-1060D192
|
[2] |
HOSE PF1/4-850L
|
2184-1060D52
|
| 6. |
2184-1060D52
|
[2] |
HOSE PF1/4-1100L
|
|
| 7. |
2184-1026D127
|
[1] |
HOSE PF1/4-750L
|
2184-1026D42
|
| 7. |
2184-1026D42
|
[1] |
HOSE PF1/4-800L
|
|
| 8. |
2124-1006
|
[3] |
CLAMP
|
|
| 9. |
2181-1925
|
[2] |
ELBOW
|
|
