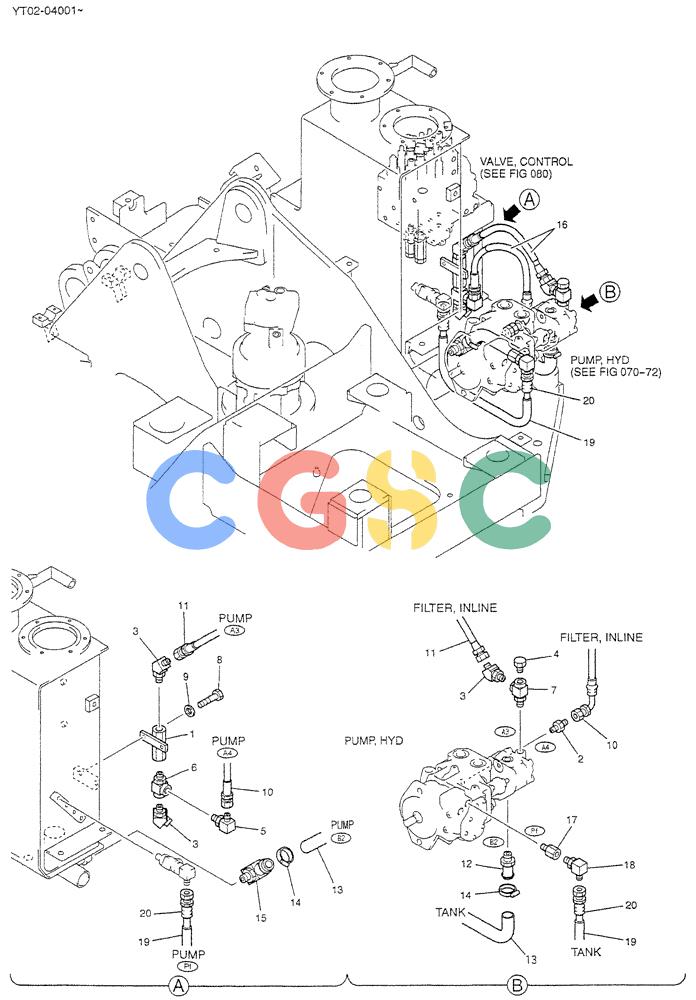

神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E EXCAVATORS ASN YT02-04001 (1/04-12/04) (01-012) - CONTROL LINES, PUMP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT06H00015F2 | [1] | CONTROL LINES, PUMP | |
| 1. | YN50V00007F1 | [1] | VALVE | KOBFILTER ASSY, INLINE |
| 2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 3. | ZH42X06000 | [3] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| 4. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 5. | ZH32X06000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 6. | HH55Q06006G1 | [1] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400) |
| 7. | PW64H01011P1 | [1] | TEE | KOB1/4"PFx(2)3/8"PFx 66mm Long (Incls. O-Ring ZD12P01400) |
| 8. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 9. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 10. | 2444R941D27 | [1] | FLEXIBLE HOSE | KOB |
| 11. | 2420R537D040 | [1] | HOSE ASSY.,9.60mm ID x 400mm L | KOB |
| 12. | YT06H01006P1 | [1] | CONNECTION | KOB |
| . . | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm - Oring for connector pn YT06H01006P1 |
| 13. | YT06H01008P1 | [1] | HOSE | KOB |
| 14. | ZC16X03300 | [2] | FASTENER | KOBClamp, Hose -- Min 26 x Max 39mm |
| 15. | YT06H01007P1 | [1] | ELBOW | KOB |
| 16. | 2414Z199D25 | [2] | PROTECTIVE SLEEVE | KOB Superseded by part number: 2414Z199D025 |
| 17. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 18. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- PF 1/4, (Incls. O-Ring 237-6004) |
| 19. | PU13E01002DA | [1] | TUBE | KOB540mm Long (21-1/4 in) |
| 20. | 2444R1120D065 | [1] | HOSE | KOB650mm Long (25-1/2 in) |
