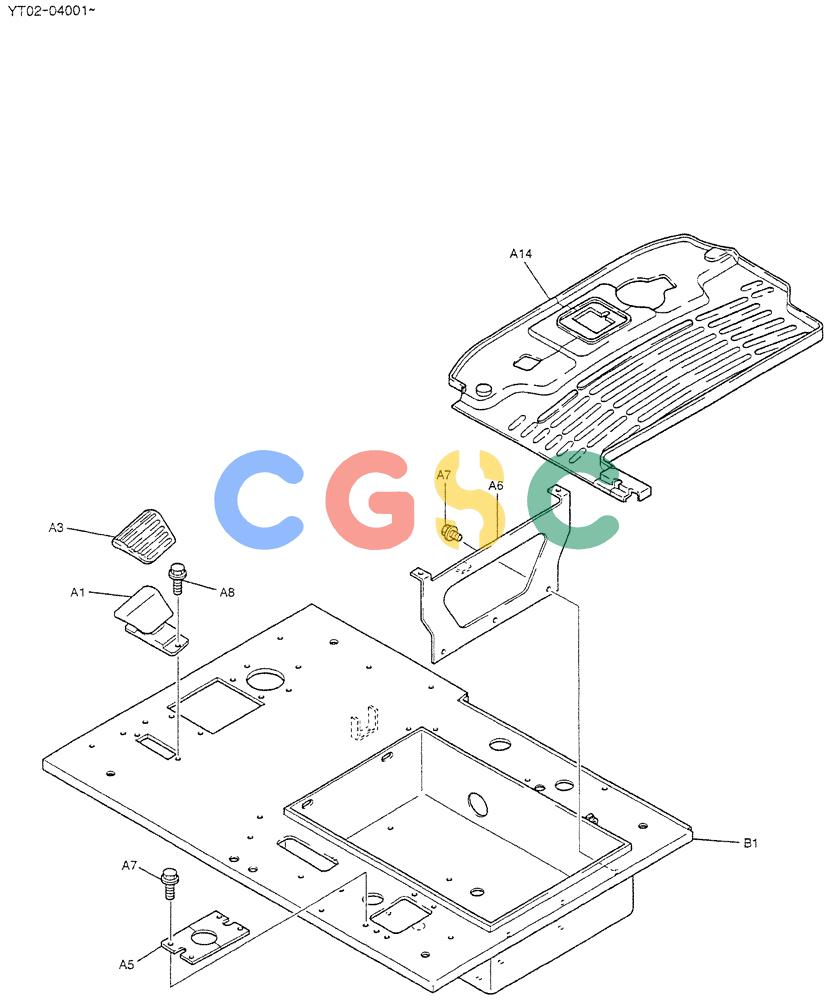

神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E EXCAVATORS ASN YT02-04001 (1/04-12/04) (01-013) - PLATE GROUP, FLOOR (PTPA DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
605 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT03M00027F6 | [1] | PLATE GROUP, FLOOR | |
| A1. | YT03M01112P1 | [1] | SUPPORT | KOB |
| A3. | YN03M01201P1 | [1] | COVER | KOB |
| A5. | YN03M01062P3 | [2] | COVER | KOB |
| A6. | YT03M01077P2 | [1] | SUPPORT | KOB |
| A7. | ZM22C08020 | [7] | BOLT | KOBM08x1.25x20mm (Incls. Washer & Lockwasher) |
| A8. | ZM22C10025 | [2] | BOLT | KOBM10x1.50x25mm (Incls. Washer & Lockwasher) |
| A14. | YT26M00027P1 | [1] | MAT | KOBFLOOR |
| B1. | YT03M00029P1 | [1] | PLATE | KOBFLOOR |
