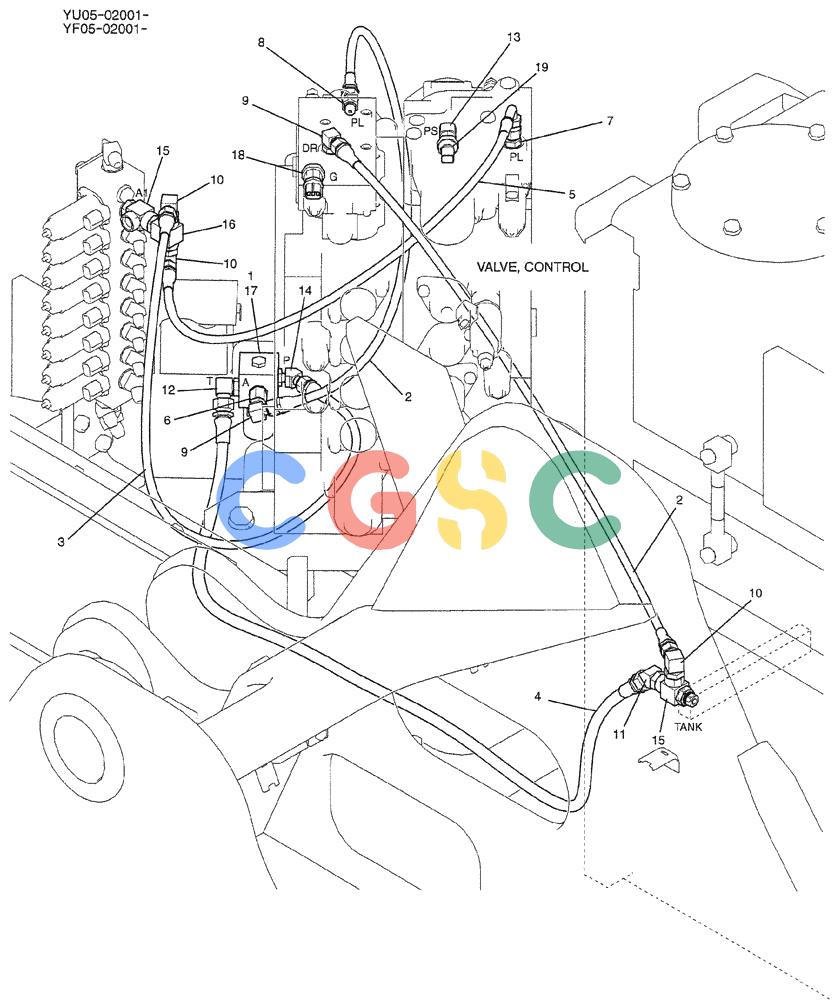

| . . | YF64H00050F1 | [1] | CONTROL LINES, VALVE | |
| . . | YF64H00061F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00062F1 | [1] | CONTROL LINES, VALVECONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00072F1 | [1] | CONTROL LINES, VALVECONTROL LINES, VALVE, SEE FIG. 01-033-01 & 01-033-02 | |
| . . | YF64H00059F1 | [1] | CONTROL LINES, VALVE, SEE FIG. 01-035 | |
| . . | YF64H00085F1 | [1] | CONTROL LINES, VALVE | |
| 1. | YN35V00010F2 | [1] | VALVE | KOBASSY, SOLENOID |
| 2. | 2420R349D086 | [2] | HOSE | KOBHOSE Superseded by part number: HX21E04086DX |
| 3. | 2420R349D115 | [1] | HOSE,1150.00 mm | KOB Superseded by part number: HX21E04115DX |
| 4. | 2420R537D135 | [1] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB Superseded by part number: HX21E06135DX |
| 5. | 2444R963D1 | [1] | FLEXIBLE HOSE | KOBASSY |
| 6. | 2444Z2525 | [1] | HYD CONNECTOR | KOB |
| 7. | HH25X04004G2 | [1] | HYD CONNECTOR | KOB(WITH FILTER) |
| 8. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 9. | ZH32X04000 | [2] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| 10. | ZH32X04006 | [3] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 3/8", O-Ring | KOB |
| 11. | ZH42X06000 | [1] | 45 ELBOW,Male, 30° Fl, PF 3/8" x PF 3/8", O-Ring | KOB |
| 12. | 2444Z2338 | [1] | ELBOW | KOB |
| 13. | 2444Z2894 | [1] | 90 ELBOW | KOB |
| 14. | HH45X04004G5 | [1] | ELBOW | KOBELBOW (WITH FILTER) |
| 15. | HH55Q06006G1 | [2] | TEE | KOB |
| 16. | YN64H01048P1 | [1] | TEE,90°, PF 3/8" x PF 3/8", O-Ring | KOB |
| 17. | ZM73C06020 | [2] | BOLT,M6x20mm - Course Thread | KOBSEMS |
| 18. | YN52S00048P1 | [1] | SENSOR | SMPressure (High Pressure) (Incls. O-Ring ZD12P01400) Superseded by part number: LS52S00015P1 |
| . . | ZD12P01400 | [1] | O-RING | KOB(Part of YN52S00048P1), ID 13.80 ± 0.19 x OD 18mm, Not Shown |
| 19. | LC52S00019P1 | [1] | SENSOR | SMPressure (Low Pressure) -- Replaced YX52S00013P1 (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of LC52S00019P1), ID 10.80 ± 0.18 x OD 15mm, Not Shown |
