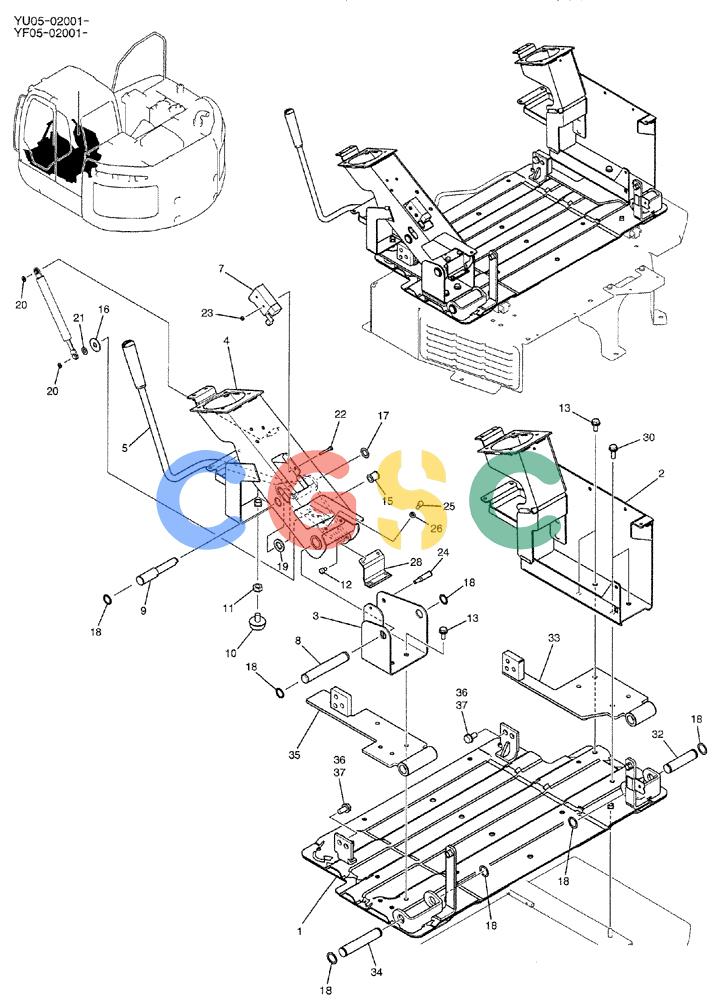

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-025) - CONTROL BOX ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
342 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB03M00036F1 | [1] | CONTROL BOX ASSY | |
| 1. | YN03M01990P3 | [1] | BRACKET | KOBBRACKET ASSY |
| 2. | YN03M01991P1 | [1] | SUPPORT | SMCONTROL BOX |
| 3. | YN03M01886P1 | [1] | BRACKET | SM |
| 4. | YN03M01889P1 | [1] | SUPPORT | SMCONTROL BOX Superseded by part number: YN03M01889P3 |
| 5. | YB03M01054P1 | [1] | LEVER | KOBASSY |
| 7. | YN50S00041F1 | [1] | LIMIT SWITCH | SMASSY, LIMIT |
| 8. | YN03M01904P1 | [1] | SHAFT | SM |
| 9. | YN03M01905P1 | [1] | SHAFT,20mm OD x 108mm L | SM |
| 10. | YN03M01906P1 | [1] | STOP LOCK | SM |
| 11. | YN03M01907P1 | [1] | NUT | SM Superseded by part number: ZN18F10006 |
| 12. | YN03M01908P2 | [1] | BOLT | SM |
| 13. | ZM73C08020 | [6] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 15. | YN03M01911P1 | [1] | BUSHING | SM |
| 16. | YN03M01912P1 | [1] | WASHER,11mm ID x 30mm OD x 2mm Thk | SM |
| 17. | YN03M01913P1 | [1] | RING | SMRETAINING |
| 18. | YN03M01914P1 | [7] | RING | SMRETAINING |
| 19. | YN03M01915P1 | [1] | WASHER | SM |
| 20. | YN03M01916P1 | [2] | RING | SMRETAINING |
| 21. | YN03M01917P1 | [1] | RING | SMRETAINING |
| 22. | YN03M01918P1 | [2] | BOLT | SM |
| 23. | YN03M01919P1 | [2] | NUT | SM |
| 24. | YN03M01920P1 | [1] | SHAFT,10mm OD x 46.85mm L | SM |
| 25. | YN03M01921P1 | [2] | SCREW | SM |
| 26. | YN03M01922P1 | [2] | WASHER | KOB Superseded by part number: ZW16K06000 |
| 28. | YN03M01924P1 | [1] | PLATE | KOB |
| 30. | ZM73C08025 | [2] | BOLT,M8x25mm - Course Thread | KOBM08x1.25x25mm (Incls. Washer) |
| 32. | YN03M01987P1 | [1] | SHAFT | SM |
| 33. | YN03M01986P2 | [1] | PILLAR | SM |
| 34. | YN03M01985P1 | [1] | SHAFT | SM |
| 35. | YN03M01984P2 | [1] | PILLAR | SM |
| 36. | YN03M01988P2 | [2] | BOLT | SM |
| 37. | YN03M01989P1 | [2] | WASHER | SM |
