纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-010) - PUMP ASSY, FUEL, P/N YF22P00005F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
788 次

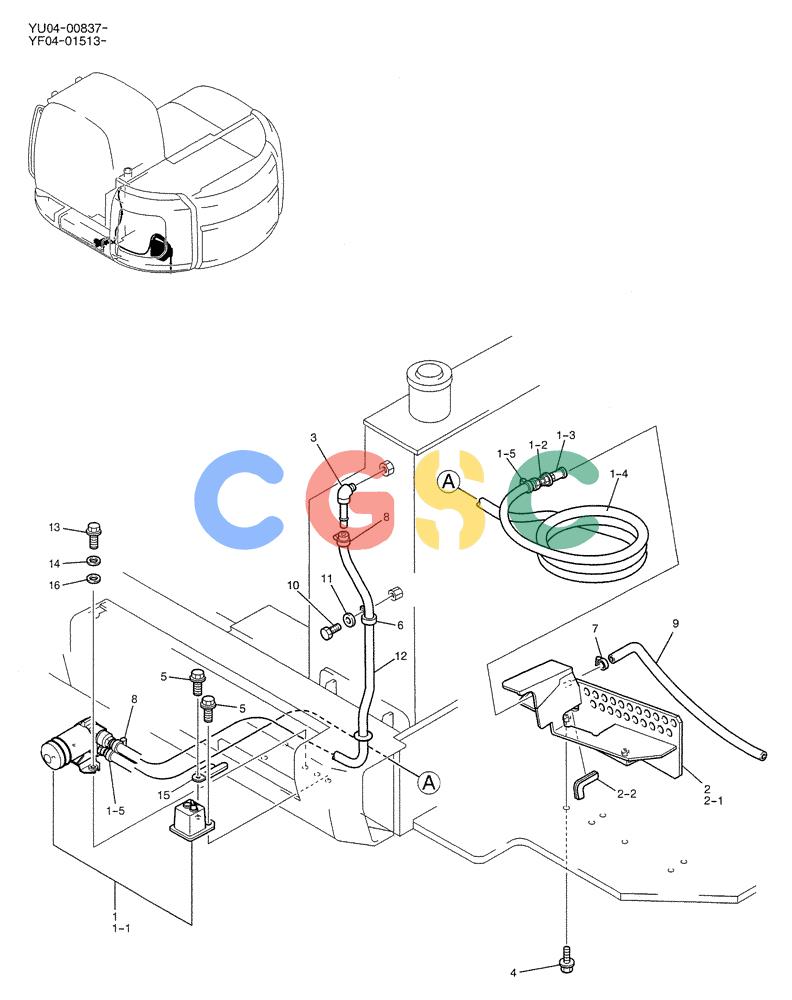

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF22P00005F1 | [1] | PUMP ASSY, FUEL | |
| 1. | YF22P00003F1 | [1] | FUEL PUMP | KOBASSY |
| 1-1. | YF22P00002F1 | [1] | FUEL PUMP | KOBASSY, SEE FIG 01-011 |
| 1-2. | 2444Z1233D7 | [1] | ELEC CONNECTOR | KOBNIPPLE |
| 1-3. | 2446Z143 | [1] | STRAINER ASSY. | KOB |
| 1-4. | YF22P01004D1 | [1] | HOSE | KOB |
| 1-5. | ZC15X02600 | [2] | CLAMP | KOBCLIP |
| 2-2. | PM22C01020D3 | [1] | SEAL PROTECTION | KOBTRIM |
| 3. | YT22P01004P1 | [1] | ELBOW | KOB |
| 4. | ZM32C12030 | [2] | BOLT | KOBSEMS |
| 5. | ZM61C06016 | [2] | BOLT | KOBSEMS |
| 6. | ZC46X25011 | [1] | CLIP | KOB |
| 7. | ZC16X01800 | [1] | CLIP | KOB |
| 8. | ZC16X02800 | [2] | CLIP | KOB |
| 10. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBCap |
| 11. | ZW16X10000 | [1] | WASHER | KOB |
| 12. | YF22P01004D2 | [1] | FLEXIBLE HOSE | KOB |
| 13. | ZS18C08030 | [3] | SCREW,Hex, M8 x 30mm | KOBCAP |
| 14. | ZW26X08000 | [3] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 15. | 2432R233D1 | [1] | CLIP | KOB |
| 16. | YR21C01161P1 | [3] | WASHER,9mm ID x 22mm OD x 2.3mm Thk | KOB |
