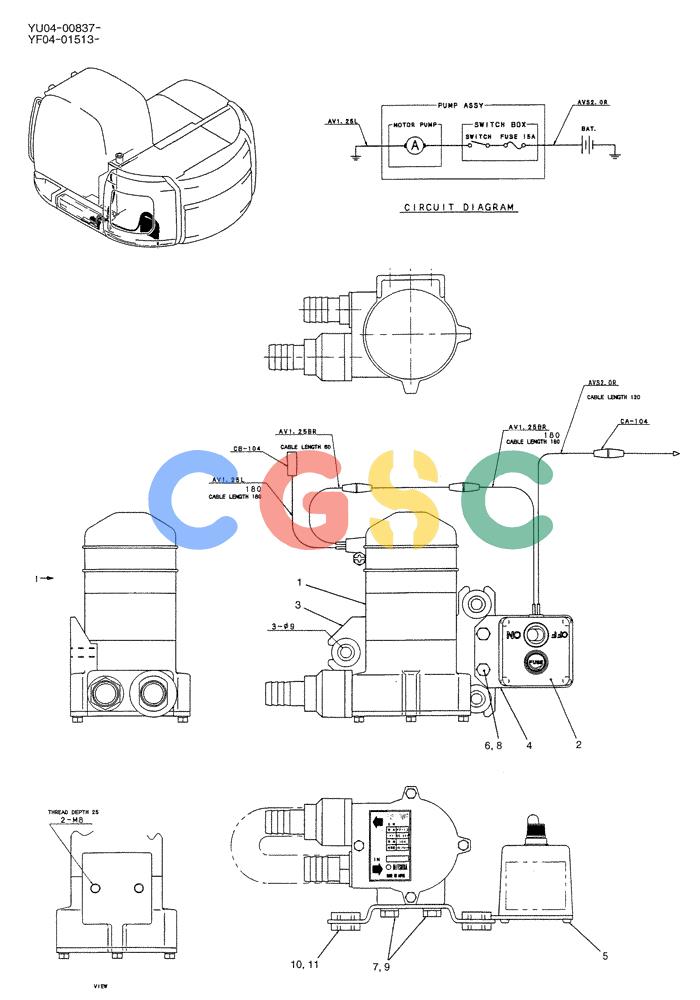

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-011) - PUMP ASSY FUEL, P/N YF22P00002F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
296 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF22P00002F1 | [1] | FUEL PUMP | KOBASSY |
| 1. | YF22P00002S001 | [1] | MOTOR | KOBELEC |
| 2. | YF22P00002S002 | [1] | SWITCH | KOB |
| 3. | YF22P00002S003 | [1] | PLATE | KOBPLATE |
| 4. | YF22P00002S004 | [1] | PLATE | KOB |
| 5. | YF22P00002S005 | [4] | SCREW,Phillips Drive, Pan HD, M4 x 14mm | KOBMACHINE Superseded by part number: ZS31C04014 |
| 11. | YF22P00002S011 | [3] | INSULATING PANEL | KOBRUBBER |
