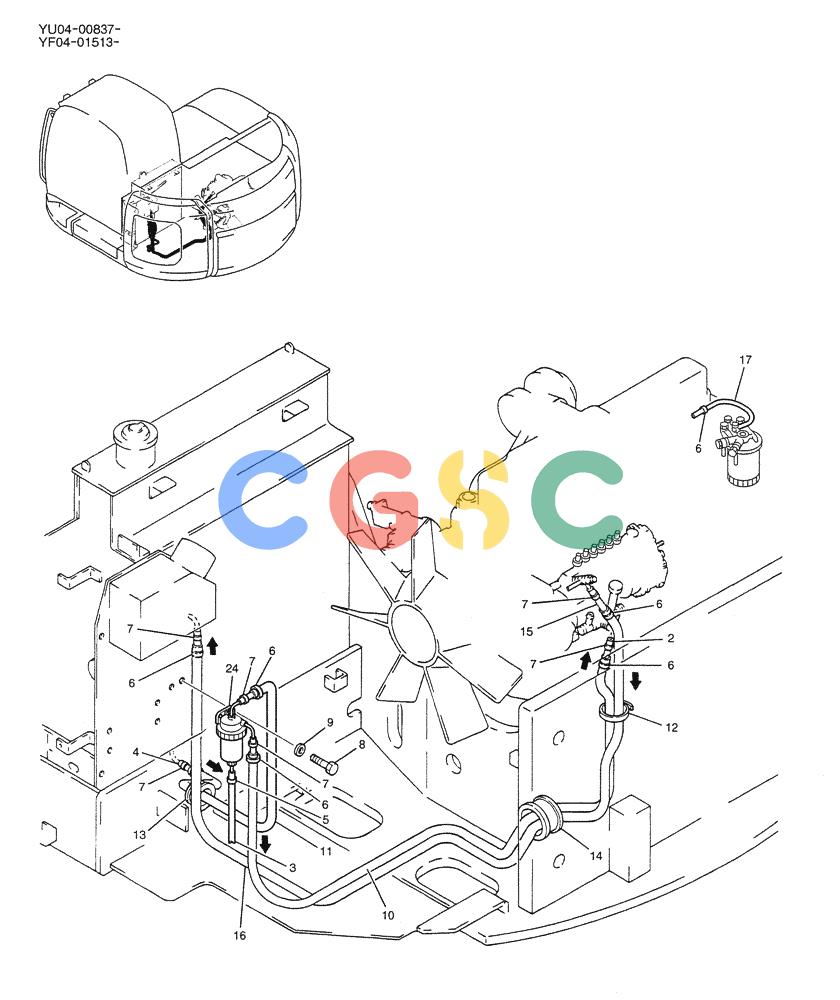

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-012) - FUEL LINES New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
716 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF21P00001F2 | [1] | FUEL LINES | |
| 4. | 2444R2492D080 | [1] | FLEXIBLE HOSE | KOB |
| 5. | ZC16X01200 | [1] | CLIP,8mm - 15mm | KOBClamp, Hose -- Min 08 x Max 15mm |
| 6. | PY01P01043D2 | [7] | CABLE TIE,4.60mm W x 202mm L | KOBWire Ties -- 160mm Long Superseded by part number: YT50C01100P1 |
| 7. | ZC16X01800 | [6] | CLIP | KOB |
| 8. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBCAP |
| 9. | ZW16X08000 | [2] | WASHER | KOB |
| 10. | 2418Z1333D37 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 2600mm Length | KOB |
| 11. | 2418Z1333D38 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 700mm Length | KOB |
| 12. | PY01P01043D3 | [1] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 13. | LE21P01002P1 | [1] | GROMMET | KOB |
| 14. | 2420Z2125 | [1] | GROMMET | KOB |
| 16. | 2418Z1333D18 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 2900mm Length | KOBTUBE |
| 24. | YF02P01001F2 | [1] | SEPARATOR | KOBASSY, WATER, SEE FIG 01-013 |
