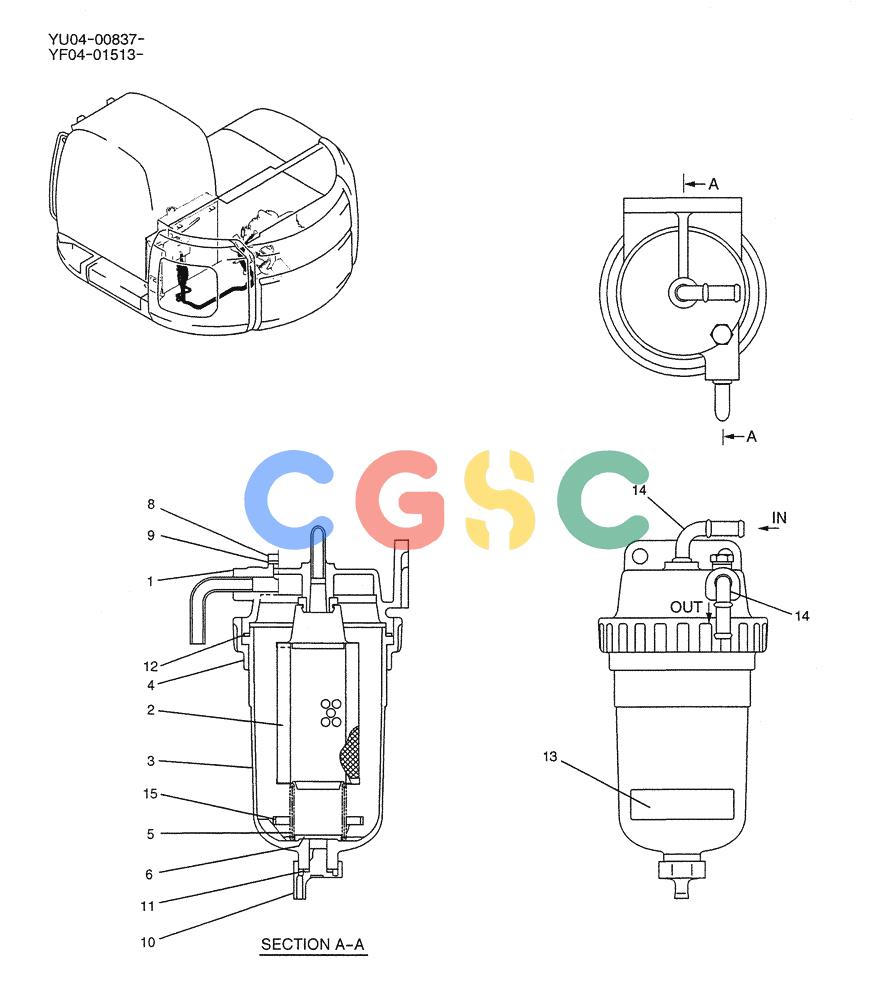

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-013) - SEPARATOR ASSY, WATER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
782 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF02P01001F2 | [1] | SEPARATOR | KOBASSY, WATER |
| 1. | LS02P01012S001 | [1] | COVER | KOBCOVER |
| 3. | LS02P01012S003 | [1] | BODY | KOBCASE |
| 4. | LS02P01012S004 | [1] | SNAP RING | KOBNUT |
| 5. | LS02P01012S005 | [1] | SPRING | KOB |
| 6. | LS02P01012S006 | [1] | RETAINER | KOB |
| 8. | LS02P01012S008 | [1] | PLUG | KOB |
| 9. | 2446U287S3 | [1] | SEAL | KOB |
| 10. | LS02P01012S010 | [1] | PLUG | KOBDRAIN |
| 11. | LS02P01012S011 | [1] | SEAL | KOB |
| 12. | LS02P01012S012 | [1] | O-RING | KOB |
| 13. | LS02P01012S013 | [1] | LABEL | |
| 14. | LS02P01012S014 | [2] | FLEXIBLE JOINT | KOB |
| 15. | LS02P01012S015 | [1] | SNAP RING | KOB |
