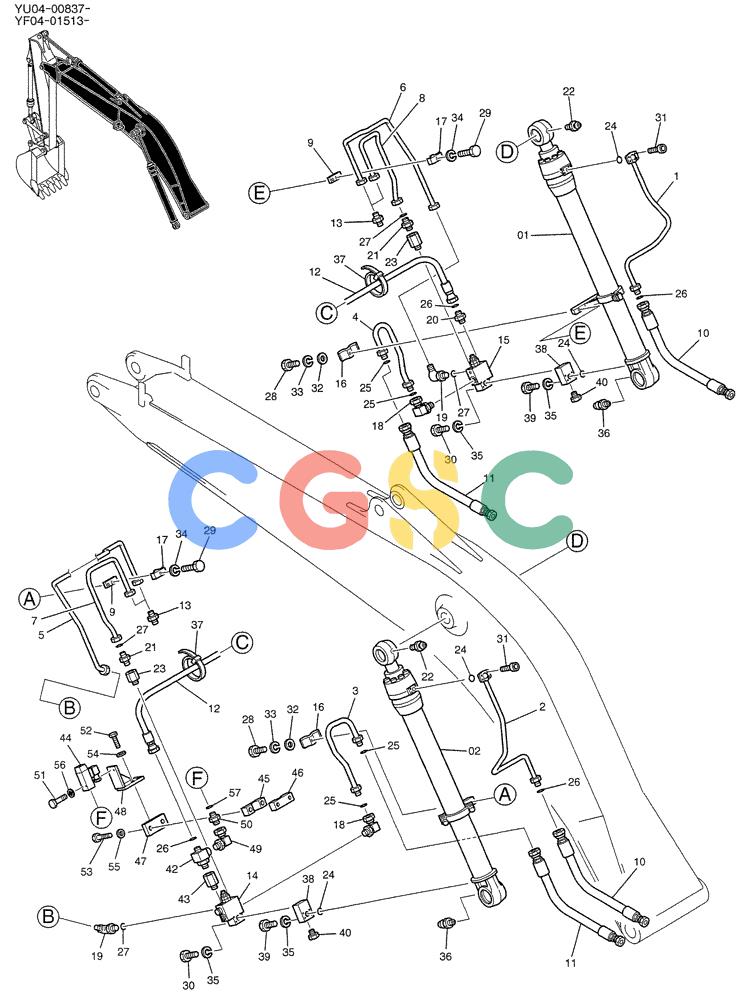

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (05-008) - HYD LINES, CYLINDER (BOOM SAFETY) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
153 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF42H00006F1 | [1] | HYD LINES, CYLINDER | |
| 9. | YN42H01547P1 | [2] | BLOCK | KOBTAPPED |
| 13. | 2444Z3499 | [4] | HYD CONNECTOR | KOB |
| 14. | YN28V00015F1 | [1] | HYDRAULIC VALVE | KOBASSY, HOLDING |
| 15. | YN28V00014F1 | [1] | VALVE | KOBASSY, HOLDING |
| 16. | 2432T2242 | [2] | CLAMP | KOB |
| 17. | ZC36X15009 | [2] | CLAMP | KOB |
| 18. | HG33H12012G1 | [2] | HYD CONNECTOR | KOBELBOW |
| 19. | ZA33F15006 | [2] | ELBOW | KOB |
| 20. | ZG23F10008 | [1] | HYD CONNECTOR | KOB |
| 21. | ZA23F15006 | [2] | HYD CONNECTOR | KOB |
| 22. | ZH22Z04000 | [2] | HYD CONNECTOR | KOB |
| 23. | HH25R06006GE | [2] | ELEC CONNECTOR | KOB |
| 24. | ZD12P02600 | [4] | O-RING | KOB |
| 25. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOB |
| 26. | ZD12A01600 | [4] | O-RING | KOB |
| 27. | ZD12P01400 | [4] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 28. | ZS18C10065 | [2] | SCREW,Hex, M10 x 65mm | KOBCAP |
| 29. | ZS18C08035 | [2] | SCREW,Hex, M8 x 35mm | KOBCAP |
| 30. | ZS28C10065 | [8] | SCREW,Hex Socket Head, M10 x 65mm | KOBCAP |
| 31. | ZS28C10030 | [8] | SCREW,Hex Socket Head, M10 x 30mm | KOBCAP |
| 32. | ZW16H10000 | [2] | WASHER | KOB |
| 33. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 34. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 35. | ZW26K10000 | [16] | LOCK WASHER | KOBLOCK |
| 36. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOBGREASE |
| 37. | PY01P01043D3 | [4] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 38. | YN42H01657P1 | [2] | U-BRACKET | KOBBLOCK |
| 39. | ZS28C10045 | [8] | SCREW,Hex Socket Head, M10 x 45mm | KOBCAP |
| 40. | ZE72X08000 | [2] | PLUG | KOB |
| 42. | YN42H01602P1 | [1] | TEE | KOB |
| 43. | 2444Z3713 | [1] | HYD CONNECTOR | KOB |
| 44. | YN50S00031F1 | [1] | PRESSURE SWITCH | KOBOIL |
| 45. | 2432T5004 | [1] | CLAMP | KOB |
| 46. | 2432T5003 | [1] | CLAMP | KOB |
| 47. | YB42H01094P1 | [1] | PLATE | KOB |
| 48. | YN42H02187P1 | [1] | U-BRACKET | KOB |
| 49. | HG33H04004G1 | [1] | ELBOW | KOB |
| 50. | HG23F04004G1 | [1] | HYD CONNECTOR | KOB |
| 51. | ZS18C05040 | [2] | CAPSCREW,Hex, M5 x 40mm | KOBSCREW CAP |
| 52. | ZS18C08025 | [2] | SCREW,Hex, M8 x 25mm | KOBCAP |
| 53. | ZS18C12065 | [2] | SCREW,Hex, M12 x 65mm | KOBCAP |
| 54. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 55. | ZW16H12000 | [2] | WASHER | KOB |
| 56. | ZW26X05000 | [2] | LOCK WASHER | KOBLOCK |
| 57. | YY42H01330P1 | [1] | O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro | KOB |
