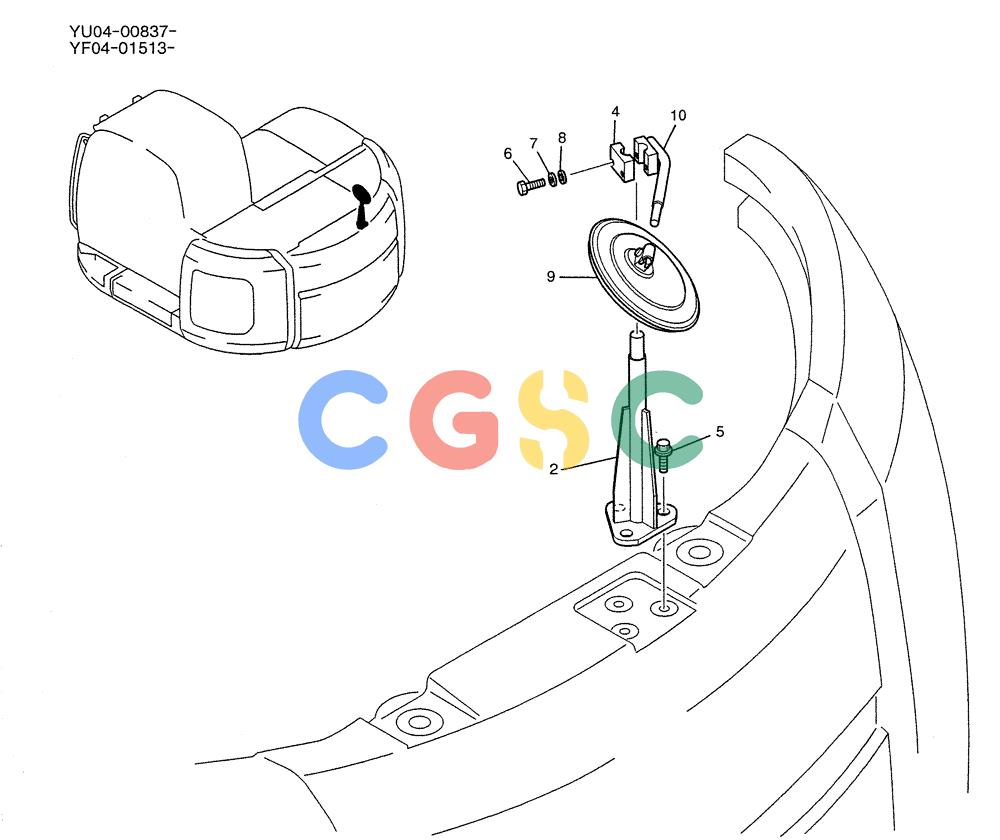

纽荷兰零件查询(E235SRLC) - CRAWLER EXCAVATOR BTW YU04-00837 - YU04-01417 (01-034) - MIRROR INSTAL, P/N LC52C00002F2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
570 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LC52C00002F2 | [1] | MIRROR | KOBINSTAL |
| 2. | LC52C01001P1 | [1] | STAY | KOBSTAY |
| 4. | LC52C01003P1 | [1] | CLAMP | KOB |
| 5. | ZM32C12025 | [3] | BOLT | KOBSEMS |
| 6. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 7. | ZW26X08000 | [2] | LOCK WASHER | KOBLock Superseded by part number: 83990583 |
| 8. | ZW16X08000 | [2] | WASHER | KOB |
| 9. | YT52C00006P1 | [1] | MIRROR,210mm x 210mm | KOB |
| 10. | LC52C01004P1 | [1] | STAY | KOBSTAY |
