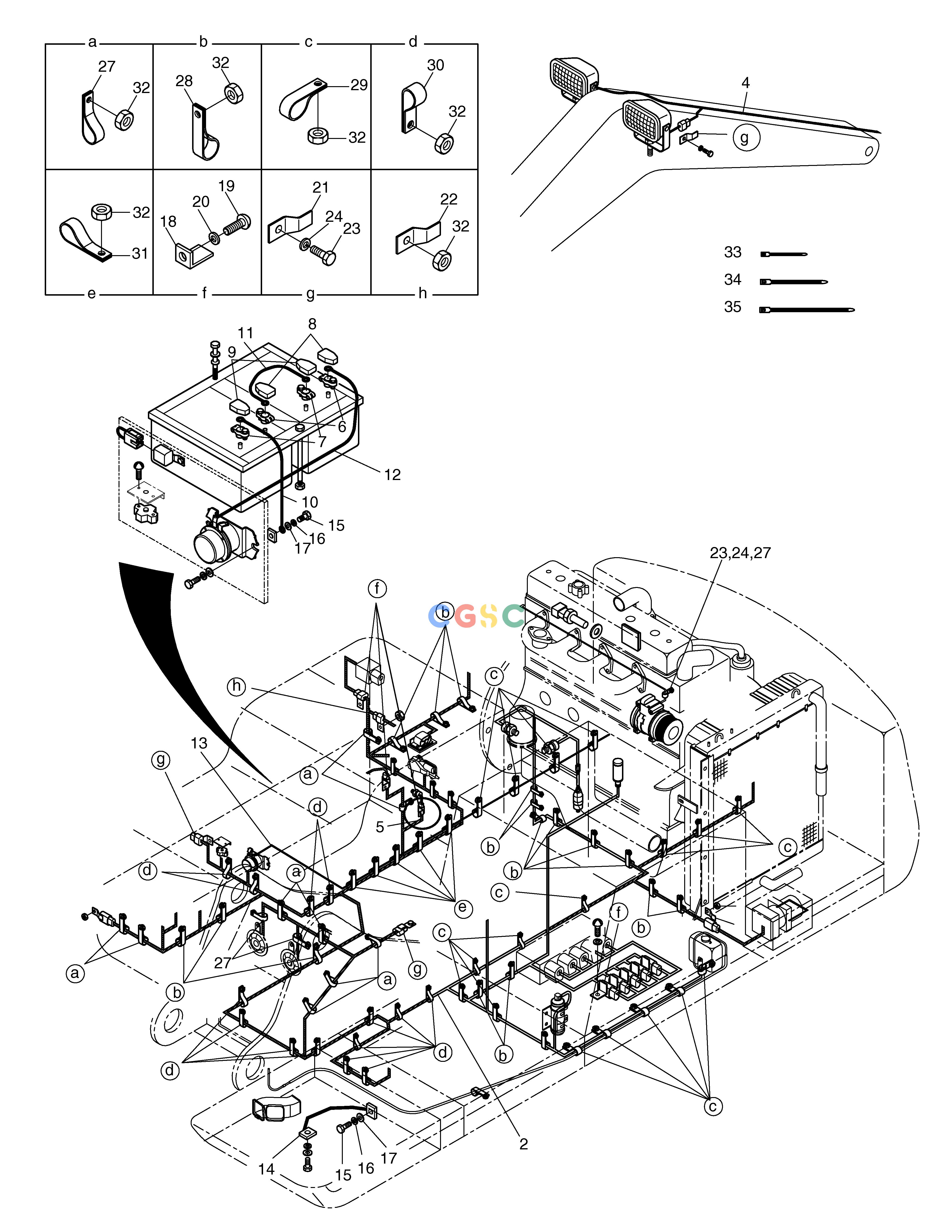

斗山零件查询ELECTRIC WIRING(1)-RELATED PARTS SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
904 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1168
|
[-] |
ELECTRIC PARTS
|
|
| 10. |
2553-1275D5
|
[1] |
CABLE;EARTH
|
|
| 11. |
2553-1275D6
|
[1] |
CABLE;BATT-BATT 60R-250L
|
|
| 12. |
2553-1275D9
|
[1] |
CABLE
|
|
| 12. |
2553-1275D31
|
[1] |
CABLE;BATT-BATT RELAY
|
|
| 13. |
2553-1275D25
|
[1] |
CABLE;RY-EARTH 60R-3700L
|
|
| 14. |
2553-1275D5
|
[1] |
CABLE;EARTH
|
|
| 15. |
S0511653
|
[5] |
BOLT
|
|
| 16. |
S5102603
|
[4] |
. WASHER
|
|
| 17. |
S5010613
|
[5] |
WASHER
|
|
| 18. |
2195-3500
|
[8] |
BRACKET
|
|
| 18. |
2195-3500
|
[7] |
BRACKET
|
|
| 19. |
S3450953
|
[7] |
SCREW
|
|
| 19. |
S3450953
|
[6] |
SCREW
|
|
| 2. |
2530-1630A
|
[1] |
HARNESS;MAIN
|
|
| 2. |
2530-1630B
|
[1] |
HARNESS;MAIN
|
|
| 2. |
2530-1630C
|
[1] |
HARNESS;MAIN
|
|
| 2. |
2530-1630E
|
[1] |
HARNESS;MAIN
|
2530-1630G
|
| 2. |
2530-1630G
|
[1] |
HARNESS;MAIN
|
2530-1630H
|
| 2. |
2530-1630H
|
[1] |
HARNESS;MAIN
|
|
| 2. |
2530-1630I
|
[1] |
HARNESS;MAIN
|
|
| 2. |
2530-1630J
|
[1] |
HARNESS;MAIN
|
|
| 2. |
2530-1630K
|
[1] |
HARNESS;MAIN
|
|
| 20. |
S5102303
|
[7] |
. WASHER
|
|
| 20. |
S5102303
|
[6] |
. WASHER
|
|
| 21. |
2197-1660
|
[5] |
BRACKET
|
|
| 22. |
2197-1661
|
[1] |
BRACKET
|
|
| 23. |
S0508653
|
[3] |
BOLT
|
|
| 24. |
S5102503
|
[4] |
. WASHER
|
|
| 27. |
2124-1509D1
|
[13] |
CLIP
|
|
| 28. |
2124-1509D2
|
[15] |
CLIP
|
|
| 29. |
2124-1509D3
|
[22] |
CLIP D24/M8
|
|
| 30. |
2124-1509D4
|
[15] |
CLIP D30/M8
|
|
| 31. |
2124-1509D5
|
[5] |
CLIP D36/M8
|
|
| 32. |
2121-1305
|
[72] |
NUT
|
|
| 33. |
2124-1622D1
|
[4] |
CLIP,BAND
|
|
| 34. |
2124-1622D2
|
[28] |
CLIP
|
|
| 35. |
2124-1622D3
|
[2] |
CLIP;BAND 280L
|
|
| 4. |
2530-1609D4
|
[1] |
HARNESS;WORKING LAMP
|
|
| 5. |
2530-1400
|
[1] |
HARNESS;PRESS SWITCH
|
|
| 6. |
1550-1004
|
[2] |
TERMINAL;BATTERY(+)
|
2550-1014D1
|
| 6. |
2550-1014D1
|
[2] |
TERMINAL,BATTERY(+)
|
|
| 7. |
1550-1003
|
[2] |
TERMINAL;BATTERY(-)
|
2550-1014D2
|
| 7. |
2550-1014D2
|
[2] |
TERMINAL,BATTERY(-)
|
|
| 8. |
2160-1212
|
[2] |
CAP,BATT. TML(+)
|
|
| 9. |
2160-1213
|
[2] |
CAP,BATT. TML(-)
|
|
