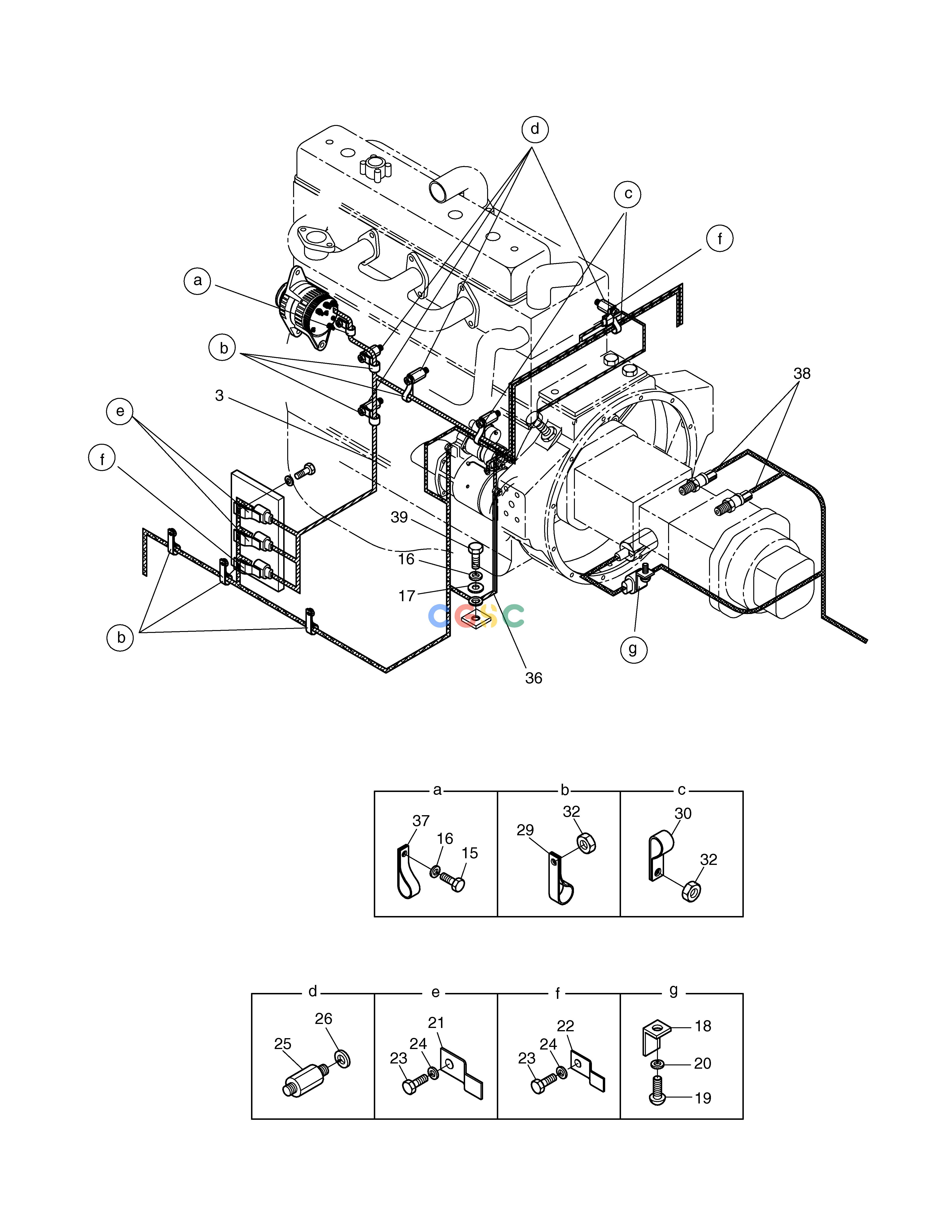

斗山零件查询ELECTRIC WIRING(2)-ENGINE SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
320 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2500-1168
|
[-] |
ELECTRIC PARTS
|
|
| 15. |
S0511653
|
[1] |
BOLT
|
|
| 16. |
S5102603
|
[2] |
. WASHER
|
|
| 17. |
S5010613
|
[1] |
WASHER
|
|
| 18. |
2195-3500
|
[1] |
BRACKET
|
|
| 19. |
S3450953
|
[1] |
SCREW
|
|
| 20. |
S5102303
|
[1] |
. WASHER
|
|
| 21. |
2197-1660
|
[2] |
BRACKET
|
|
| 22. |
2197-1661
|
[1] |
BRACKET
|
|
| 23. |
S0508653
|
[3] |
BOLT
|
|
| 24. |
S5102503
|
[3] |
. WASHER
|
|
| 25. |
2120-2159
|
[3] |
BOLT
|
|
| 26. |
S5102603
|
[3] |
. WASHER
|
|
| 29. |
2124-1509D3
|
[6] |
CLIP D24/M8
|
|
| 3. |
2530-1631A
|
[1] |
HARNESS;ENGINE
|
|
| 3. |
2530-1631B
|
[1] |
HARNESS;ENGINE
|
2530-1631C
|
| 3. |
2530-1631C
|
[1] |
HARNESS;ENGINE
|
|
| 30. |
2124-1509D4
|
[2] |
CLIP D30/M8
|
|
| 32. |
2121-1305
|
[8] |
NUT
|
|
| 36. |
2553-1275D5
|
[1] |
CABLE;EARTH
|
553-00001D2
|
| 36. |
553-00001D2
|
[1] |
CABLE;ENGINE EARTH
|
|
| 37. |
2124-1353D13
|
[1] |
CLIP
|
|
| 38. |
2530-1679
|
[2] |
HARNESS;PRESSURE SENSOR
|
|
| 39. |
S0512053
|
[1] |
BOLT
|
|
