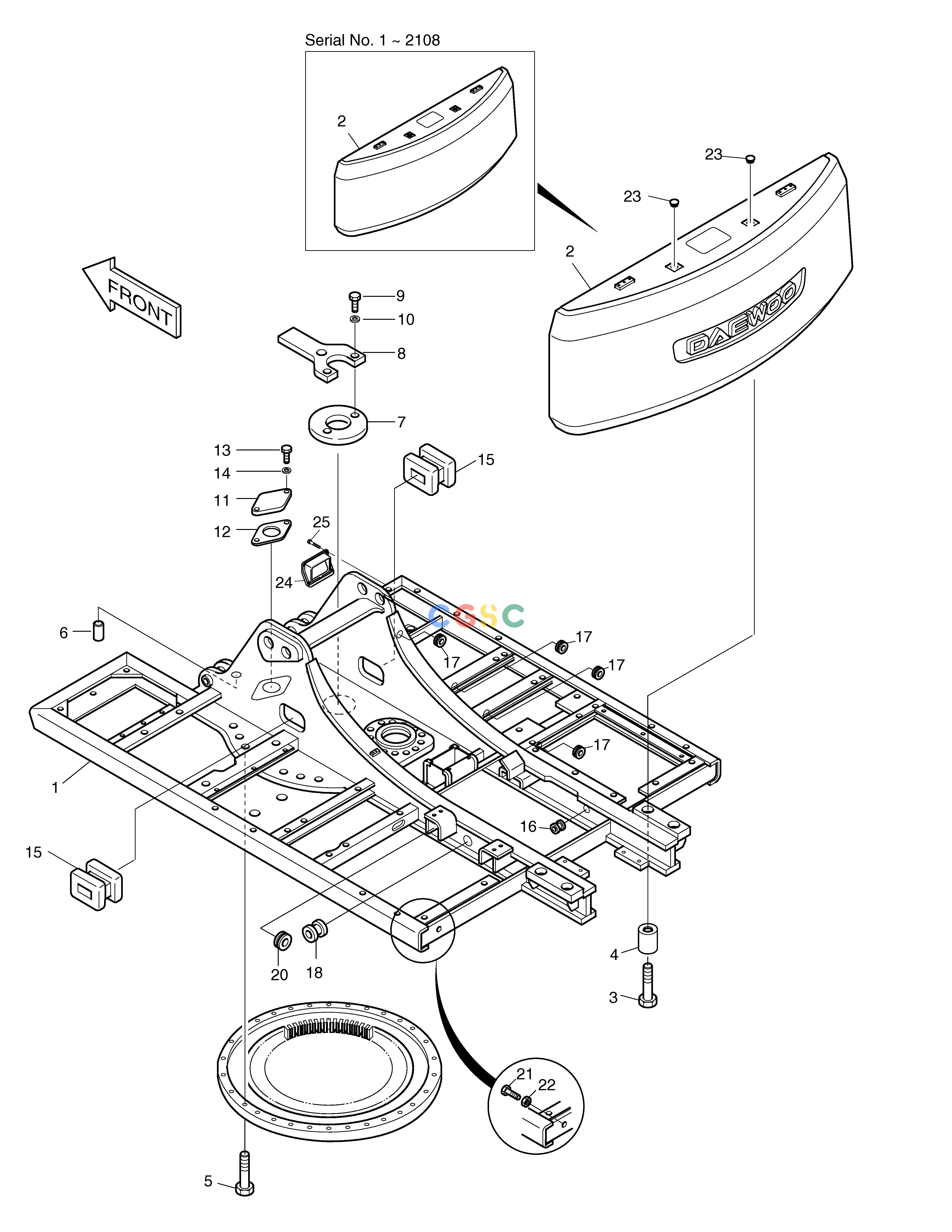

斗山零件查询MAIN FRAME SOLAR 290LC-V Doosan parts catalog online
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
2600-1095A
|
[-] |
FRAME ASS'Y
|
|
| 1. |
2603-1461C
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1461E
|
[1] |
FRAME;MAIN
|
|
| 1. |
2603-1461G
|
[1] |
FRAME;MAIN
|
2603-1461H
|
| 1. |
2603-1461H
|
[1] |
FRAME;MAIN
|
2603-1461J
|
| 1. |
2603-1461J
|
[1] |
FRAME;MAIN
|
|
| 10. |
S5102703
|
[3] |
WASHER
|
|
| 11. |
2403-1002
|
[1] |
COVER
|
|
| 12. |
2180-1017A
|
[1] |
PACKING
|
|
| 13. |
S0511853
|
[2] |
BOLT
|
|
| 14. |
S5102603
|
[2] |
. WASHER
|
|
| 15. |
2160-1201D9
|
[2] |
BUSHING;RUBBER
|
|
| 16. |
2160-1004D41
|
[1] |
BUSHING;RUBBER
|
|
| 17. |
2160-1004D31
|
[4] |
BUSHING;RUBBER
|
|
| 18. |
2160-1004D42
|
[1] |
BUSHING;RUBBER
|
|
| 2. |
2624-1090B
|
[1] |
WEIGHT;COUNTER
|
|
| 2. |
2624-1090C
|
[1] |
WEIGHT;COUNTER
|
2624-1090E
|
| 2. |
2624-1090E
|
[1] |
WEIGHT;COUNTER
|
2624-1090G
|
| 2. |
2624-1090G
|
[1] |
WEIGHT;COUNTER
|
|
| 20. |
2160-1201D12
|
[1] |
BUSHING,RUBBER
|
|
| 21. |
S0521961
|
[2] |
BOLT M16X2.0X65
|
|
| 22. |
S4012933
|
[2] |
NUT
|
|
| 23. |
2160-9011
|
[2] |
CAP
|
|
| 23. |
2160-9034
|
[2] |
CAP
|
|
| 24. |
2621-3783
|
[1] |
COVER;LAMP
|
|
| 25. |
S3450983
|
[4] |
SCREW
|
|
| 3. |
2120-2130
|
[4] |
BOLT M39X3.0X260
|
|
| 4. |
2114-1835
|
[4] |
SPACER
|
|
| 5. |
S0775861
|
[35] |
BOLT M24X2.0X125
|
|
| 6. |
2123-1107D4
|
[2] |
PIN;KNOCK
|
|
| 7. |
2160-9010
|
[1] |
COVER;RUBBER
|
|
| 8. |
2195-2786A
|
[1] |
BRACKET
|
|
| 9. |
S0515053
|
[3] |
BOLT M12X1.75X25
|
|
| 9. |
S0515253
|
[3] |
. BOLT
|
|
