纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (02-007-00[01]) - EXHAUST New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
415 次

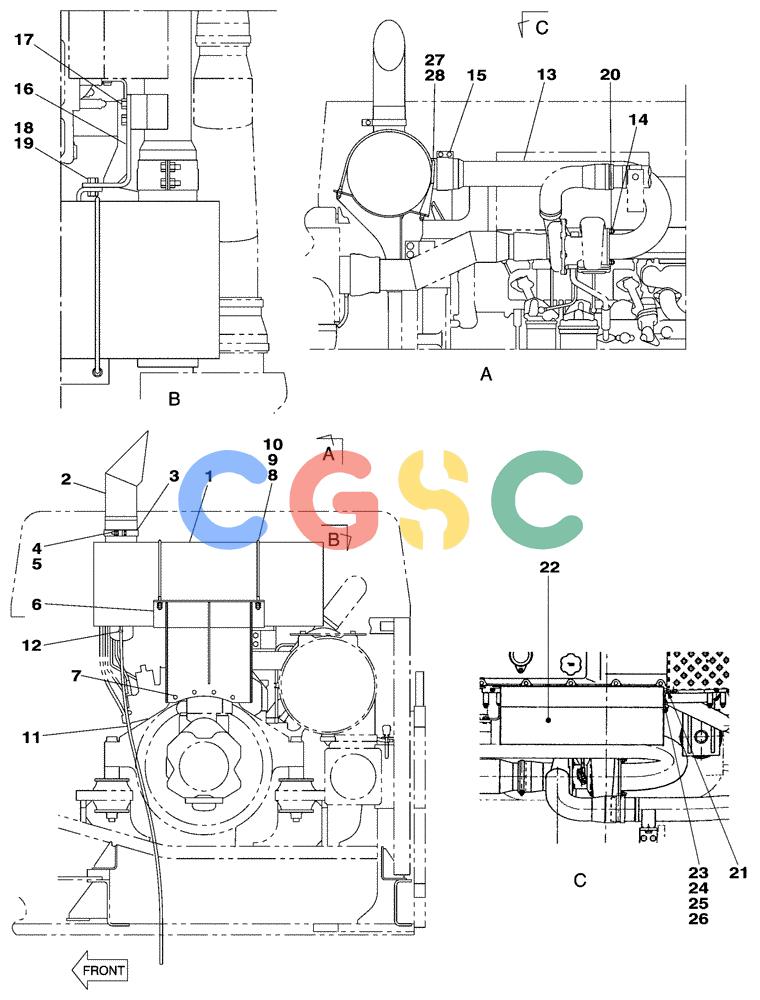

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | KUH0181 | [1] | MUFFLER | SUM |
| 2. | KUH0182 | [1] | PIPE ASSY. | SUM |
| 3. | KUH0183 | [1] | CLAMP | SUM |
| 4. | 827-10045 | [1] | BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9 | CAS Superseded by part number: 86508618 |
| 5. | 162R010VR | [2] | NUT | SUM Superseded by part number: 86500689 |
| 6. | KUH0184 | [2] | BRACKET | SUM Superseded by part number: KUH10340 |
| 7. | 166352A1 | [4] | BOLT | SUM |
| 8. | KUH0185 | [2] | U-BOLT | SUM Superseded by part number: CAN0694, KHH11440, KHH11410 |
| 9. | 150472A1 | [8] | FLANGE NUT | SUM Superseded by part number: KHH11440 |
| 10. | 164R010SR | [4] | JAM NUT | SUM Superseded by part number: CAN0694 |
| 11. | KHH0428 | [1] | TUBE | SUM |
| 12. | 165952A1 | [1] | MOUNTING CLIP | SUM |
| 13. | KUH0186 | [1] | PIPE, EXHAUST SYSTEM | SUM |
| 14. | 153856A1 | [6] | NUT | SUM |
| 15. | KUH0187 | [1] | COLLAR | SUM |
| 16. | KUH0188 | [1] | BRACKET | SUM |
| 18. | 627-12035 | [2] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 19. | 150811A1 | [2] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 20. | 150409A1 | [6] | WASHER | SUM15 x 21 x 3,2 mm |
| 21. | KUH0189 | [1] | BRACKET | SUM |
| 22. | KUH0190 | [1] | COVER | SUM Superseded by part number: KUH10360 |
| 23. | 167182A1 | [6] | BOLT,Sems, M8 x 25mm | SUMM8 x 25 |
| 24. | 895-11008 | [3] | WASHER,M8 x 16 x 1.6 | CAS Superseded by part number: 86624184 |
| 25. | 183-108VR | [3] | SPRING WASHER | SUM |
| 26. | 829-1408 | [3] | NUT,Hex, M8 x 1.25, Cl 10.9 | CAS Superseded by part number: 43362, 87778059 |
| 27. | KUH0201 | [1] | COVER | SUMcover Superseded by part number: KUH10350 |
| 28. | 166351A1 | [2] | BOLT,Sems, M10 x 20mm | SUMM10 x 20 |
