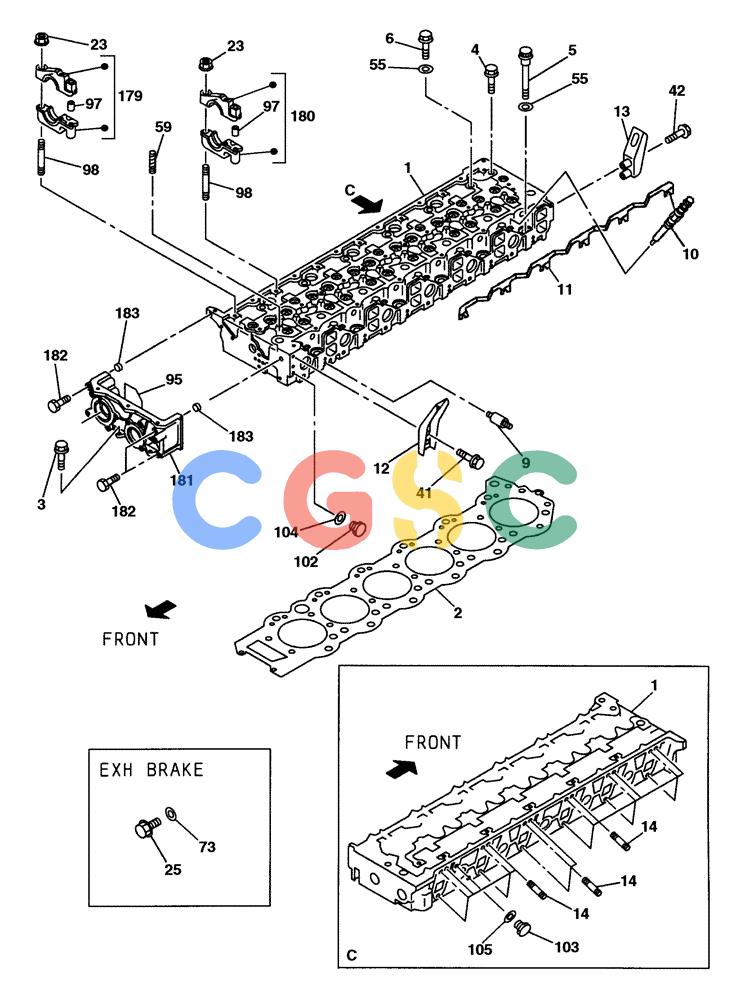

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (02-041-00[01]) - CYLINDER HEAD - GASKET New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 288542A1 | [1] | HEAD (CYLINDER) | ISUCYLINDER HEAD Superseded by part number: 87738593 |
| 2. | 288543A1 | [1] | GASKET | ISU Superseded by part number: 76614954 |
| 3. | 288544A1 | [2] | SPECIAL BOLT | ISUM10 x 35 Superseded by part number: 87577258 |
| 4. | 288545A1 | [1] | SPECIAL BOLT | ISUM12 x 120 |
| 5. | 288546A1 | [6] | SPECIAL BOLT | ISUM18 x 115 |
| 6. | 288547A1 | [20] | SPECIAL BOLT | ISUM18 x 159 |
| 9. | 288554A1 | [12] | STUD | ISU |
| 10. | 288555A1 | [6] | GLOW PLUG | ISU Superseded by part number: 72109855 |
| 11. | 426421A1 | [1] | PIPE | ISU |
| 12. | 288557A1 | [1] | HANGER | ISU |
| 13. | 288558A1 | [2] | HANGER | ISU |
| 14. | 288551A1 | [18] | STUD | ISUM10 x 110 |
| 23. | 288552A1 | [14] | FLANGE NUT | ISUM4 |
| 25. | 289998A1 | [2] | PLUG | ISU |
| 41. | 442230A1 | [2] | BOLT | ISU |
| 42. | 288559A1 | [4] | BOLT | ISUM12 x 50 |
| 55. | 288560A1 | [26] | WASHER | ISU |
| 59. | 288564A1 | [12] | GUIDE | ISU |
| 73. | 288565A1 | [2] | GASKET | ISU Superseded by part number: 72110175 |
| 95. | 288566A1 | [1] | CYLINDER HEAD GASKET | ISU Superseded by part number: 72110176 |
| 97. | 288567A1 | [4] | DOWEL | ISU |
| 98. | 288568A1 | [14] | STUD | ISUM12x 120 |
| 102. | 288569A1 | [1] | PLUG | ISUM10 x 7 |
| 103. | 288570A1 | [1] | PLUG | ISUM8 x 6 |
| 104. | 289092A1 | [1] | GASKET | ISU |
| 179. | 288572A1 | [1] | SUPPORT | ISU |
| 180. | 288573A1 | [6] | SUPPORT | ISU |
| 181. | 288574A1 | [1] | HOUSING | ISU |
| 182. | 288575A1 | [7] | BOLT | ISUM10 x 80 |
| 183. | 288576A1 | [2] | DOWEL | ISU |
