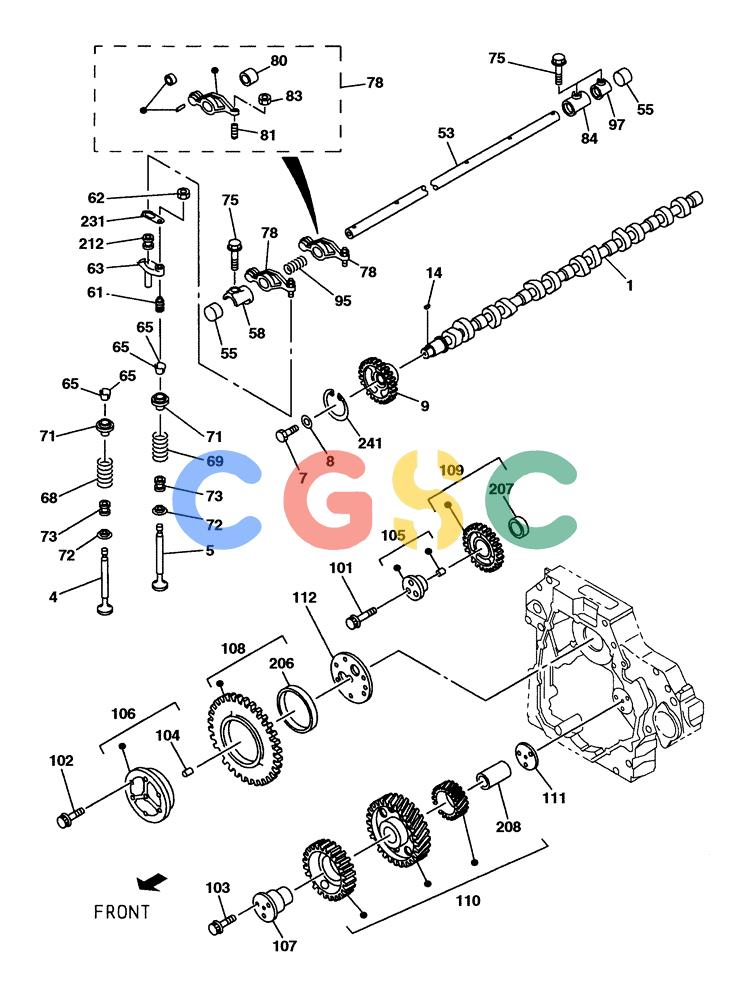

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (02-045-00[01]) - CAMSHAFT - VALVE MECHANISM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
326 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 288608A1 | [1] | CAMSHAFT | ISU |
| 4. | 288609A1 | [12] | STD INLET VALVE | ISUSTD ENGINE INLET VALVE |
| 5. | 288610A1 | [12] | STD EXHAUST VALVE | ISUSTD ENGINE EXHAUST VALVE |
| 7. | 289993A1 | [1] | BOLT | ISU Superseded by part number: 71455153 |
| 8. | 289838A1 | [1] | WASHER | ISU |
| 9. | 288611A1 | [1] | GEAR | ISU |
| 14. | 288612A1 | [1] | KEY | ISU Superseded by part number: 71455150 |
| 53. | 288613A1 | [1] | SHAFT | ISU |
| 55. | 288614A1 | [2] | PLUG | ISU Superseded by part number: 359866A1 |
| 58. | 288615A1 | [1] | SUPPORT | ISU |
| 61. | 288616A2 | [12] | ADJUSTMENT SCREW | ISU |
| 62. | 288617A1 | [12] | LOCK NUT | ISUM10 |
| 63. | 288618A1 | [12] | BRIDGE | ISU |
| 65. | 288619A1 | [48] | SPLIT COLLAR | ISU |
| 68. | 288620A1 | [12] | VALVE SPRING | ISU |
| 69. | 288621A1 | [12] | VALVE SPRING | ISU |
| 71. | 288623A1 | [24] | SPRING SEAT | ISU |
| 72. | 288624A1 | [24] | SPRING SEAT | ISU |
| 73. | 288625A1 | [24] | SEAL | ISU Superseded by part number: 72110227 |
| 75. | 288626A1 | [7] | BOLT | ISUM12 x 97 |
| 78. | 288627A1 | [12] | ROCKER | ISU |
| 80. | 288628A1 | [12] | BUSHING | ISU Superseded by part number: 418091A1 |
| 81. | 288629A1 | [12] | ADJUSTMENT SCREW | ISU |
| 83. | 288630A1 | [12] | NUT | ISUM12 Superseded by part number: 76593673 |
| 84. | 288631A1 | [5] | SUPPORT | ISU |
| 95. | 288632A1 | [6] | SPRING | ISU |
| 97. | 288633A1 | [1] | SUPPORT | ISU |
| 101. | 288634A1 | [3] | BOLT | ISUM10 x 40 |
| 102. | 288635A1 | [6] | BOLT | ISUM10 x 60 Superseded by part number: 87601343 |
| 103. | 288590A1 | [3] | BOLT | ISUM12 x 114 |
| 104. | 288636A1 | [1] | DOWEL | ISU |
| 105. | 288637A1 | [1] | IDLE SHAFT | ISU |
| 106. | 288638A1 | [1] | IDLE SHAFT | ISU |
| 107. | 288639A1 | [1] | IDLE SHAFT | ISU |
| 108. | 419802A1 | [1] | GEAR-SET | ISU |
| 109. | 419803A1 | [1] | GEAR-SET | ISU |
| 110. | 419804A1 | [1] | GEAR-SET | ISU Superseded by part number: 84189771 |
| 111. | 419805A1 | [1] | WASHER, THRUST | ISU |
| 112. | 419806A1 | [1] | WASHER, THRUST | ISU |
| 206. | 419807A1 | [1] | BUSHING | ISU |
| 207. | 419808A1 | [1] | BUSHING | ISU Superseded by part number: 84155453 |
| 208. | 419809A1 | [1] | BUSHING | ISU |
| 212. | 288641A1 | [12] | CAP | ISU |
| 231. | 288928A1 | [12] | LOCKING PLATE | ISU |
| 241. | 426277A1 | [1] | CIRCLIP | ISU |
