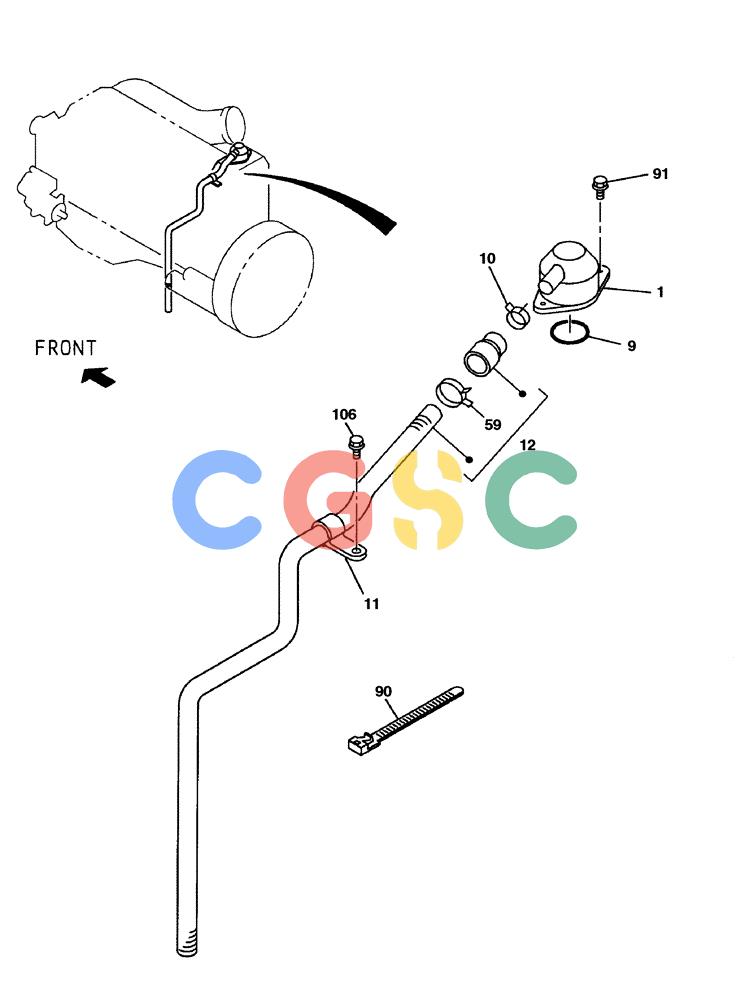

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (02-051-00[01]) - BREATHER - CYLINDER HEAD COVER New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
456 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 426076A1 | [1] | BREATHER | ISU |
| 9. | 426077A1 | [1] | GASKET | ISU Superseded by part number: 72110327 |
| 10. | 426078A1 | [1] | CLIP | ISU |
| 11. | 426083A1 | [1] | CLIP | ISU |
| 12. | 426085A1 | [1] | AIR HOSE | ISU |
| 59. | 426086A1 | [1] | CLIP | ISU Superseded by part number: 437887A1 |
| 90. | 426088A1 | [1] | CLIP | ISU |
| 91. | 289023A1 | [2] | BOLT | ISU |
| 106. | 288983A1 | [1] | BOLT | ISU Superseded by part number: 71456268 |
