纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (03-015-00[01]) - FUEL FILTER - SUPPORT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
614 次

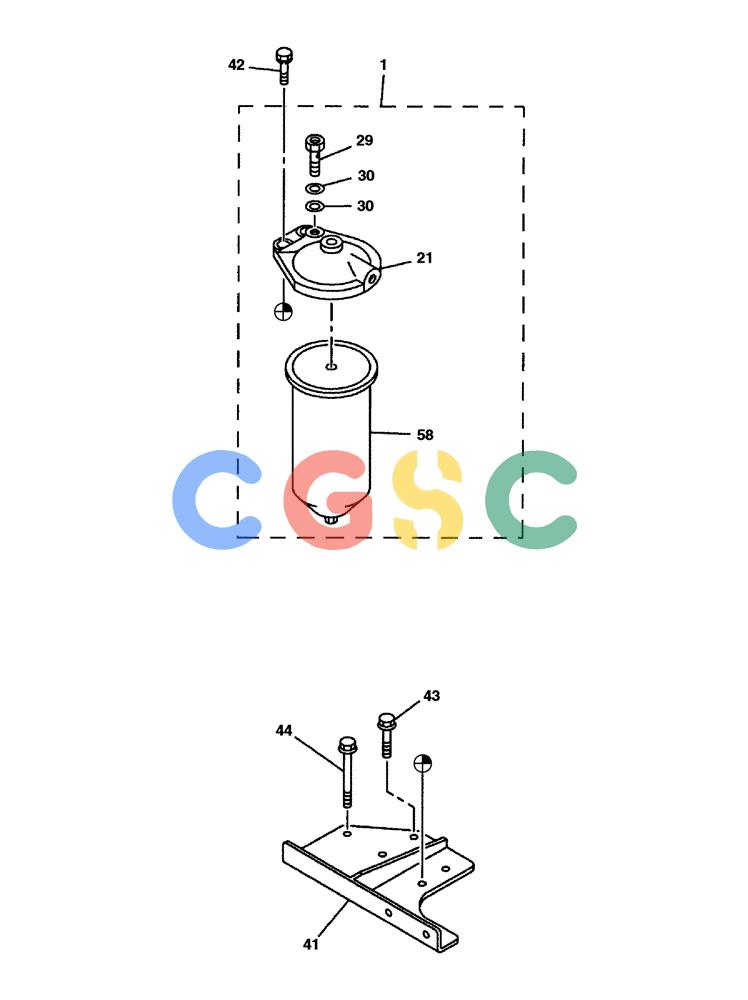

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 426426A1 | [1] | FILTER ASSY | SUM |
| 21. | 426427A1 | [1] | FILTER HEAD | ISU Superseded by part number: 72109766 |
| 29. | 426428A1 | [1] | BLEED SCREW | ISU Superseded by part number: 71455186 |
| 30. | 426423A1 | [2] | GASKET | ISU Superseded by part number: 289094A1 |
| 41. | 426429A1 | [1] | SUPPORT | ISU |
| 42. | 362184A2 | [2] | BOLT | ISUM10 x 30 |
| 43. | 288993A1 | [2] | FLANGE BOLT | ISUM10 x 20 |
| 44. | 419923A1 | [1] | BOLT | ISUM10 x 45 |
| 58. | 87418199 | [1] | FUEL FILTER | ISU Superseded by part number: 84160457 |
