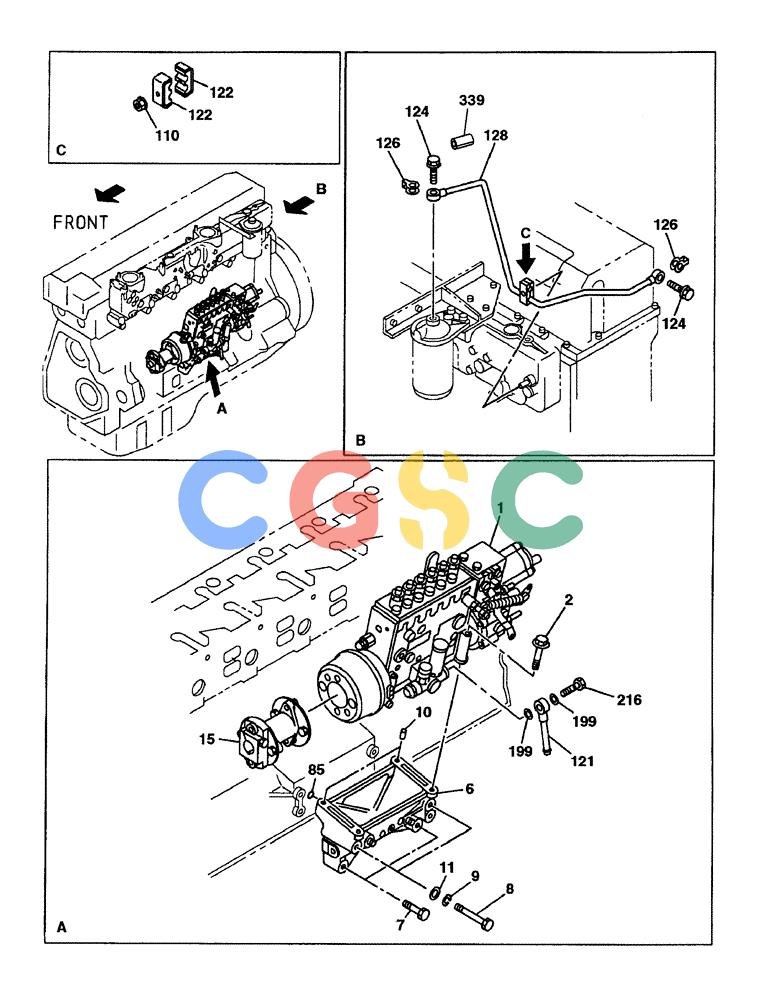

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (03-017-00[01]) - FUEL INJECTION PUMP - FUEL SYSTEM New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
638 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87426951 | [1] | PUMP, FUEL INJECTION | ISU |
| 2. | 426199A1 | [4] | BOLT | ISUM10 x 85 |
| 6. | 426392A1 | [1] | SUPPORT | ISU Superseded by part number: 72110383 |
| 7. | 426393A1 | [2] | BOLT | ISUM14 x 90 |
| 8. | 426394A1 | [2] | BOLT | ISUM14 x 117 |
| 9. | 86988905 | [2] | WASHER | ISU Superseded by part number: 76587637 |
| 10. | 426396A1 | [2] | DOWEL | ISU |
| 11. | 426397A1 | [2] | WASHER,14mm ID x 26mm OD x 2.3mm Thk | ISUID 14 |
| 15. | 426398A1 | [1] | COUPLING | ISU |
| 85. | 426413A1 | [3] | GASKET | ISU18,8 ID |
| 110. | 426414A1 | [1] | FLANGE NUT | ISUM6 Superseded by part number: 72959554 |
| 121. | 426417A1 | [1] | PIPE | ISU |
| 122. | 426415A1 | [2] | CLIP | ISU |
| 124. | 426418A1 | [2] | BOLT | ISUM8 x 18 |
| 126. | 438172A1 | [2] | GASKET | ISU |
| 128. | 426420A1 | [1] | PIPE | ISU Superseded by part number: 72110411 |
| 199. | 426423A1 | [2] | GASKET | ISU14,2 ID x 19,2 OD Superseded by part number: 289094A1 |
| 216. | 426424A1 | [1] | HYD CONNECTOR | ISU Superseded by part number: 71455631 |
| 339. | 443720A1 | [1] | GASKET | ISU Superseded by part number: 72110428 |
