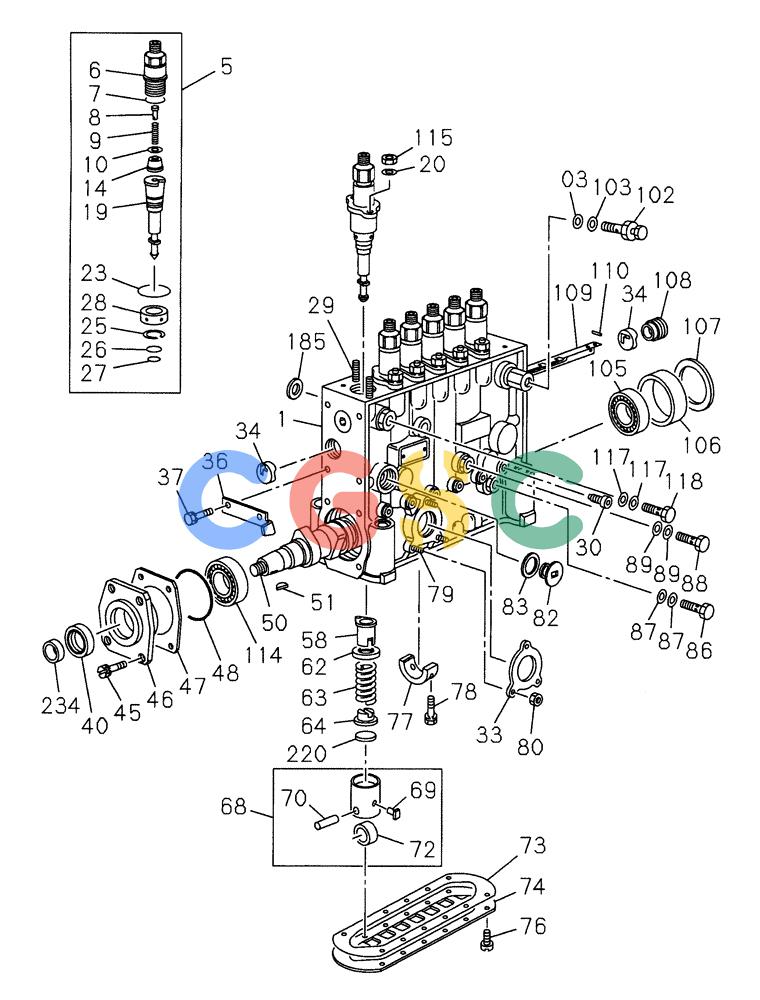

纽荷兰零件查询(E805) - CRAWLER EXCAVATOR (1/05-) (03-017-01[01]) - INJECTION PUMP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
255 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 443959A1 | [1] | HOUSING | ISU |
| 5. | 443960A1 | [6] | PLUNGER ASSY. | ISU |
| 6. | 443961A1 | [6] | HOLDER | ISU |
| 7. | 443962A1 | [6] | GASKET | ISU |
| 8. | 443963A1 | [6] | STOP | ISU |
| 9. | 443964A1 | [6] | SPRING | ISU |
| 10. | 443965A1 | [6] | GASKET | ISU |
| 14. | 443966A1 | [6] | VALVE | ISU |
| 19. | 443967A1 | [6] | PLUNGER | ISU |
| 20. | 440184A1 | [12] | WASHER | ISU |
| 23. | 443968A1 | [6] | GASKET | ISU |
| 25. | 440345A1 | [6] | RING | ISU |
| 26. | 440167A1 | [6] | GASKET | ISU |
| 28. | 443969A1 | [6] | DEFLECTOR | ISU |
| 28. | 440185A1 | [1] | SHIM | ISU |
| 28. | 440186A1 | [1] | SHIM | ISU |
| 28. | 440187A1 | [1] | SHIM | ISU |
| 28. | 440188A1 | [1] | SHIM | ISU |
| 28. | 440189A1 | [1] | SHIM | ISU |
| 28. | 440190A1 | [1] | SHIM | ISU |
| 28. | 440191A1 | [1] | SHIM | ISU |
| 28. | 440192A1 | [1] | SHIM | ISU |
| 28. | 440193A1 | [1] | SHIM | ISU |
| 28. | 440194A1 | [1] | SHIM | ISU |
| 28. | 440195A1 | [1] | SHIM | ISU |
| 28. | 440196A1 | [1] | SHIM | ISU |
| 28. | 440197A1 | [1] | SHIM | ISU |
| 28. | 440198A1 | [1] | SHIM | ISU |
| 28. | 440199A1 | [1] | SHIM | ISU |
| 28. | 440200A1 | [1] | SHIM | ISU |
| 28. | 440201A1 | [1] | SHIM | ISU |
| 28. | 440202A1 | [1] | SHIM | ISU |
| 28. | 440203A1 | [1] | SHIM | ISU |
| 28. | 440204A1 | [1] | SHIM | ISU |
| 28. | 440205A1 | [1] | SHIM | ISU |
| 28. | 440206A1 | [1] | SHIM | ISU |
| 28. | 440207A1 | [1] | SHIM | ISU |
| 28. | 440208A1 | [1] | SHIM | ISU |
| 28. | 440209A1 | [1] | SHIM | ISU |
| 28. | 440210A1 | [1] | SHIM | ISU |
| 28. | 440211A1 | [1] | SHIM | ISU |
| 28. | 440212A1 | [1] | SHIM | ISU |
| 28. | 440213A1 | [1] | SHIM | ISU |
| 28. | 440214A1 | [1] | SHIM | ISU |
| 28. | 440215A1 | [1] | SHIM | ISU |
| 28. | 440216A1 | [1] | SHIM | ISU |
| 28. | 440217A1 | [1] | SHIM | ISU |
| 28. | 440218A1 | [1] | SHIM | ISU |
| 28. | 440219A1 | [1] | SHIM | ISU |
| 28. | 440220A1 | [1] | SHIM | ISU |
| 28. | 440221A1 | [1] | SHIM | ISU |
| 28. | 440222A1 | [1] | SHIM | ISU |
| 28. | 440223A1 | [1] | SHIM | ISU |
| 28. | 440224A1 | [1] | SHIM | ISU |
| 28. | 440225A1 | [1] | SHIM | ISU |
| 28. | 440226A1 | [1] | SHIM | ISU |
| 28. | 440227A1 | [1] | SHIM | ISU |
| 28. | 440228A1 | [1] | SHIM | ISU |
| 28. | 440229A1 | [1] | SHIM | ISU |
| 28. | 440230A1 | [1] | SHIM | ISU |
| 28. | 440231A1 | [1] | SHIM | ISU |
| 28. | 440232A1 | [1] | SHIM | ISU |
| 28. | 440233A1 | [1] | SHIM | ISU |
| 28. | 440234A1 | [1] | SHIM | ISU |
| 28. | 440235A1 | [1] | SHIM | ISU |
| 28. | 440236A1 | [1] | SHIM | ISU |
| 28. | 440237A1 | [1] | SHIM | ISU |
| 28. | 440238A1 | [1] | SHIM | ISU |
| 28. | 440239A1 | [1] | SHIM | ISU |
| 28. | 440240A1 | [1] | SHIM | ISU |
| 28. | 440241A1 | [1] | SHIM | ISU |
| 28. | 440242A1 | [1] | SHIM | ISU |
| 28. | 440243A1 | [1] | SHIM | ISU |
| 28. | 440244A1 | [1] | SHIM | ISU |
| 29. | 443970A1 | [12] | STUD | ISU |
| 30. | 440330A1 | [6] | PLUG | ISU |
| 33. | 440165A1 | [1] | GASKET | ISU Superseded by part number: 71455526 |
| 34. | 440327A1 | [2] | BUSHING | ISU |
| 36. | 443971A1 | [1] | POINTER | ISU |
| 37. | 443972A1 | [2] | BOLT | ISU |
| 40. | 443973A1 | [1] | SEAL | ISU |
| 45. | 443974A1 | [4] | BOLT | ISU |
| 46. | 443975A1 | [1] | COVER | ISU |
| 47. | 443976A1 | [1] | SPACER | ISU |
| 47. | 443977A1 | [1] | SPACER | ISU |
| 47. | 443978A1 | [1] | SPACER | ISU |
| 47. | 443979A1 | [1] | SPACER | ISU |
| 47. | 443980A1 | [1] | SPACER | ISU |
| 47. | 443981A1 | [1] | SPACER | ISU |
| 47. | 443982A1 | [1] | SPACER | ISU |
| 48. | 443983A1 | [1] | GASKET | ISU |
| 50. | 443984A1 | [1] | CAMSHAFT | ISU |
| 51. | 443985A1 | [1] | KEY | ISU |
| 58. | 443986A1 | [6] | ADJUSTING SLEEVE | ISU |
| 62. | 440331A1 | [6] | SPRING SEAT | ISU |
| 63. | 443987A1 | [6] | SPRING | ISU |
| 64. | 443988A1 | [6] | SPRING SEAT | ISU |
| 68. | 443989A1 | [4] | TAPPET | ISU |
| 68. | 443990A1 | [2] | TAPPET | ISU |
| 69. | 440173A1 | [6] | GUIDE | ISU |
| 70. | 440337A1 | [6] | PIN | ISU |
| 72. | 443991A1 | [6] | ROLLER | ISU |
| 73. | 440176A1 | [1] | GASKET | ISU |
| 74. | 440156A1 | [1] | COVER | ISU |
| 76. | 440157A1 | [12] | BOLT | ISU |
| 77. | 443992A1 | [1] | BEARING HALF | ISU |
| 77. | 443993A1 | [2] | BEARING HALF | ISU |
| 78. | 440340A1 | [6] | BOLT | ISU |
| 79. | 289933A1 | [3] | STUD | ISU |
| 80. | 289625A1 | [3] | NUT | ISU |
| 82. | 440329A1 | [1] | PLUG | ISU |
| 83. | 440158A1 | [1] | GASKET | ISU |
| 86. | 440163A1 | [1] | BOLT | ISU |
| 87. | 426423A1 | [2] | GASKET | ISU Superseded by part number: 289094A1 |
| 88. | 289250A1 | [1] | BOLT | ISU |
| 89. | 289282A1 | [2] | GASKET | ISU Superseded by part number: 289092A1 |
| 102. | 440166A1 | [1] | VALVE | ISU |
| 105. | 440339A1 | [1] | ROLLER BEARING | ISU |
| 106. | 440338A1 | [1] | RING | ISU |
| 107. | 443994A1 | [1] | SPACER | ISU |
| 108. | 440328A1 | [1] | BUSHING | ISU |
| 109. | 440182A1 | [1] | RACK | ISU |
| 110. | 440347A1 | [1] | PIN | ISU |
| 114. | 443995A1 | [1] | BALL BEARING | ISU Superseded by part number: 309085 |
| 118. | 289314A1 | [1] | BOLT | ISU Superseded by part number: 1096750860 |
| 220. | 443996A1 | [6] | SPRING SEAT | ISU |
| 234. | 443997A1 | [1] | ADJUSTING SLEEVE | ISU |
