神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (03-003) - LIGHT INSTAL (BOOM) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
825 次

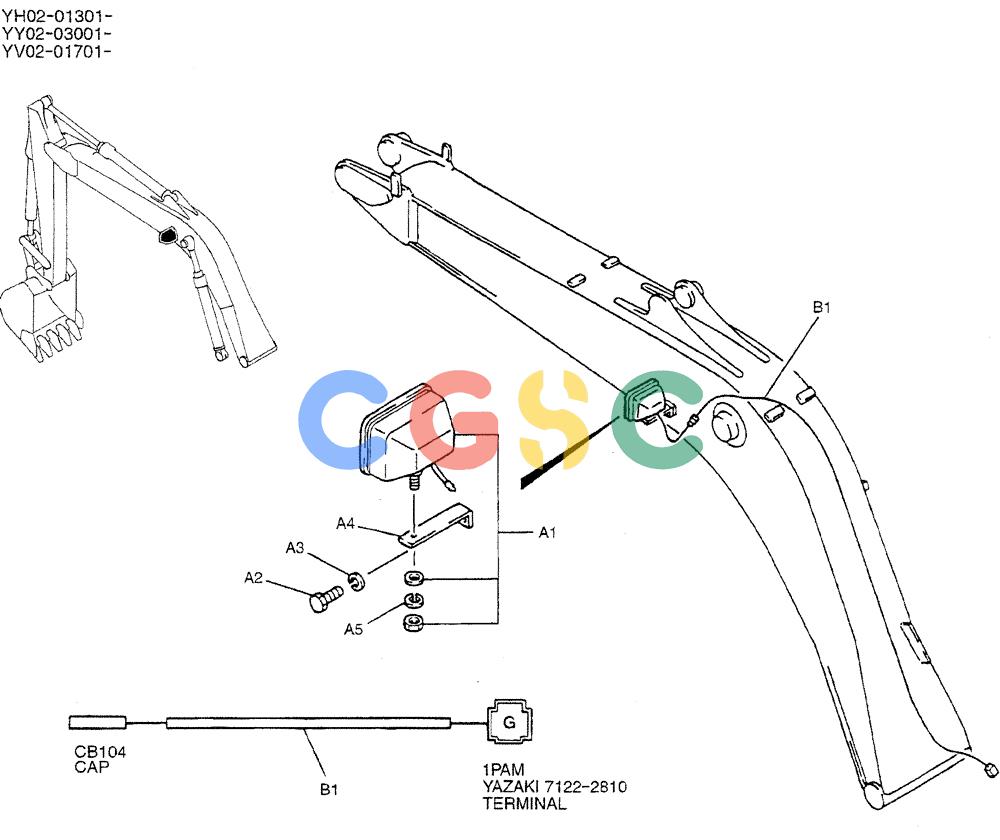

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YV80E00001F1 | [1] | LIGHT ASSY. | KOB |
| A1. | YW80S00001F1 | [1] | LIGHT ASSY. | KOB Superseded by part number: 2456R442F1 |
| A2. | ZS18C10020 | [1] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| A3. | 2418R323D11 | [1] | WASHER | KOBStar -- ID 10 x OD 18 x Th 0.9mm |
| A4. | 2416T13056 | [1] | BRACKET | KOB |
| A5. | 2418R323D13 | [1] | LOCK WASHER | KOBStar -- ID 14 x OD 23 x Th 1.0mm |
| . . | YY15E00001F1 | [1] | HARNESS | KOBASSY,BOOM Superseded by part number: YN15E01005D4 |
| B1. | YN15E01005D4 | [1] | HARNESS | KOB |
