神钢零件查询(ED150-1E) - BLADE RUNNER EXCAVATOR/DOZER ASN YL05-00555 (11/03-12/04) (09-050) - VALVE ASSY, LOCK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
723 次

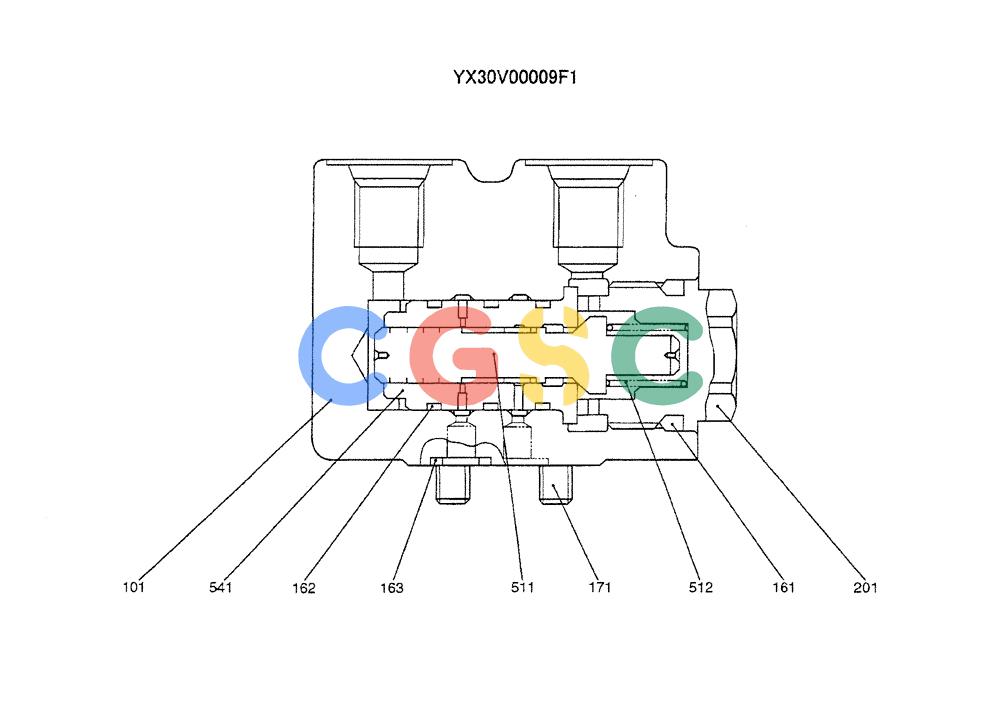

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX30V00009F1 | [1] | LOCK VALVE | KOBASSY, LOCK |
| 101. | NSS | [1] | NOT SOLD SEPARAT | CONBODY |
| 161. | ZD12P02290 | [1] | O-RING | KOB |
| 162. | 2436U2946S9 | [3] | O-RING,13.5mm ID x 20.5mm OD x 1mm Thk | KOB Superseded by part number: YX30V00009S162 |
| 163. | ZD12P00800 | [2] | O-RING,1.9mm Thk x 7.8mm ID, 90 Duro | KOBID 7.8mm x OD 9.7mm |
| 171. | ZS23C06045 | [4] | CAPSCREW,Hex Socket Head, M6 x 45mm | KOBSCREW M06x1.0x45mm |
| 201. | NSS | [1] | NOT SOLD SEPARAT | CONPLUG |
| 511. | NSS | [1] | NOT SOLD SEPARAT | CONSPOOL |
| 512. | NSS | [1] | NOT SOLD SEPARAT | CONSPRING |
| 541. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
