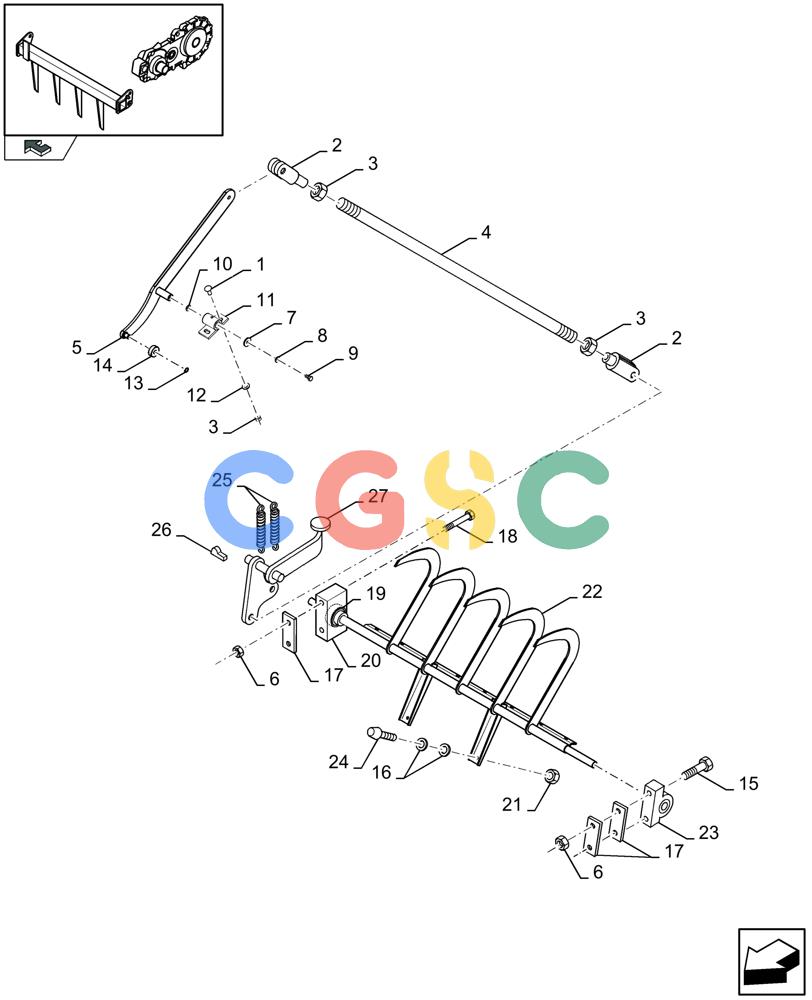

凯斯零件查询(LB333P) - BIG RECTANGULAR BALER 'PACKER CUTTER' (9/08-12/12) (13.25[01]) - FEEDER RETAINERS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
813 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
120044
|
[2] |
CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 2. |
9838297
|
[2] |
CLEVIS,M12
|
ZED
|
| 3. |
9706685
|
[4] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 4. |
87748709
|
[1] |
ROD
|
ZED
, Serial Range: -C851 Superseded by part number: 84286241
|
| 4. |
84286241
|
[1] |
ROD
|
ZED
, Serial Range: -F852888
|
| 4. |
84419866
|
[1] |
ROD
|
ZED
, Start Serial: D889
|
| 5. |
87748639
|
[1] |
LEVER
|
ZED
, Serial Range: -C875 Superseded by part number: 84339959
|
| 5. |
84339959
|
[1] |
LEVER
|
ZED
, Start Serial: D876
|
| 6. |
100037
|
[4] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 7. |
140042
|
[1] |
WASHER,11mm ID x 34mm OD x 3mm Thk
|
GI
|
| 8. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 9. |
43138
|
[1] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8
|
NH
|
| 10. |
84817403
|
[1] |
WASHER,25.5mm ID x 40mm OD x 2.5mm Thk
|
ZED
|
| 11. |
84074872
|
[1] |
HINGE
|
ZED
|
| 12. |
140046
|
[2] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 13. |
NNA301615
|
[1] |
SNAP RING
|
NNA
Superseded by part number: 800-1115
|
| 14. |
84019187
|
[1] |
ROLLER BEARING,15mm ID x 40mm OD x 15.9mm W
|
ZED
|
| 15. |
9706704
|
[2] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 16. |
140041
|
[1] |
WASHER,M8 x 28mm OD x 3mm Thk
|
ZED
Superseded by part number: 9826296
|
| 17. |
84078065
|
[3] |
SHIM,30mm OD x 5mm Thk
|
ZED
|
| 18. |
120075
|
[2] |
BOLT,M10 x 1.5 x 106.58mm, Cl 8.8
|
NH
|
| 19. |
325103
|
[1] |
BALL BEARING,25mm ID x 52mm OD x 15mm W
|
ZED
|
| 20. |
84320579
|
[1] |
BEARING HOUSING
|
ZED
|
| 21. |
9706690
|
[2] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 22. |
84078058
|
[1] |
FORK
|
ZED
|
| 22. |
84817225
|
[1] |
GUIDE
|
ZED
|
| 23. |
84038526
|
[1] |
BEARING CARRIER,25mm ID
|
ZED
|
| 24. |
9839261
|
[2] |
RUBBER BLOCK
|
ZED
|
| 25. |
9839275
|
[2] |
SPRING
|
ZED
Attach to 84074558 Support
|
| 26. |
170025
|
[1] |
KEY
|
ZED
|
| 27. |
84078056
|
[1] |
ARM
|
ZED
|
