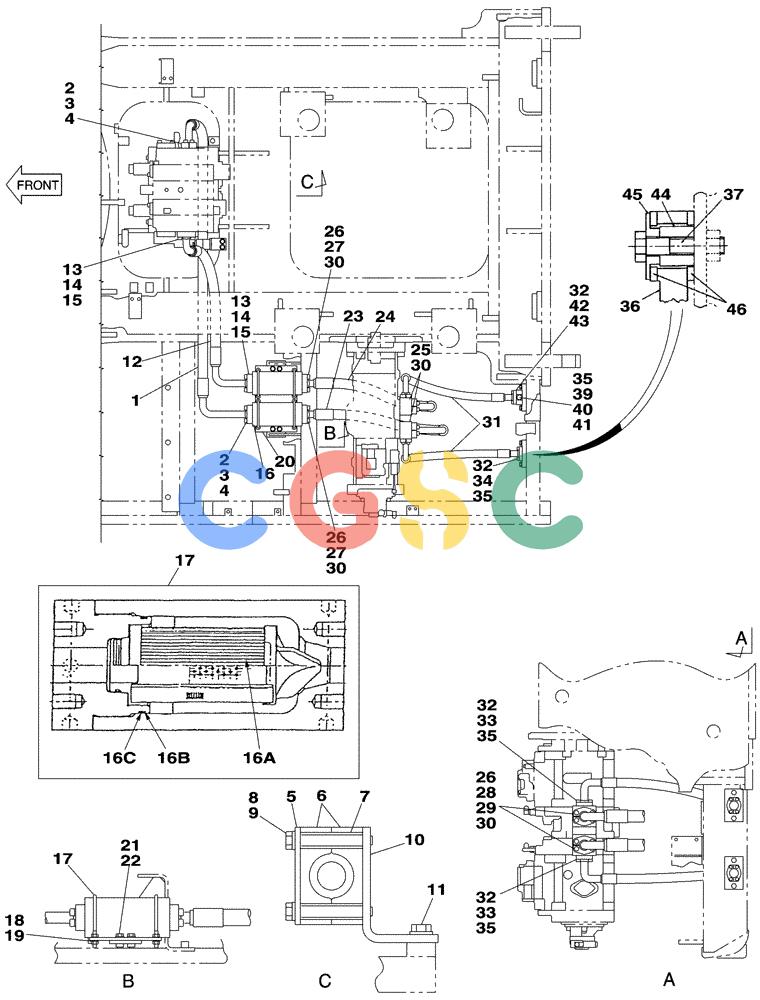

| 1. | KUJ0209 | [1] | HYDRAULIC HOSE,31.8mm ID x 1890mm L | SUM |
| 2. | 150124A1 | [4] | FLANGE | SUM |
| 3. | 108R014Y045R | [8] | BOLT,Hex Skt, M14 x 45mm, Cl 12.9 | SUMM14 x 45 |
| 4. | 164450A1 | [2] | O-RING | SUM |
| 5. | KUJ0034 | [1] | SHEET | SUM |
| 6. | KUJ0035 | [2] | HOSE CLAMP | SUM |
| 7. | KUJ0036 | [2] | SPACER | SUM |
| 8. | 827-10090 | [2] | BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9 | CASM10 x 90; 10,9 Superseded by part number: 828-10090 |
| 9. | 150409A1 | [2] | WASHER | SUM10,5 x 21 x 3,2 mm |
| 10. | KUJ0037 | [1] | BRACKET | SUM |
| 11. | 152718A1 | [2] | BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9 | SUM |
| 12. | KUJ0210 | [1] | HYDRAULIC HOSE,31.8mm ID x 1070mm L | SUM |
| 16. | KUJ0033 | [2] | FILTER | SUM |
| 16A. | KUJ0360 | [1] | FILTER STRAINER | SUM |
| 16B. | 154689A1 | [1] | O-RING | SUM |
| 16C. | 154130A1 | [1] | BACK-UP RING | SUMRING, BACK-UP |
| 17. | KUJ0039 | [4] | U-BOLT | SUM |
| 19. | 162R010VR | [16] | NUT | SUM Superseded by part number: 86500689 |
| 20. | KUJ0352 | [1] | BRACKET | SUM |
| 21. | 627-12035 | [4] | BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd | CAS Superseded by part number: 626-12035 |
| 22. | 150811A1 | [4] | WASHER | SUMM12 Superseded by part number: 86625255 |
| 23. | KUJ0353 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1150.00 mm | SUM |
| 24. | KUJ0311 | [1] | HYDRAULIC HOSE,31.80 mm ID x 1100.00 mm | SUM |
| 25. | KUJ0042 | [2] | MANIFOLD VALVE | SUM |
| 28. | 108R012Y110R | [8] | BOLT | SUMM12 x 110 |
| 31. | KUJ0208 | [2] | HYDRAULIC HOSE,25.40 mm ID x 1050.00 mm | SUM |
| 32. | 153459A1 | [8] | FLANGE | SUM Superseded by part number: 86980728 |
| 33. | 862-10025 | [8] | HEX SOC SCREW,M10 x 25mm, Cl 12.9 | CAS |
| 34. | 862-10030 | [4] | HEX SOC SCREW,M10 x 30mm, Cl 12.9 | CAS Superseded by part number: 87016471 |
| 35. | 155211A1 | [4] | O-RING | SUM Superseded by part number: 86529541 |
| 36. | KUJ0385 | [1] | SHEET | SUM |
| 37. | 827-12060 | [4] | BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9 | CAS Superseded by part number: 43263 |
| 39. | KUJ0290 | [1] | SHEET | SUM |
| 40. | 153105A1 | [1] | PLUG | SUM |
| 41. | 154475A1 | [1] | O-RING | SUM |
| 43. | 862-10065 | [4] | HEX SOC SCREW,M10 x 65mm, Cl 12.9 | CASM10 x 65; 12.9 |
| 44. | KUJ0386 | [2] | SPACER | SUM |
| 45. | 162409A1 | [2] | WASHER | SUM |
| 46. | KHN2061 | [2] | WASHER | SUM |
